OEM Overall Electrical Wiring Diagram (Hybrid)
>>
Overall Electrical Wiring Diagram
>>

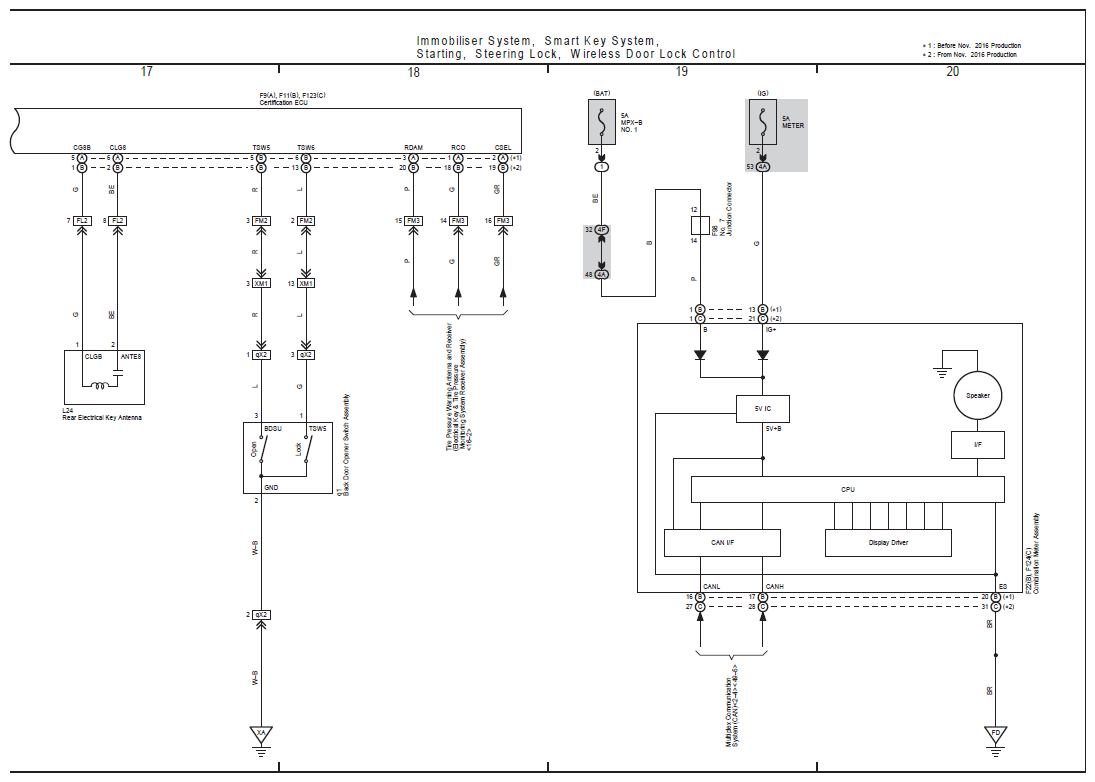

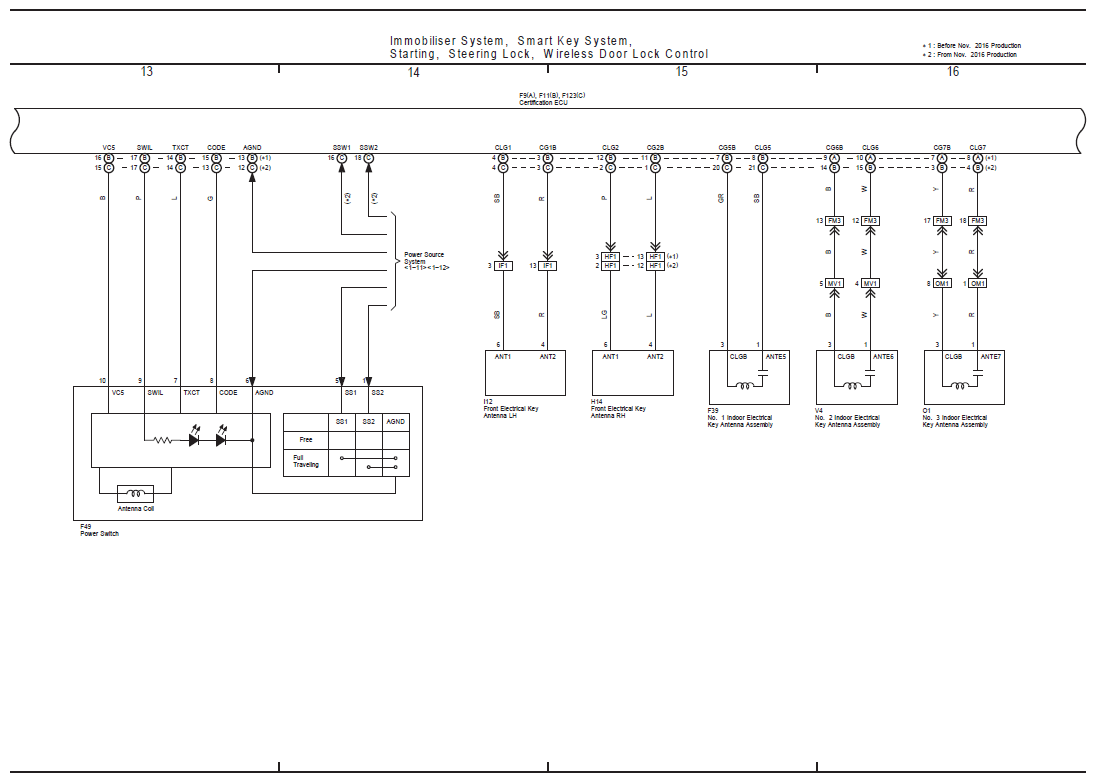

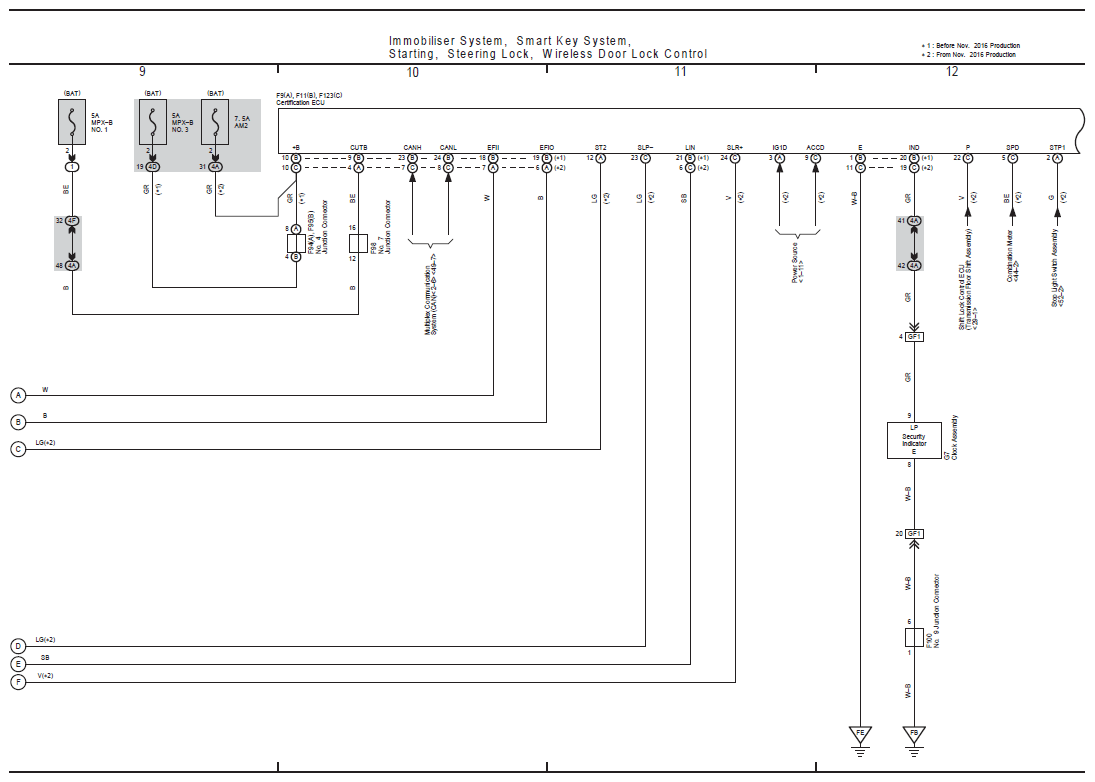

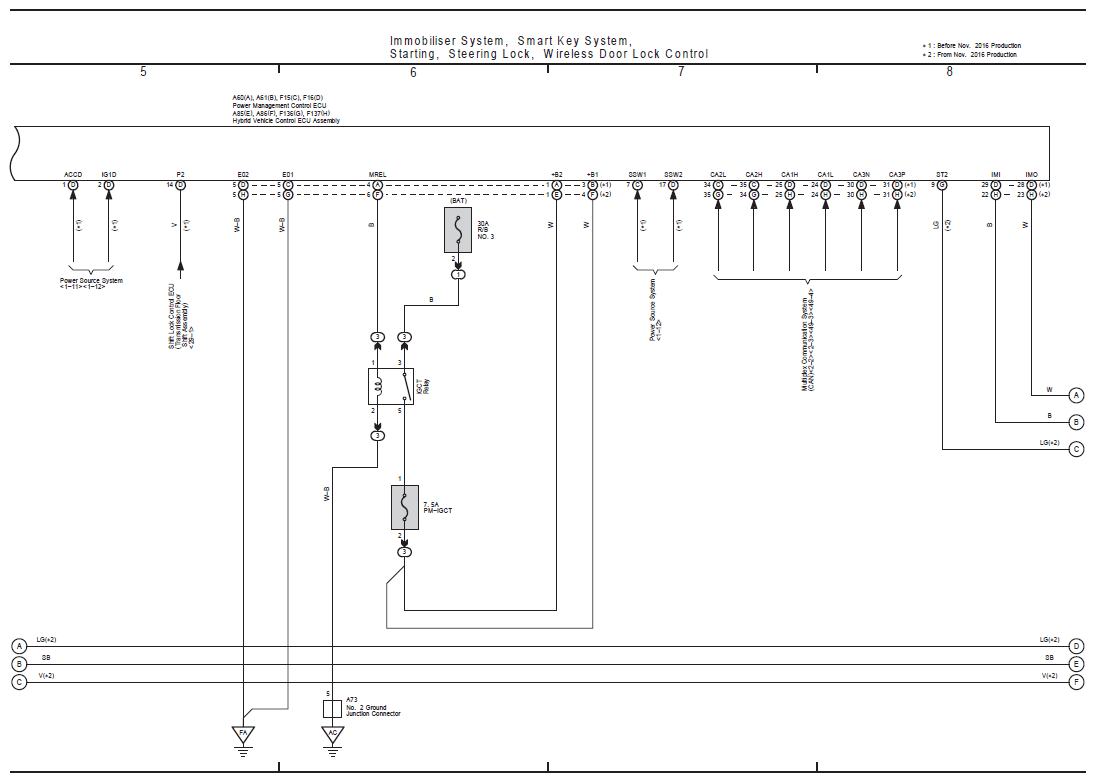

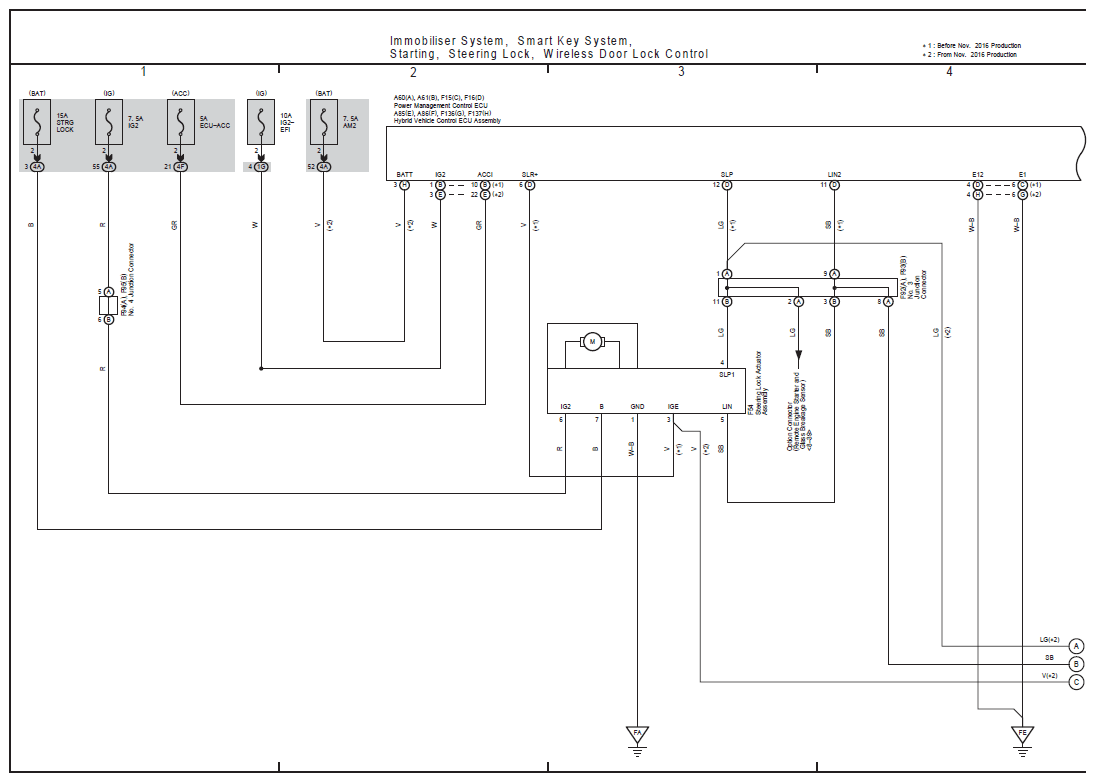

Immobilizer System, Smart Key System, Starting, Steering Lock, Wireless Door Lock Control
Immobilizer System, Smart Key System, Starting, Steering Lock, Wireless Door Lock Control
