OEM Overall Electrical Wiring Diagram (Hybrid)
>>
Overall Electrical Wiring Diagram
>>

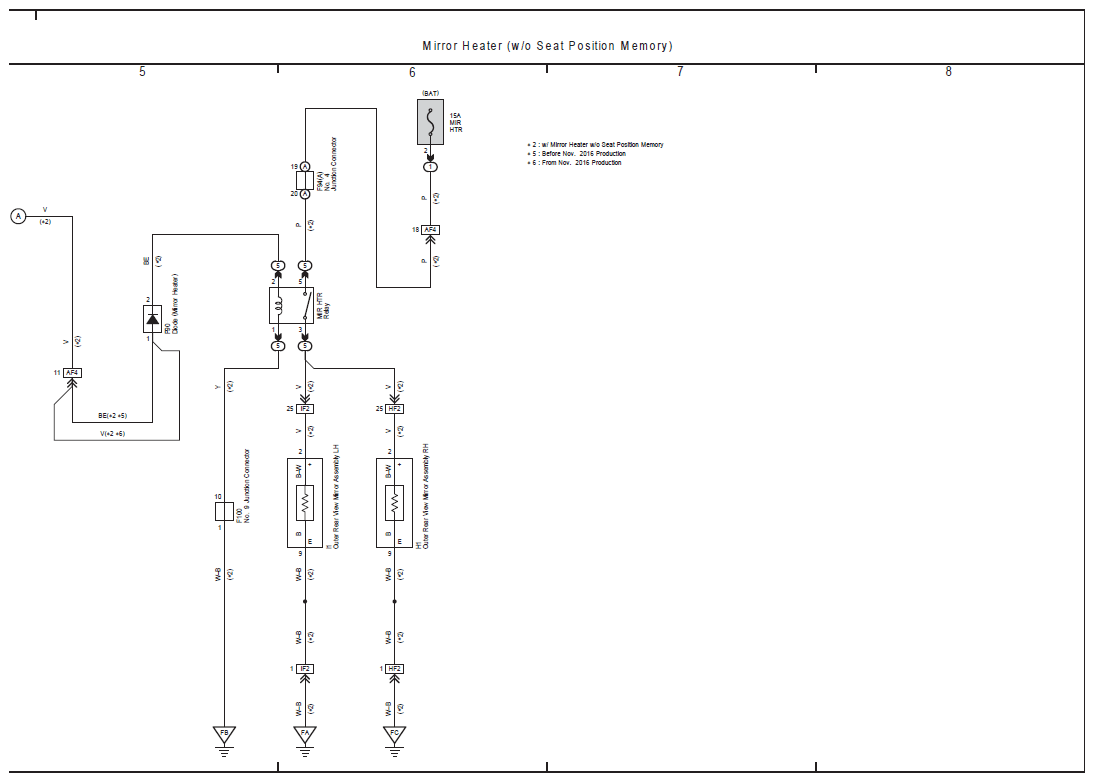

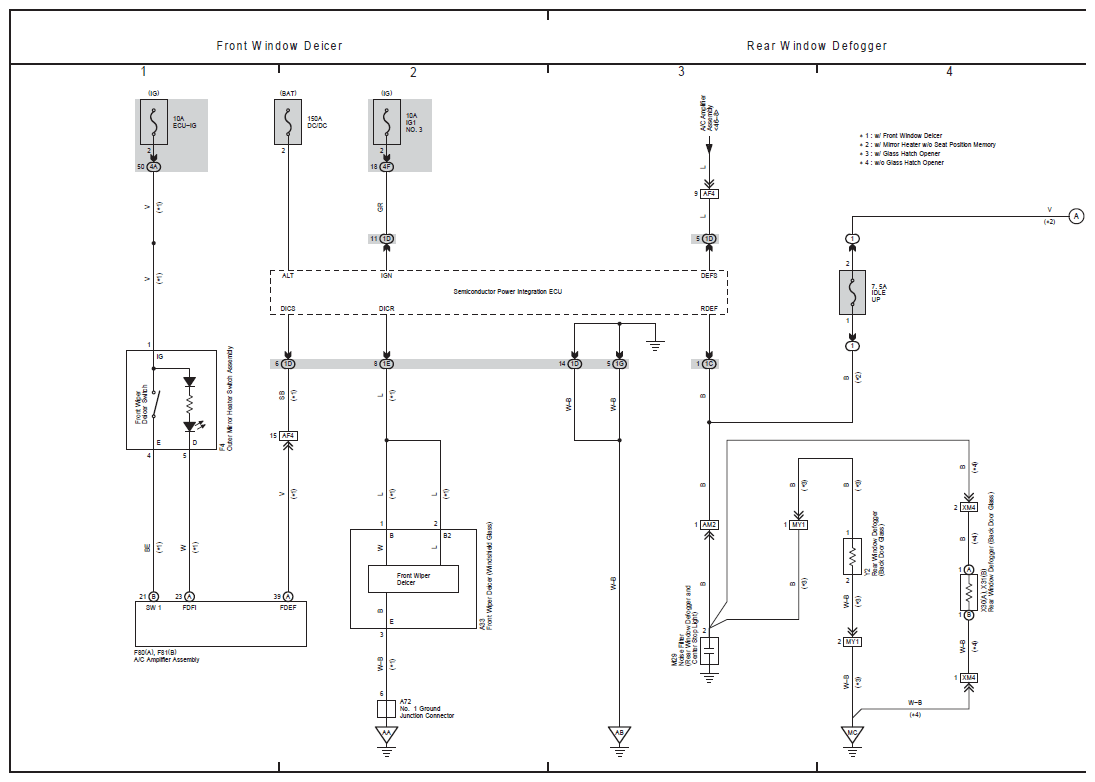

Front Window Deicer, Rear Window Defogger, Mirror Heater (W/O Seat Position Memory)
Front Window Deicer, Rear Window Defogger, Mirror Heater (W/O Seat Position Memory)
