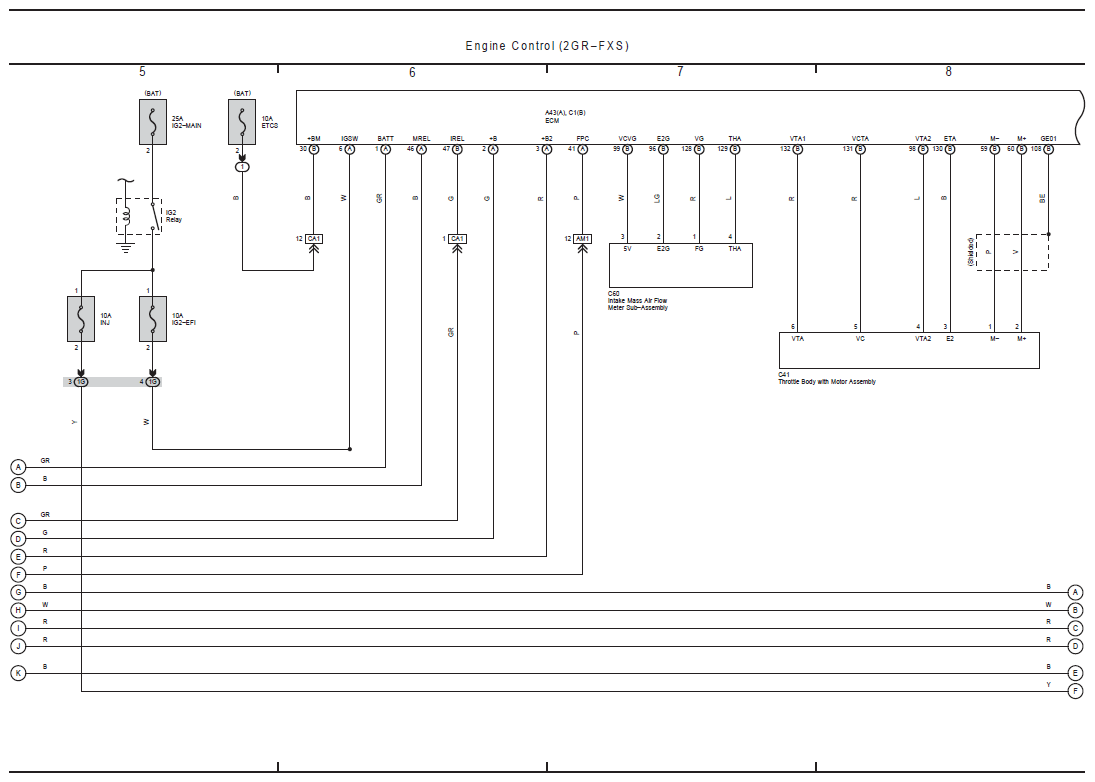

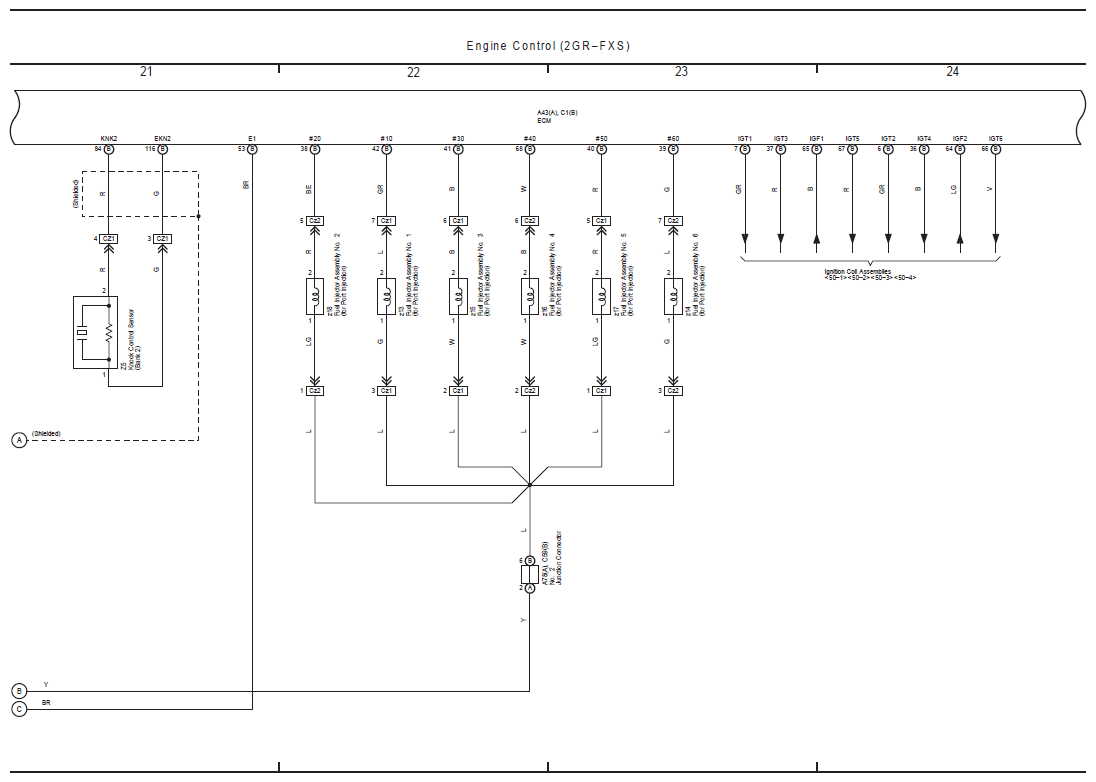

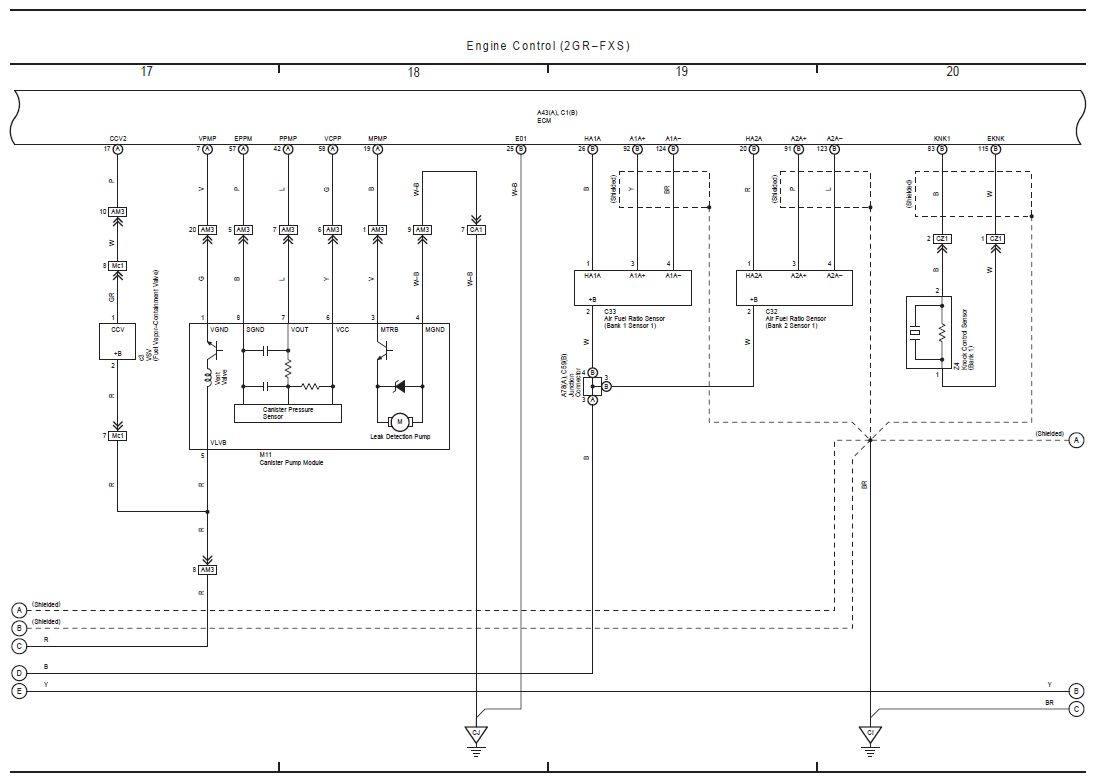

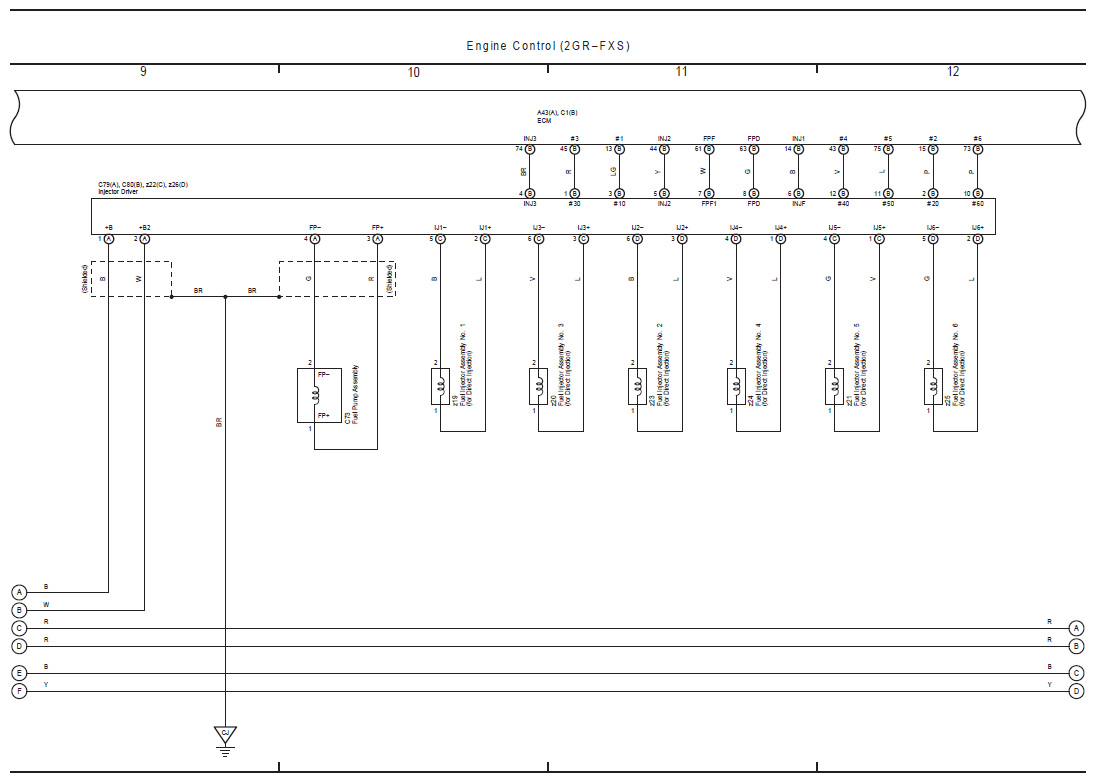

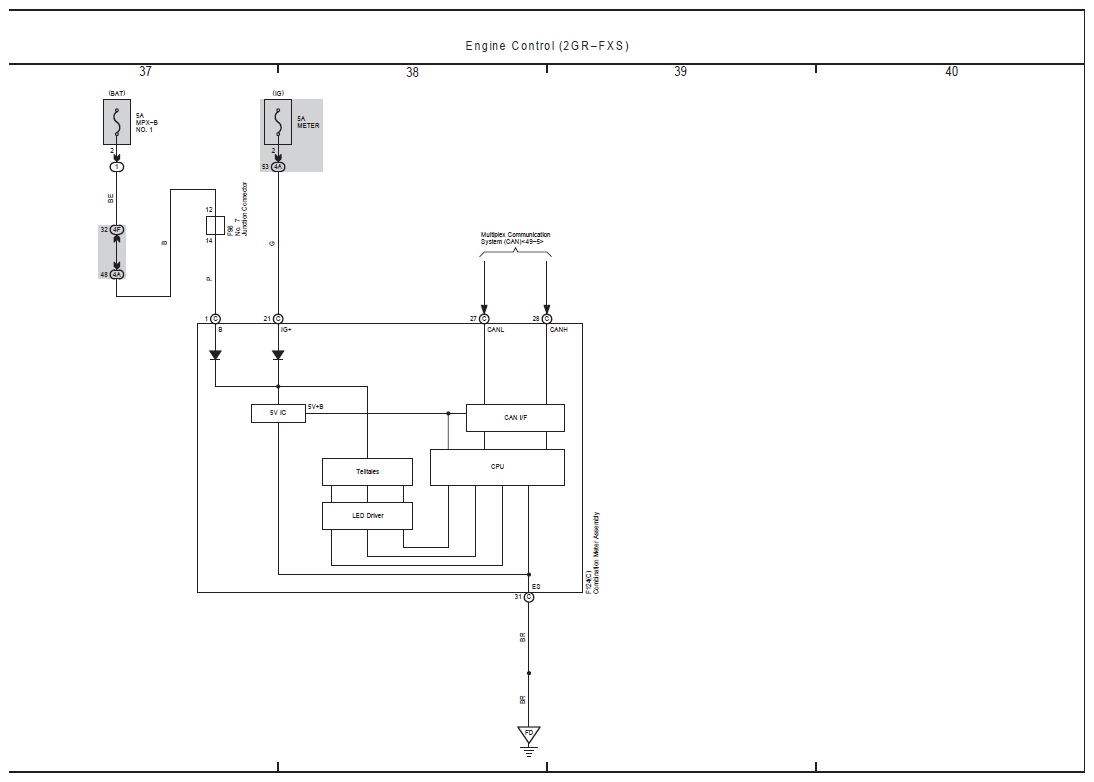

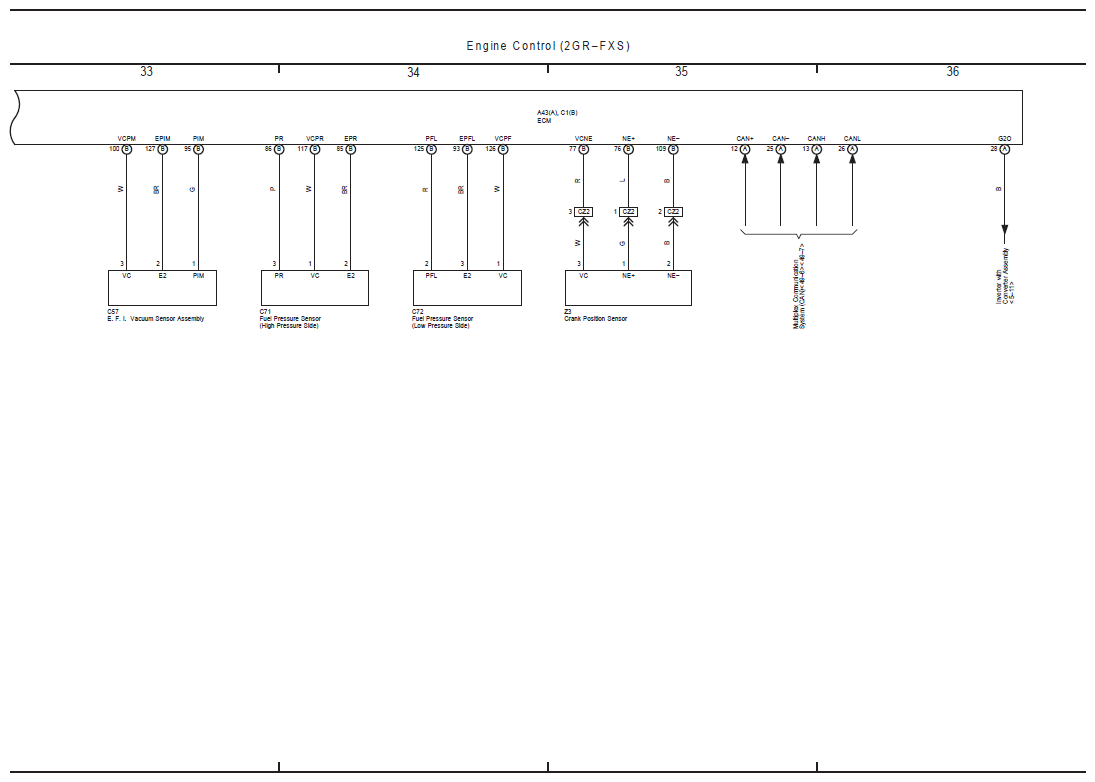

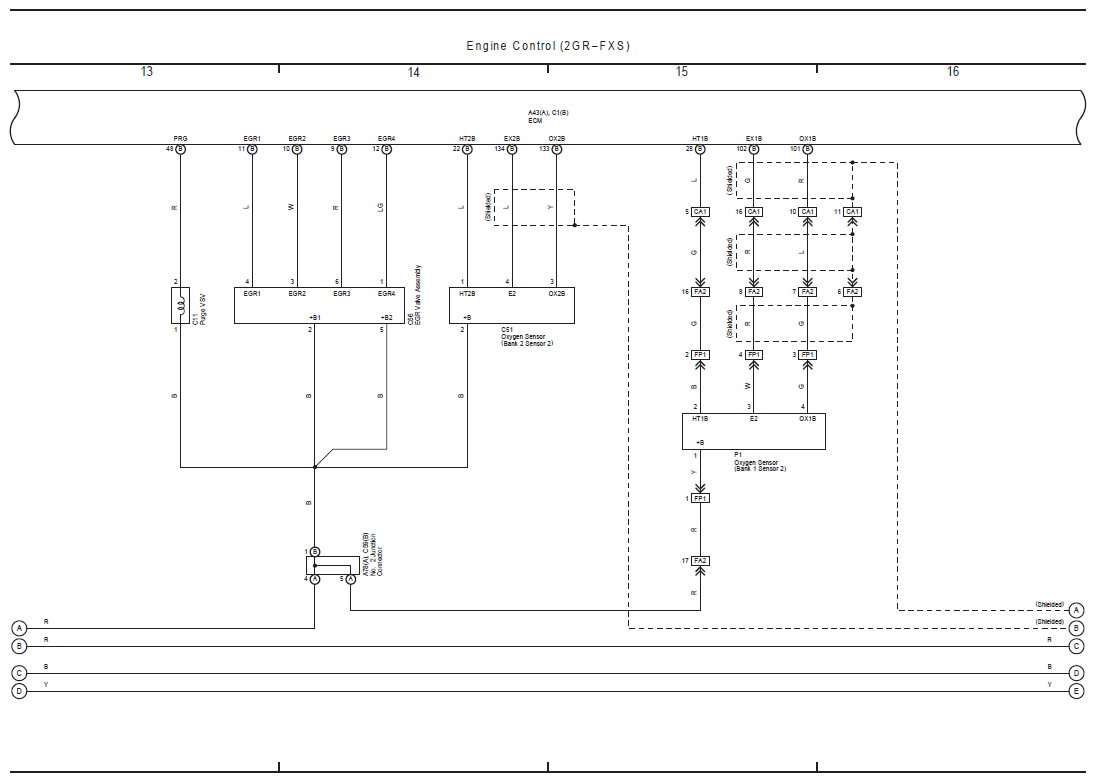

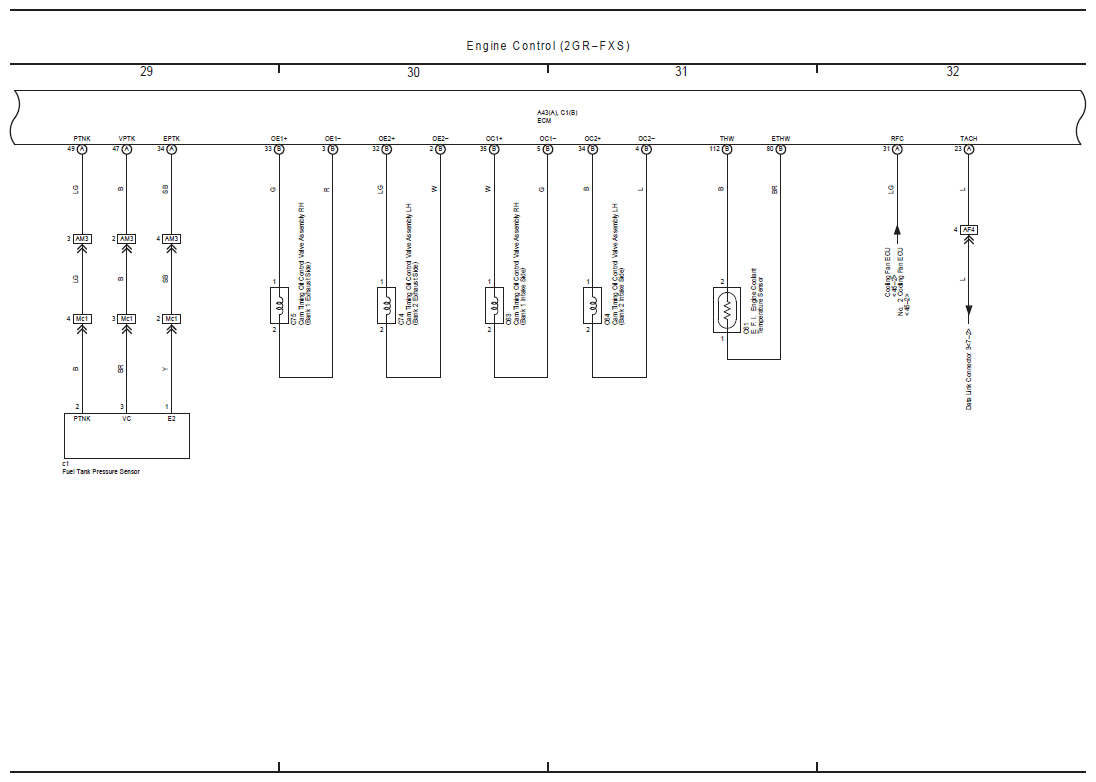

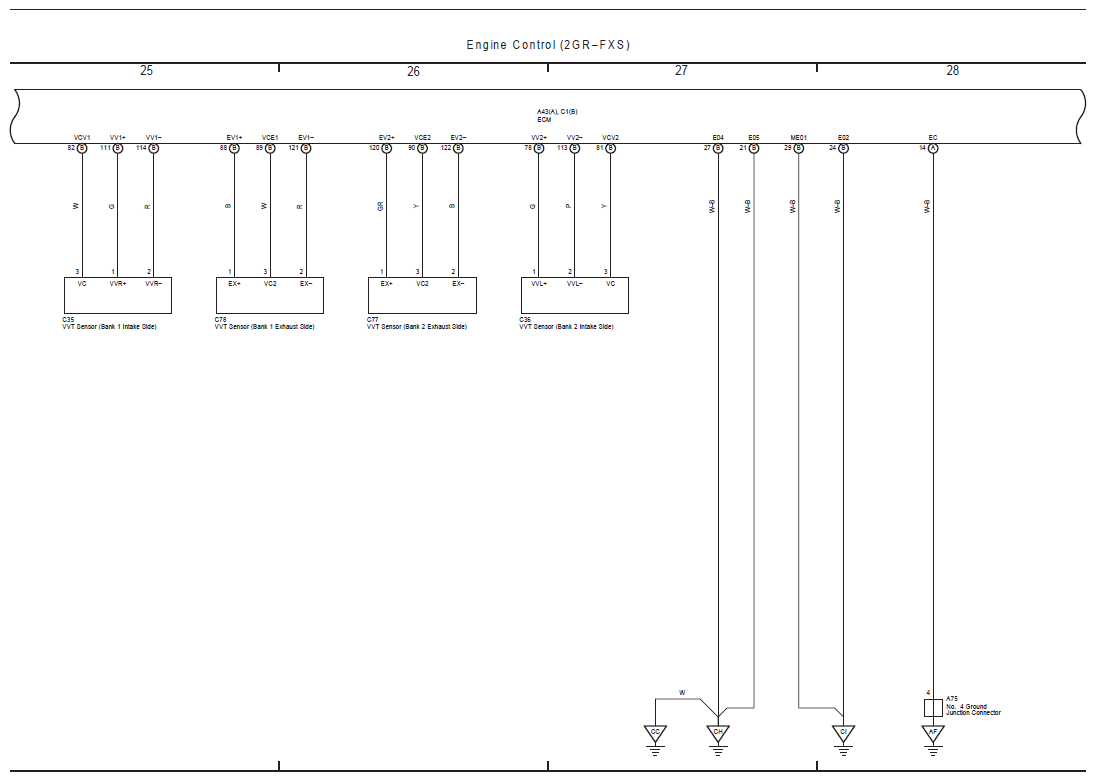

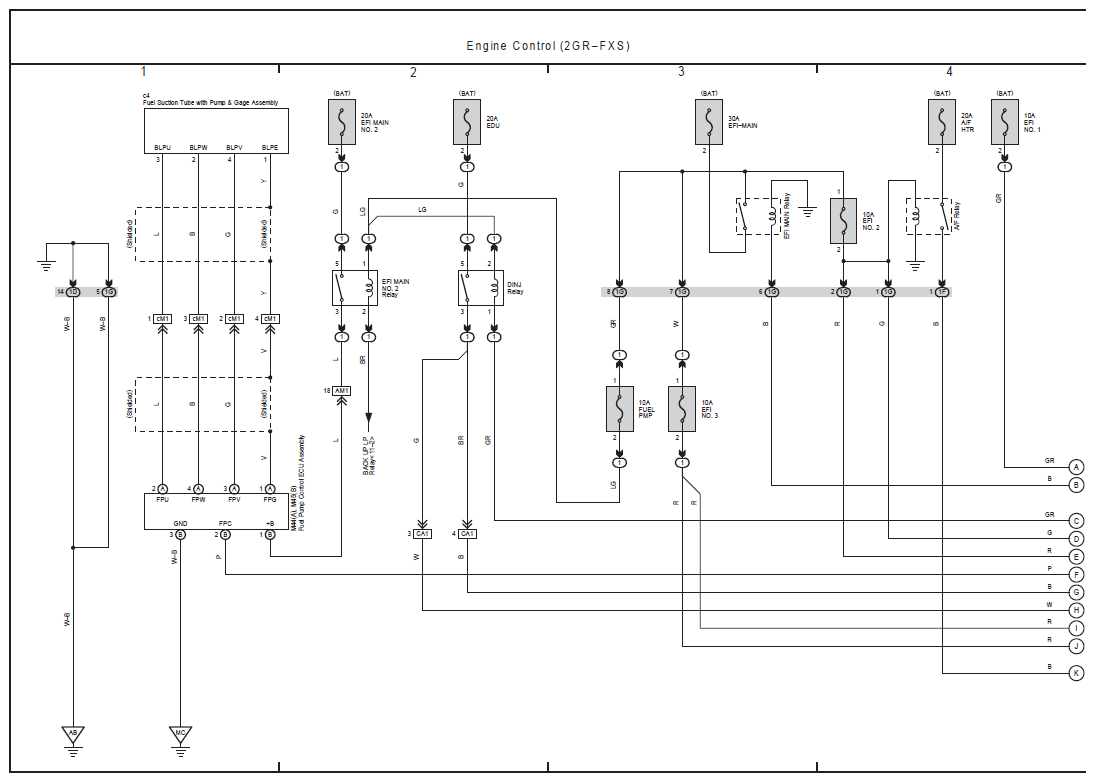

Home >> Toyota >> 2016 >> Highlander Hybrid Limited >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Hybrid) >> Overall Electrical Wiring Diagram >> Engine Control (2GR-FXS)
