Audio System (6 Speaker W/Navigation System), Navigation System (6 Speaker), Rear View Monitor System (W/Navigation System)

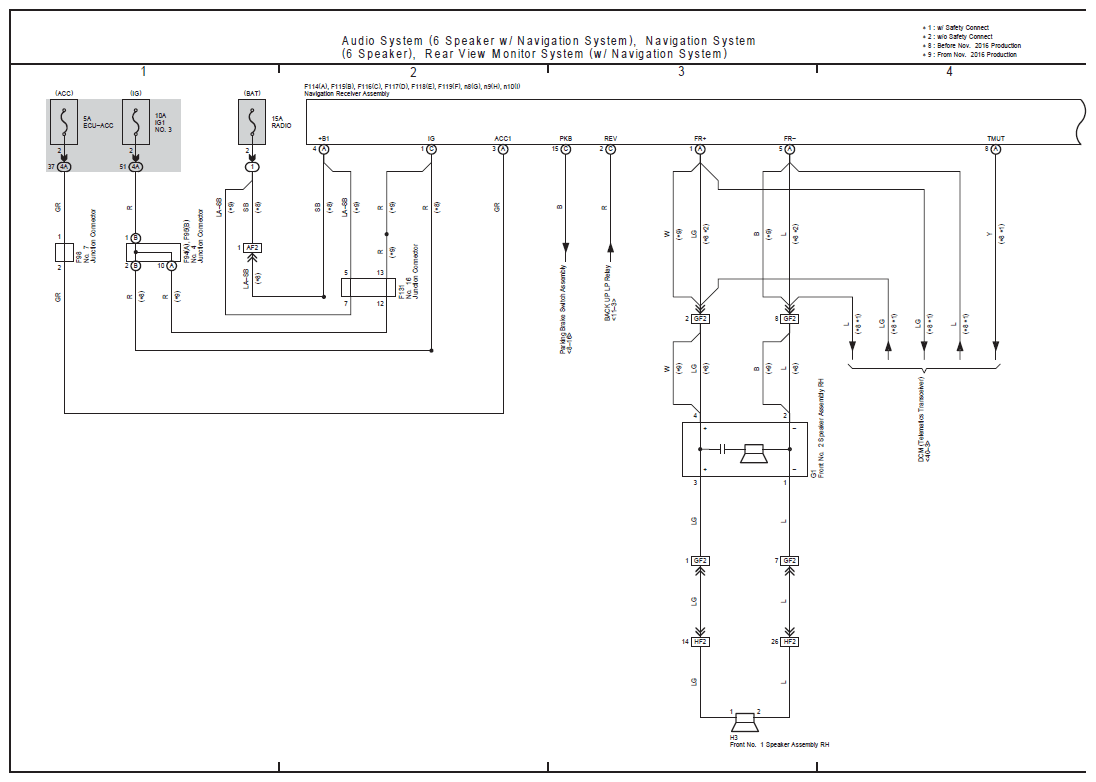

G12230628

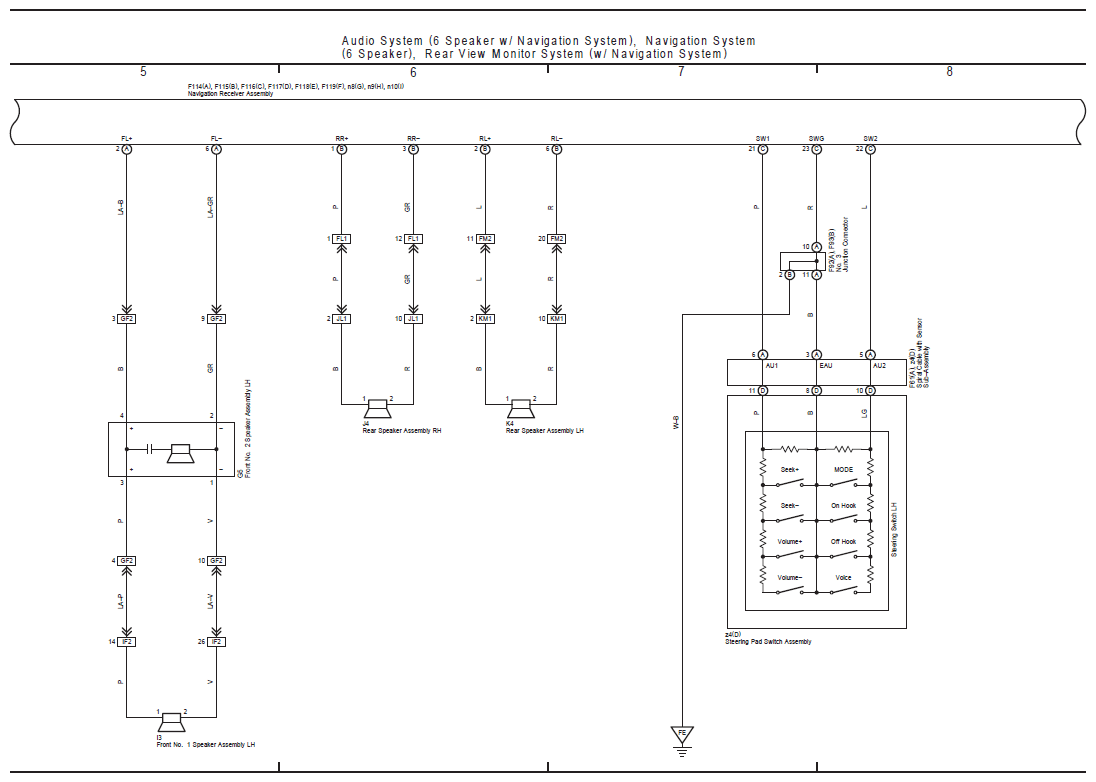

G12230629

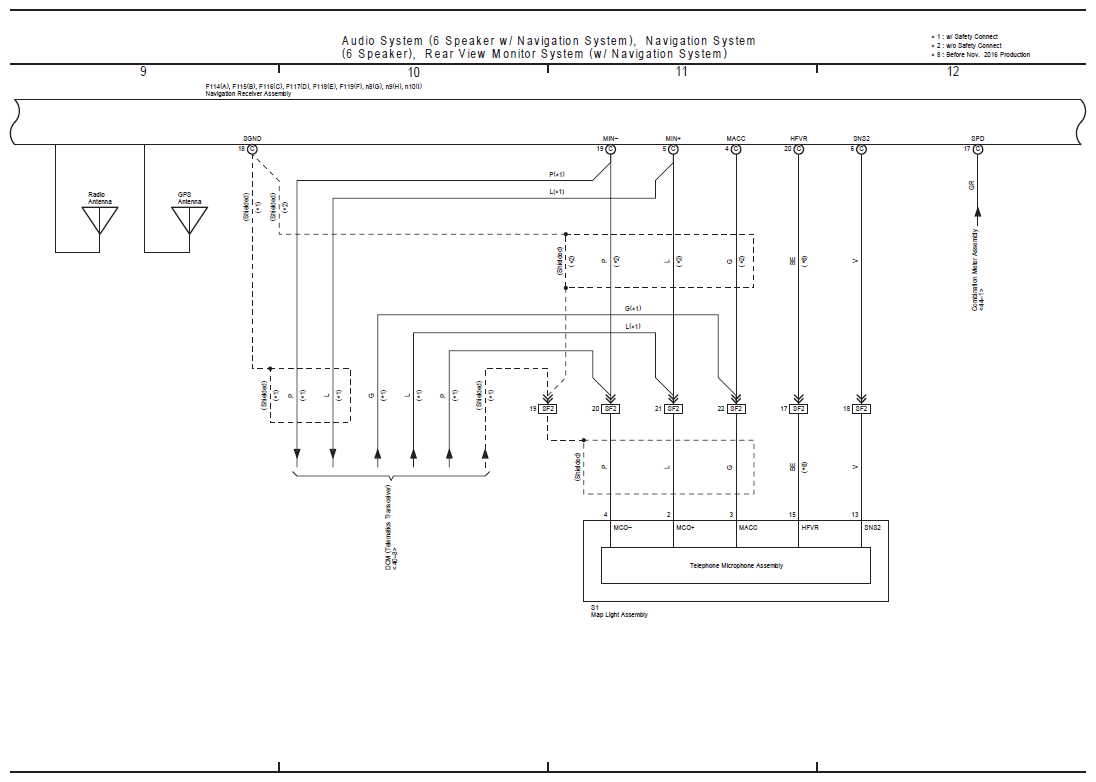

G12230630

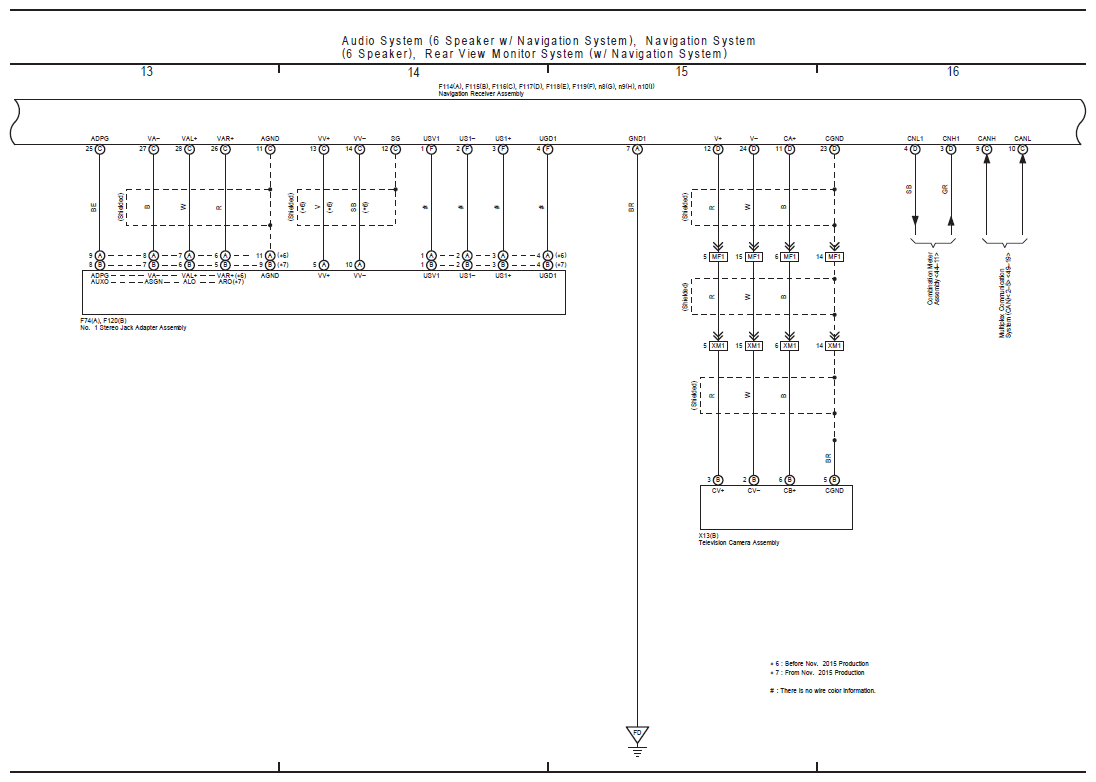

G12230631

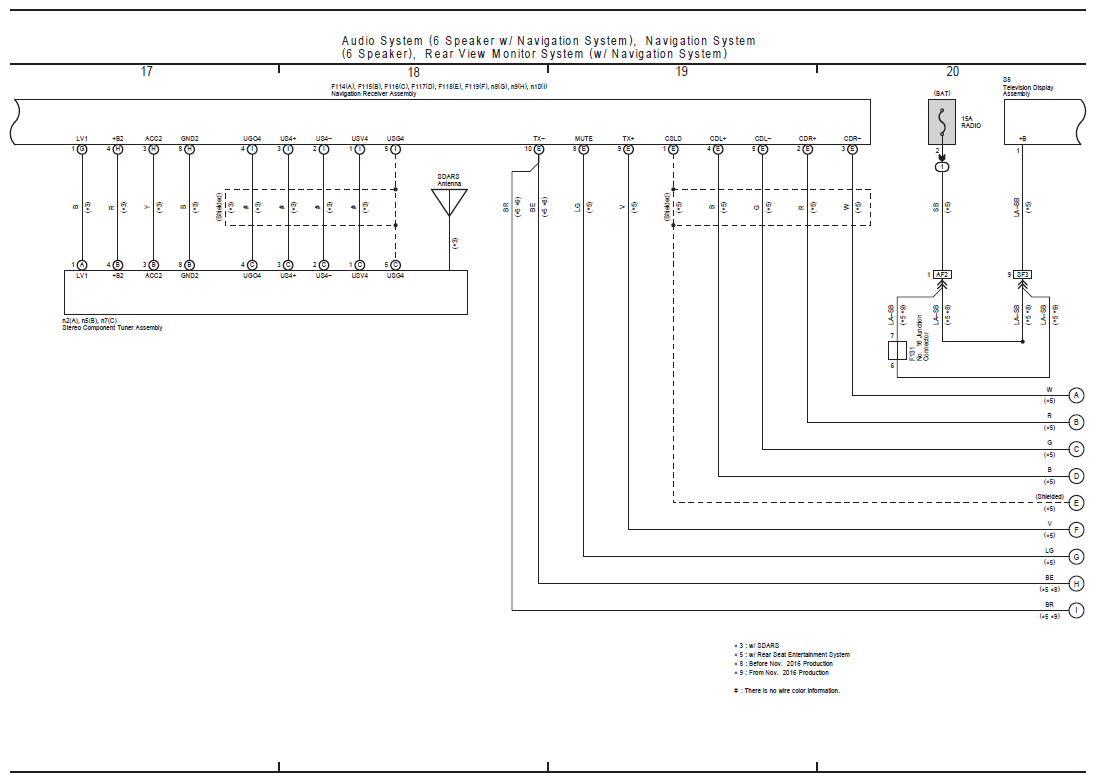

G12230632

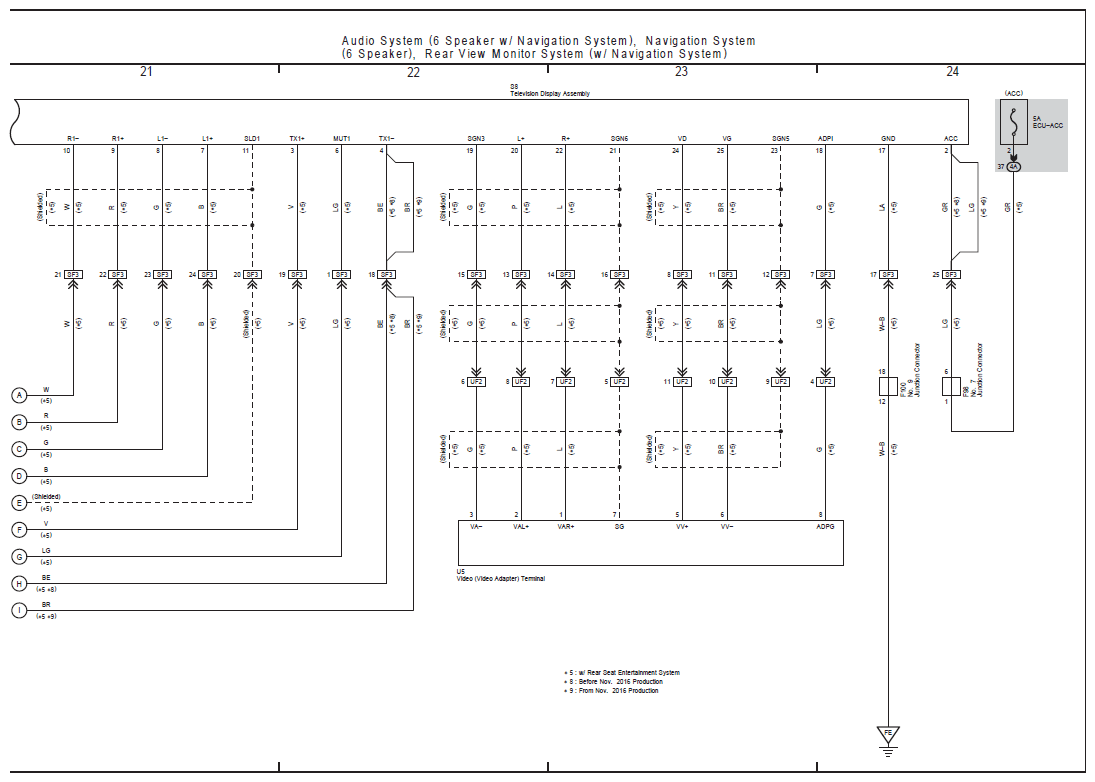

G12230633
