Home >> Toyota >> 2016 >> Highlander Hybrid Limited >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Overall Electrical Wiring Diagram (Hybrid) >> Overall Electrical Wiring Diagram >> Audio System (12 Speaker), Back Guide Monitor System (12 Speaker), Navigation System (12 Speaker)

Audio System (12 Speaker), Back Guide Monitor System (12 Speaker), Navigation System (12 Speaker)

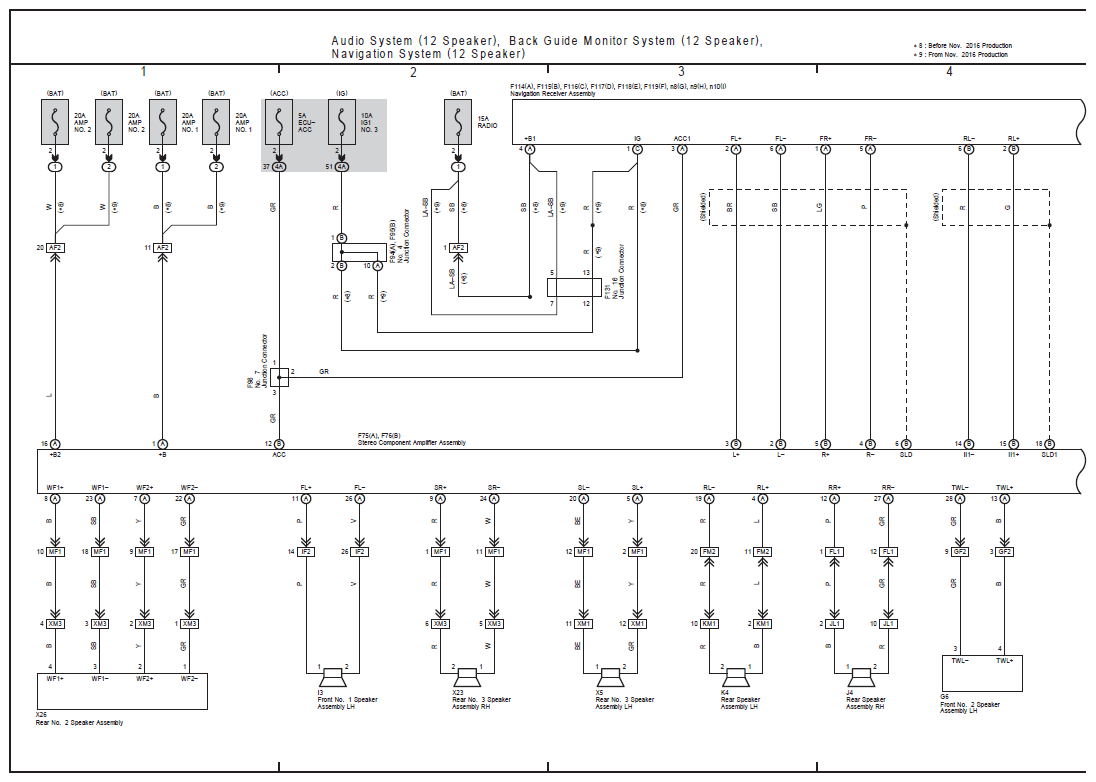

G12230622

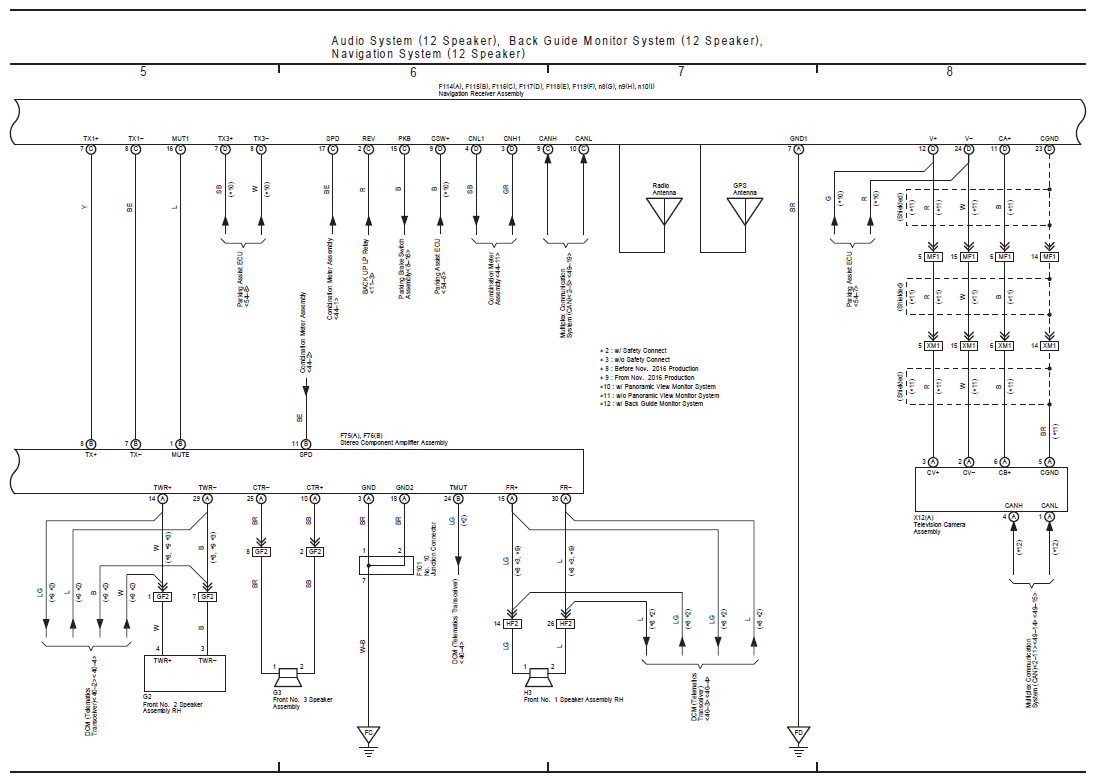

G12230623

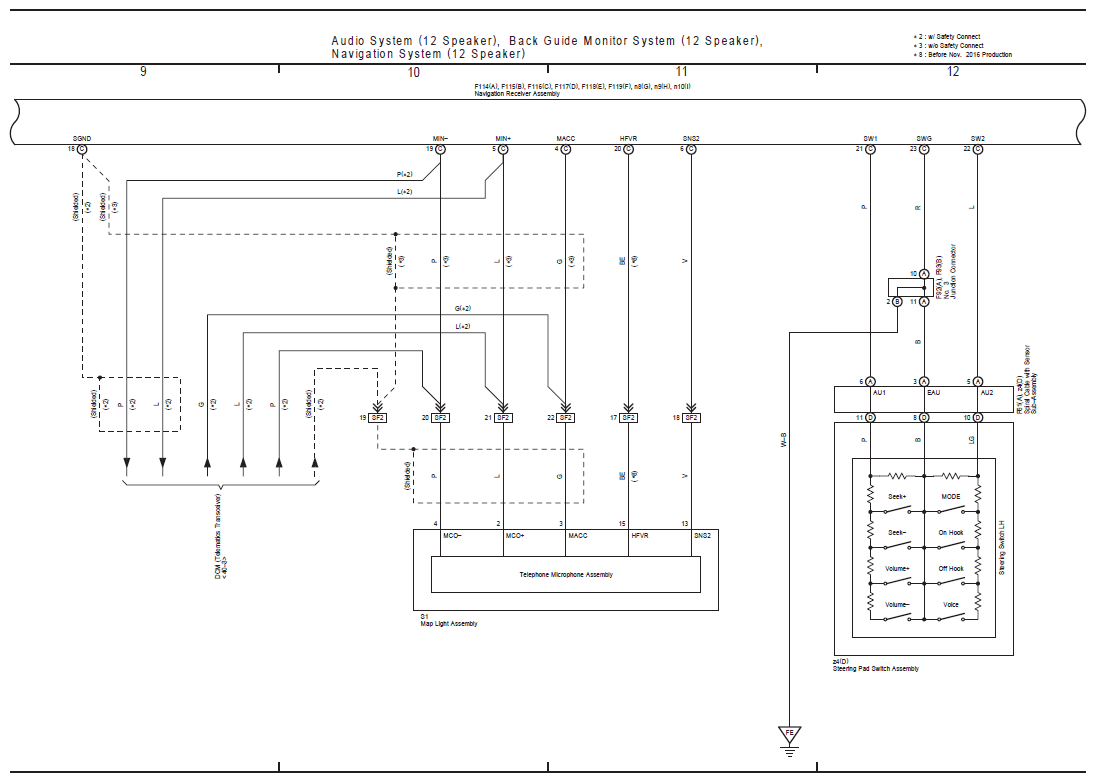

G12230624

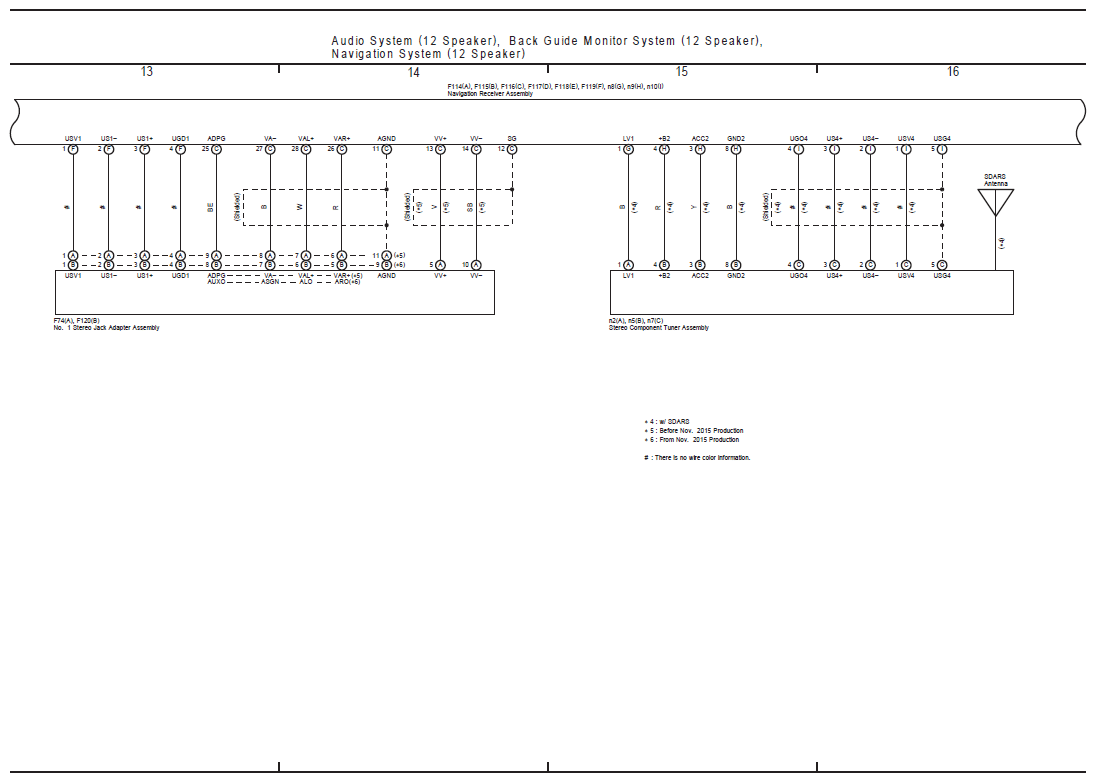

G12230625

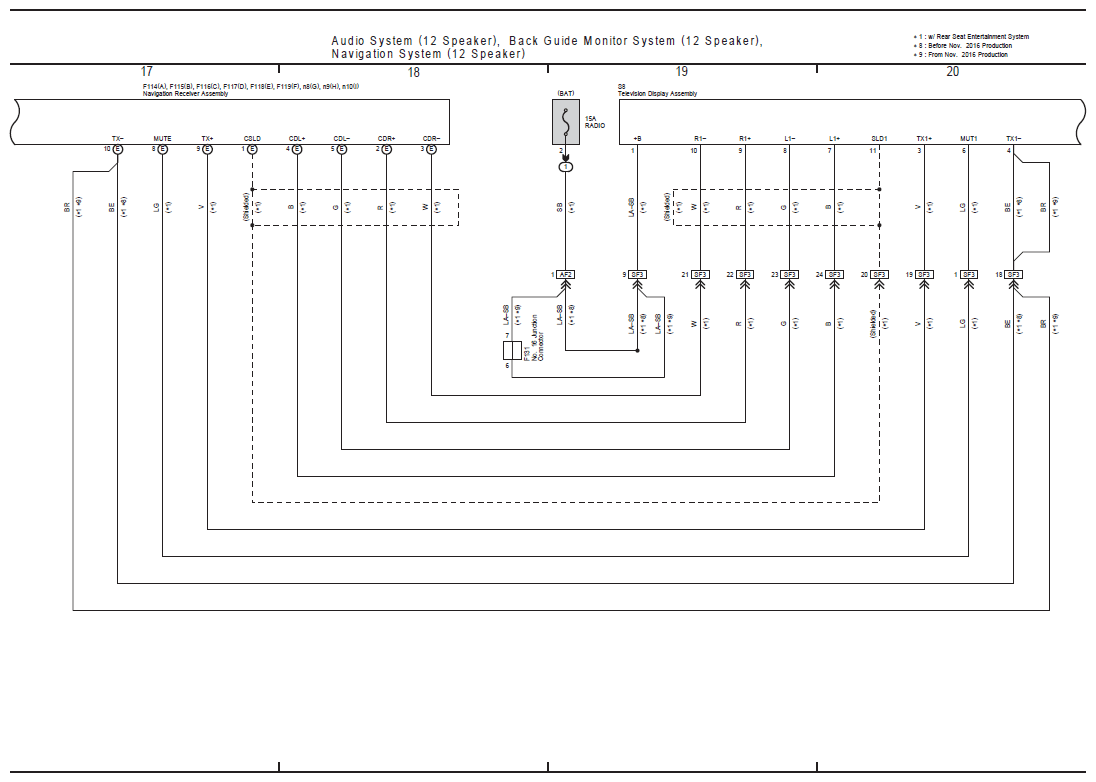

G12230626

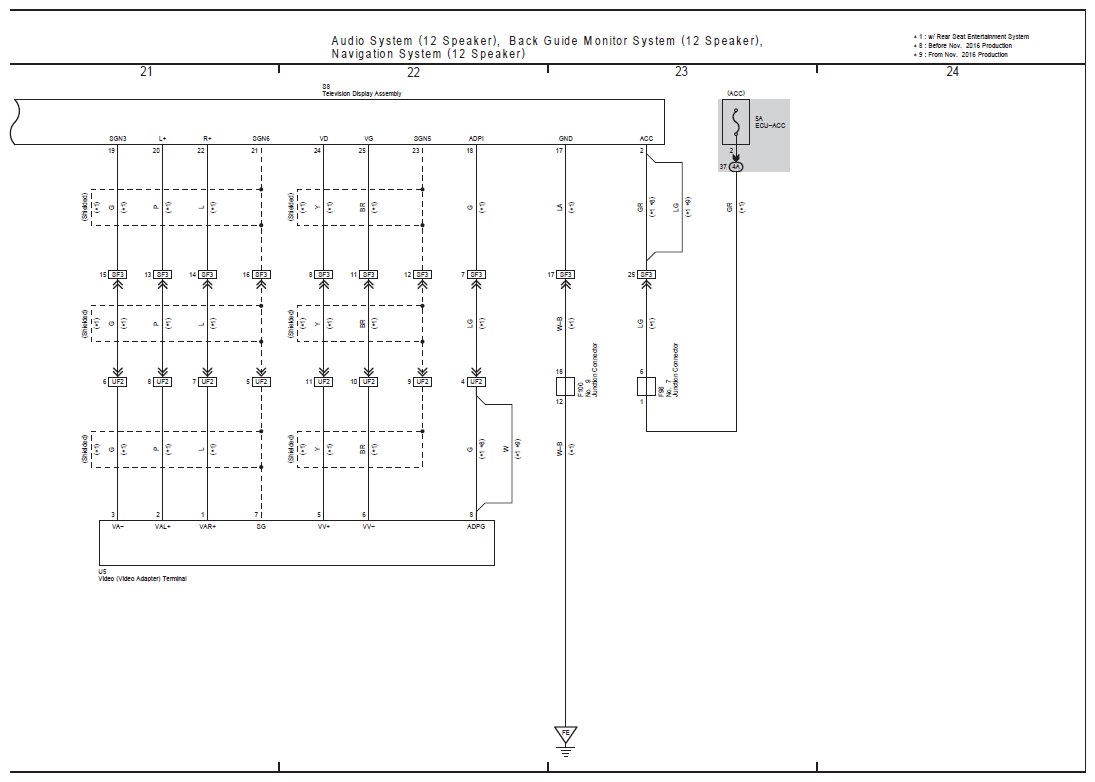

G12230627
