Components [11/2016 - ]: Illustration
| Callout | Description | Callout | Description |
| *1 | OUTER COWL TOP PANEL SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

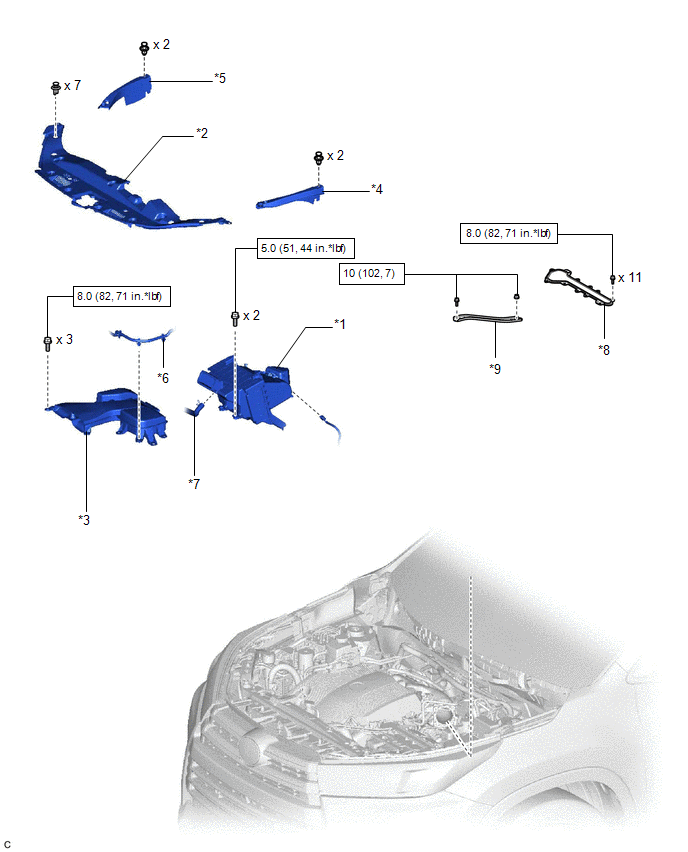

| Callout | Description | Callout | Description |
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | INLET AIR CLEANER ASSEMBLY | *4 | RADIATOR SIDE DEFLECTOR SEAL LH |
| *5 | RADIATOR SIDE SEAL RH | *6 | INVERTER DRAIN HOSE |
| *7 | NO. 2 VENTILATION HOSE | *8 | INVERTER TERMINAL COVER |
| *9 | NO. 3 INVERTER BRACKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

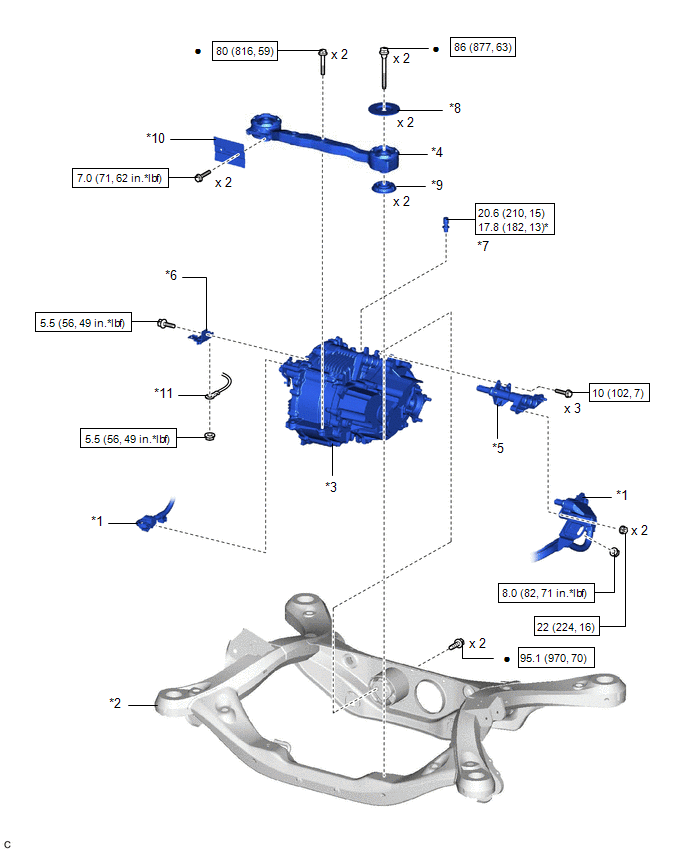

| Callout | Description | Callout | Description |
| *1 | NO. 6 FLOOR WIRE | *2 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
| *3 | REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY | *4 | FRONT DIFFERENTIAL SUPPORT ASSEMBLY |
| *5 | EXTENSION WIRE ASSEMBLY | *6 | WIRE HARNESS CLAMP BRACKET |
| *7 | BREATHER PLUG | *8 | UPPER DIFFERENTIAL MOUNT STOPPER |
| *9 | LOWER DIFFERENTIAL MOUNT STOPPER | *10 | DIFFERENTIAL SUPPORT PROTECTOR |
| *11 | REAR TRACTION MOTOR BOND CABLE ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with a union nut wrench | |
| • | Non-reusable part | - | - |
