Components [02/2014 - 11/2016]: Illustration

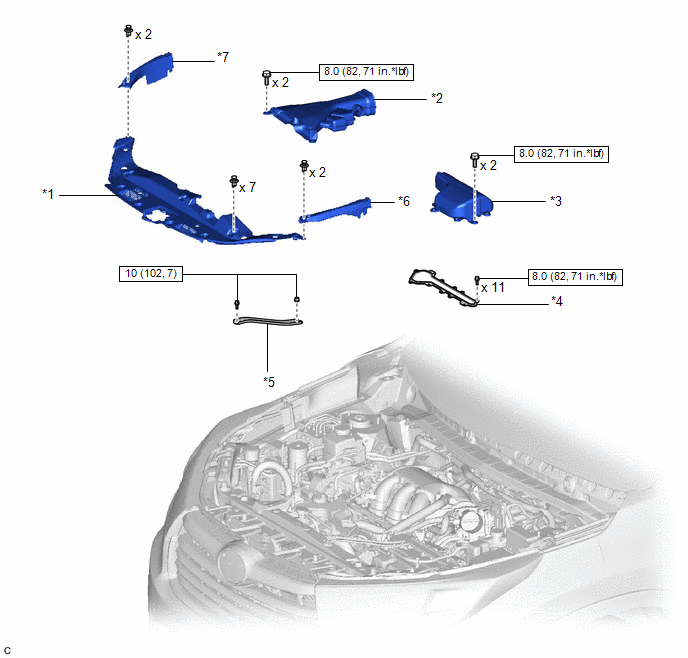

Fig 1: Rear Traction Motor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COOL AIR INTAKE DUCT SEAL	*2	INLET NO. 2 AIR CLEANER
*3	INTAKE AIR RESONATOR SUB-ASSEMBLY	*4	INVERTER TERMINAL COVER
*5	NO. 3 INVERTER BRACKET	*6	RADIATOR SIDE DEFLECTOR SEAL LH
*7	RADIATOR SIDE SEAL RH	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

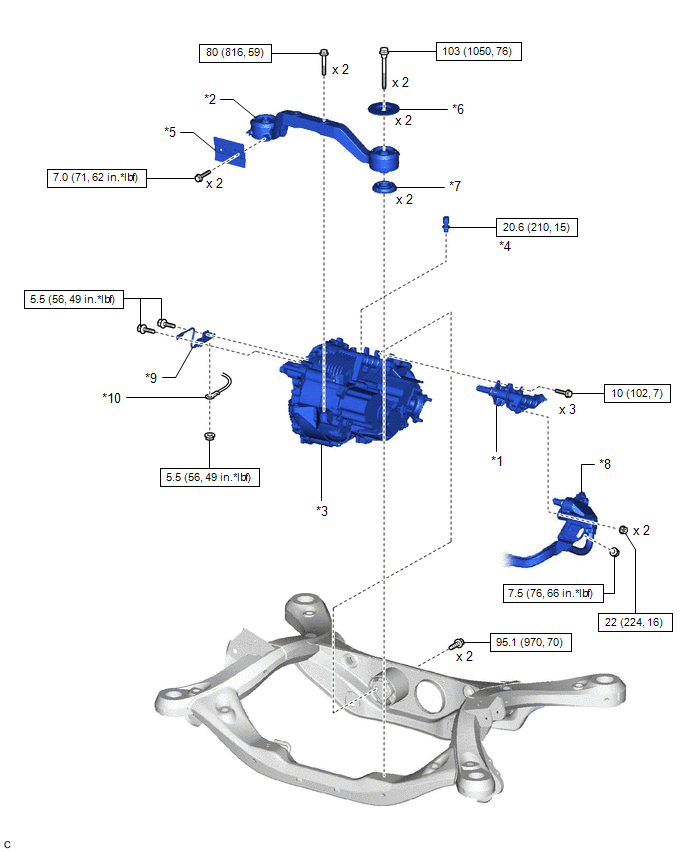

Fig 1: Rear Traction Motor Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	EXTENSION WIRE ASSEMBLY	*2	FRONT DIFFERENTIAL SUPPORT ASSEMBLY
*3	REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY	*4	BREATHER PLUG
*5	FRONT DIFFERENTIAL SUPPORT PROTECTOR	*6	UPPER SUPPORT
*7	LOWER SUPPORT	*8	NO. 6 FLOOR WIRE
*9	NO. 1 REAR TRACTION MOTOR BOND CABLE	*10	NO. 2 REAR TRACTION MOTOR BOND CABLE
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
