Replacement [02/2014 - ]: Procedure

Refer to REMOVAL [02/2014 - ]

1. for LH Side:

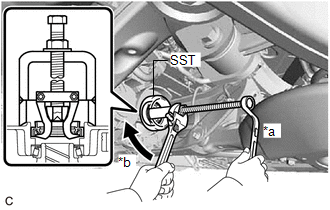

   1. Using SST, remove the rear transaxle side gear oil seal from the rear traction motor with transaxle assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Hold
      *b	Turn

      • SST: 09612-65014
        1. 09612-01020
2. for RH Side:

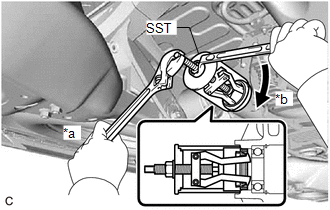

   1. Using SST, remove the rear transaxle side gear oil seal from the rear traction motor with transaxle assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Hold
      *b	Turn

      • SST: 09612-30012

1. for LH Side:
   1. Apply MP grease to the lip of a new rear transaxle side gear oil seal.

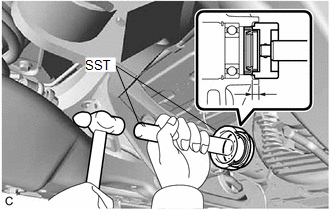

   2. Using SST and a hammer, install the rear transaxle side gear oil seal to the rear traction motor with transaxle assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      • SST: 09316-60011
        1. 09316-00011

      Standard Depth

      7.1 to 8.1 mm (0.280 to 0.318 in.)

      NOTE:

      • Do not install the rear transaxle side gear oil seal at an angle.
      • Do not damage the rear transaxle side gear oil seal.
2. for RH Side:
   1. Apply MP grease to the lip of a new rear transaxle side gear oil seal.

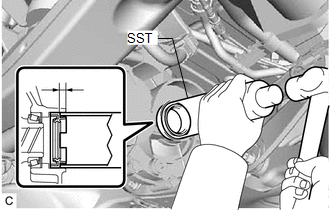

   2. Using SST and a hammer, install the rear transaxle side gear oil seal to the rear traction motor with transaxle assembly.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      • SST: 09350-32014
        1. 09351-32150
      • SST: 09950-70010
        1. 09951-07100

      Standard Depth

      7.1 to 8.1 mm (0.280 to 0.318 in.)

      NOTE:

      • Do not install the rear transaxle side gear oil seal at an angle.
      • Do not damage the rear transaxle side gear oil seal.

Refer to INSTALLATION [02/2014 - ]
