Removal [02/2014 - ]: Procedure

  1. REMOVE HV TRANSAXLE MASS DAMPER

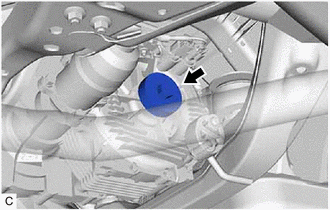

    1. Remove the HV transaxle mass damper and gasket from the rear traction motor with transaxle assembly.
      GTY438631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
