Components [02/2014 - ]: Illustration

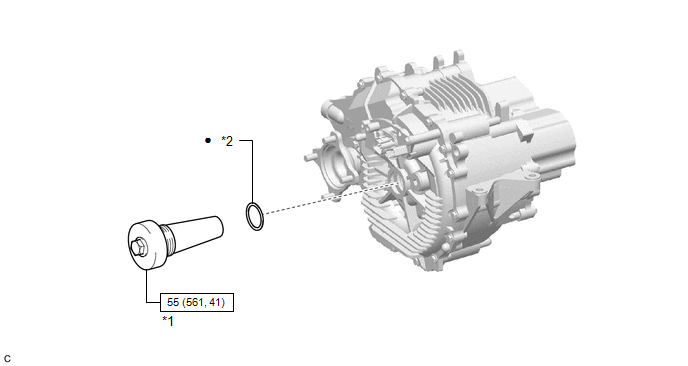

Fig 1: Hybrid Transaxle Mass Damper Replacement Components With Torque Specifications
GTY449762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HV TRANSAXLE MASS DAMPER *2 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
