Components [02/2014 - ]: Illustration

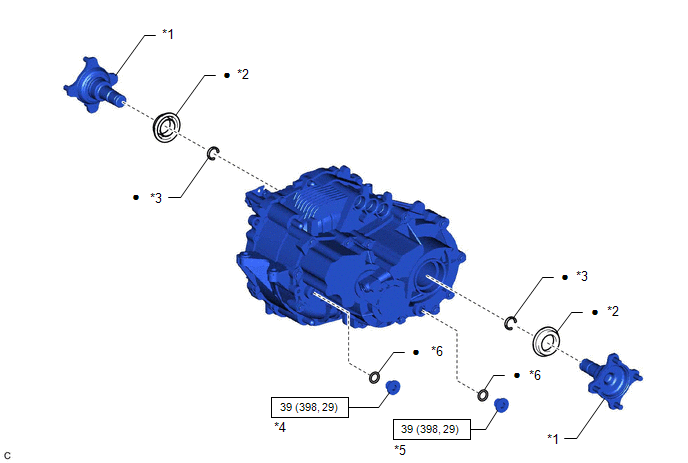

Fig 1: Differential Side Gear Shaft Replacement Components With Torque Specifications
GTY442015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DIFFERENTIAL SIDE GEAR SHAFT SUB-ASSEMBLY *2 DUST COVER
*3 DIFFERENTIAL SIDE GEAR SHAFT SNAP RING *4 FILLER PLUG
*5 DRAIN PLUG *6 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
