Components [02/2014 - ]: Illustration

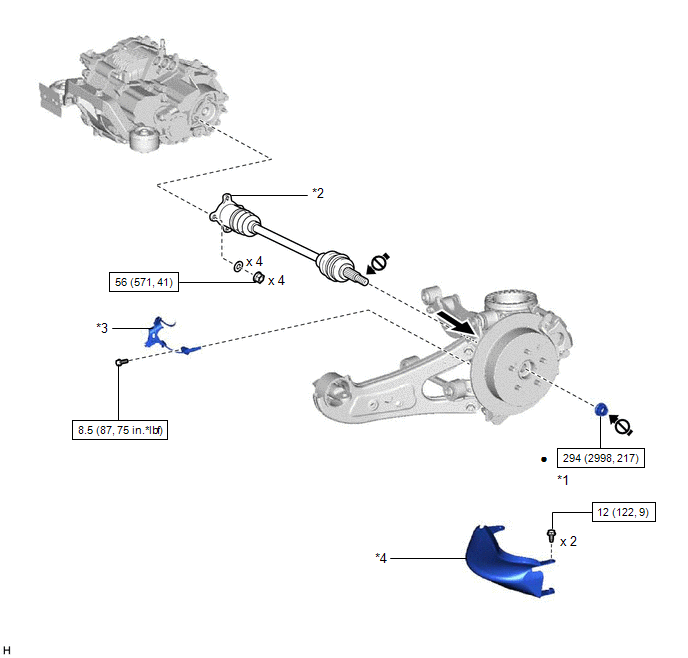

Fig 1: Rear Drive Shaft Assembly Replacement Components With Torque Specifications (1 Of 2)

GTY576983

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR AXLE SHAFT NUT	*2	REAR DRIVE SHAFT ASSEMBLY
*3	REAR SPEED SENSOR	*4	REAR SUSPENSION ARM COVER
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	Do not apply lubricants to the threaded parts		Toyota Body Grease W

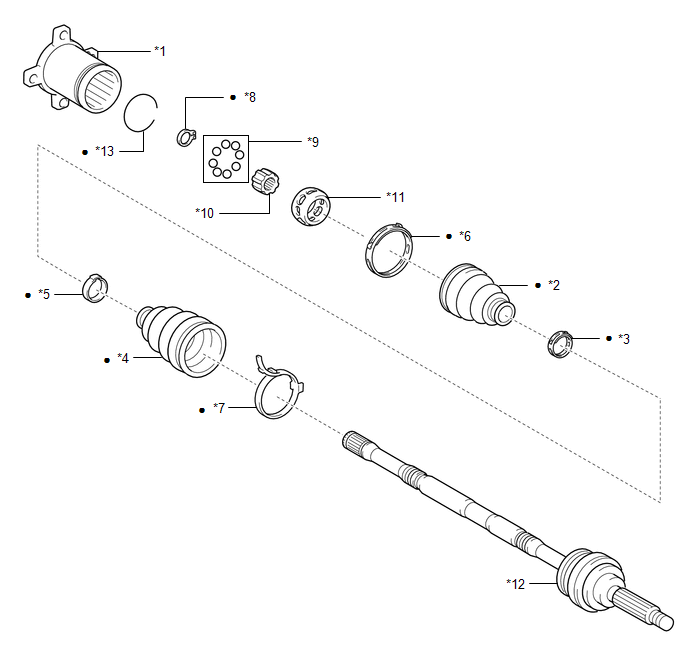

Fig 1: Rear Drive Shaft Assembly Replacement Components (2 Of 2)

GTY453586

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR DRIVE SHAFT INBOARD JOINT ASSEMBLY	*2	REAR DRIVE SHAFT INBOARD JOINT BOOT
*3	REAR DRIVE SHAFT INBOARD JOINT BOOT CLAMP	*4	REAR DRIVE SHAFT OUTBOARD JOINT BOOT
*5	REAR DRIVE SHAFT OUTBOARD JOINT BOOT CLAMP	*6	REAR NO. 2 DRIVE SHAFT INBOARD JOINT BOOT CLAMP
*7	REAR NO. 2 DRIVE SHAFT OUTBOARD JOINT BOOT CLAMP	*8	SHAFT SNAP RING
*9	BALL	*10	INNER RACE
*11	BALL CAGE	*12	REAR DRIVE SHAFT OUTBOARD JOINT SHAFT ASSEMBLY
*13	DRIVE SHAFT SNAP RING	-	-
•	Non-reusable part	-	-
