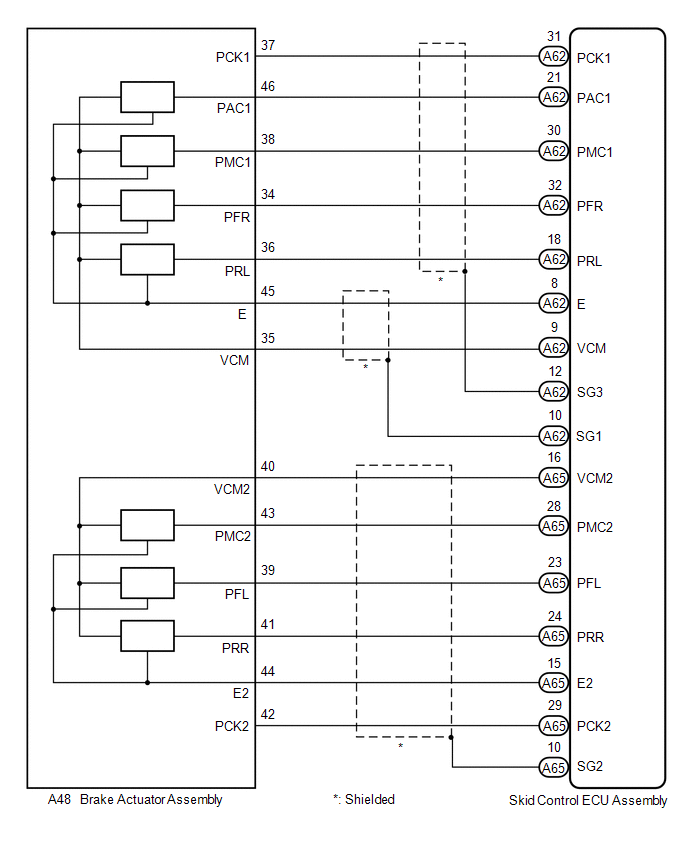

DTC C1246/46: Master Cylinder Pressure Sensor Malfunction; DTC C1281/81: Master Cylinder Pressure Sensor Output Malfunction (Test Mode DTC); DTC C1364/61: Wheel Cylinder Pressure Sensor Malfunction [02/2014 - ]: Wiring Diagram

GTY445288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
