Removal [02/2014 - 11/2016]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [02/2014 - ]

  2. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [02/2014 - ]

  3. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [02/2014 - ]

  4. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    HINT:

    Disconnect the front door opening trim weatherstrip LH to the extent that allows the removal of the center pillar lower garnish LH.

  5. REMOVE REAR OUTER SEAT TRACK BRACKET COVER LH

    Refer to PROCEDURE - Step 4

  6. REMOVE REAR DOOR SCUFF PANEL LH

    Refer to PROCEDURE - Step 12 , or refer to PROCEDURE - Step 12

  7. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 13 , or refer to PROCEDURE - Step 13

  8. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

    HINT:

    Disconnect the rear door opening trim weatherstrip LH to the extent that allows the removal of the center pillar lower garnish LH.

  9. REMOVE LOWER CENTER PILLAR GARNISH LH

    Refer to PROCEDURE - Step 15 , or refer to PROCEDURE - Step 15

  10. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 13

  11. SEPARATE FRONT FLOOR CARPET ASSEMBLY
    1. Disengage the 3 floor carpet hooks to separate the front floor carpet assembly.
      GTY433037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 32

  13. REMOVE REAR NO. 2 AIR DUCT

    Refer to PROCEDURE - Step 21

  14. REMOVE REAR NO. 1 AIR DUCT

    Refer to PROCEDURE - Step 22

  15. REMOVE FRONT FLOOR FOOTREST
    1. Disengage the 2 clips and remove the front floor footrest.
      GTY448110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. DISCONNECT FRONT NO. 3 FLOOR SILENCER
    1. Disconnect the front No. 3 floor silencer to the extent that allows the removal of the parking brake control pedal assembly.
      GTY433036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FRONT FLOOR COVER LH
    1. Remove the 4 bolts, 2 screws and clip (A).
      GTY453292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
    2. Disengage the 2 clips (B) and remove the front floor cover LH.
  18. REMOVE FRONT CENTER FLOOR COVER
    1. Remove the 3 bolts and 2 screws.
      GTY453659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
    2. Disengage the 3 clips and remove the front center floor cover.

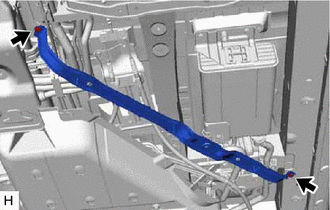

  19. REMOVE REAR ENGINE SERVICE COVER ASSEMBLY
    1. Remove the 2 bolts and rear engine service cover assembly from the body.
      GTY432440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. LOOSEN NO. 1 WIRE ADJUSTING NUT
    1. Completely release the parking brake pedal.
    2. Remove the lock nut and loosen No. 1 wire adjusting nut to completely release the parking brake cable.
      GTY439061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Lock Nut
      *2 No. 1 Wire Adjusting Nut
  21. SEPARATE NO. 3 PARKING BRAKE CABLE ASSEMBLY
    1. Separate the No. 3 parking brake cable assembly from the parking brake equalizer.
      GTY432438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. SEPARATE NO. 2 PARKING BRAKE CABLE ASSEMBLY

    HINT:

    Perform the same procedure as for the No. 3 parking brake cable assembly.

  23. REMOVE PARKING BRAKE EQUALIZER
    1. Slide the rubber boot as shown in the illustration.
      GTY203865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the parking brake equalizer from the No. 1 parking brake cable assembly as shown in the illustration.
      GTY203866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE POWER MANAGEMENT CONTROL ECU

    Refer to PROCEDURE - Step 12

  25. REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU

    Refer to PROCEDURE - Step 13

  26. REMOVE WIRE HARNESS CLAMP BRACKET

    Refer to PROCEDURE - Step 19

  27. REMOVE PARKING BRAKE CONTROL PEDAL ASSEMBLY
    1. Remove the 2 bolts and 2 nuts, and separate the No. 1 parking brake cable assembly from the body.
      GTY452280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Pull out the No. 1 parking brake cable assembly toward the cabin.
      GTY432437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the parking brake switch connector.
      GTY432435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 3 nuts and parking brake control pedal assembly from the body.
      GTY432436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
