Components [02/2014 - 11/2016]: Illustration

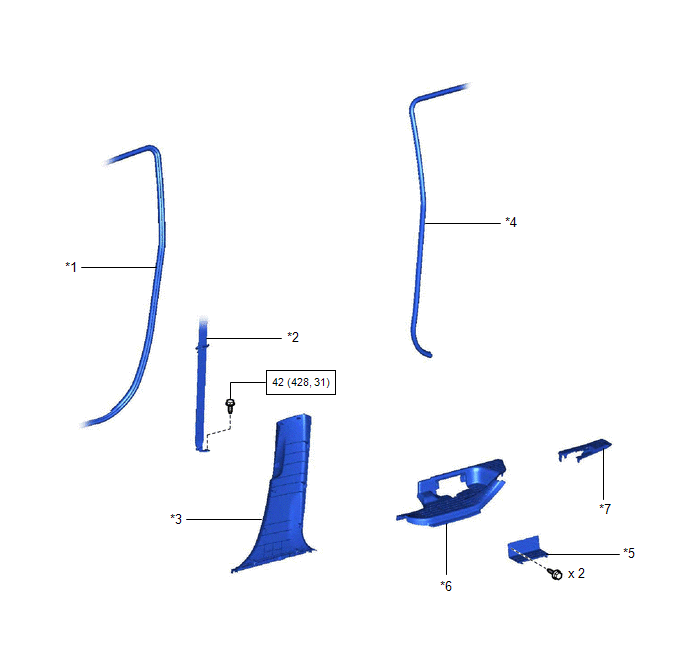

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	*2	FRONT SEAT OUTER BELT ASSEMBLY LH
*3	LOWER CENTER PILLAR GARNISH LH	*4	REAR DOOR OPENING TRIM WEATHERSTRIP LH
*5	REAR DOOR SCUFF PANEL LH	*6	REAR DOOR SCUFF PLATE LH
*7	REAR OUTER SEAT TRACK BRACKET COVER LH	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

Fig 1: Parking Brake Pedal Replacement Components (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CONSOLE BOX INSERT	*2	FRONT FLOOR CARPET ASSEMBLY
*3	FRONT FLOOR FOOTREST	*4	FRONT NO. 3 FLOOR SILENCER
*5	REAR NO. 1 AIR DUCT	*6	REAR NO. 2 AIR DUCT

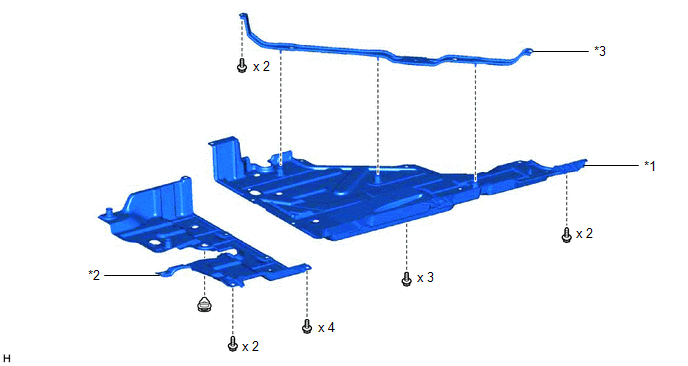

Fig 1: Parking Brake Pedal Replacement Components (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT CENTER FLOOR COVER	*2	FRONT FLOOR COVER LH
*3	REAR ENGINE SERVICE COVER ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

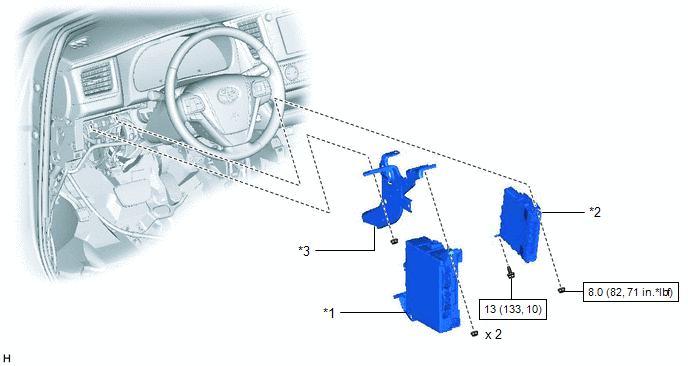

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU	*2	POWER MANAGEMENT CONTROL ECU
*3	WIRE HARNESS CLAMP BRACKET	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

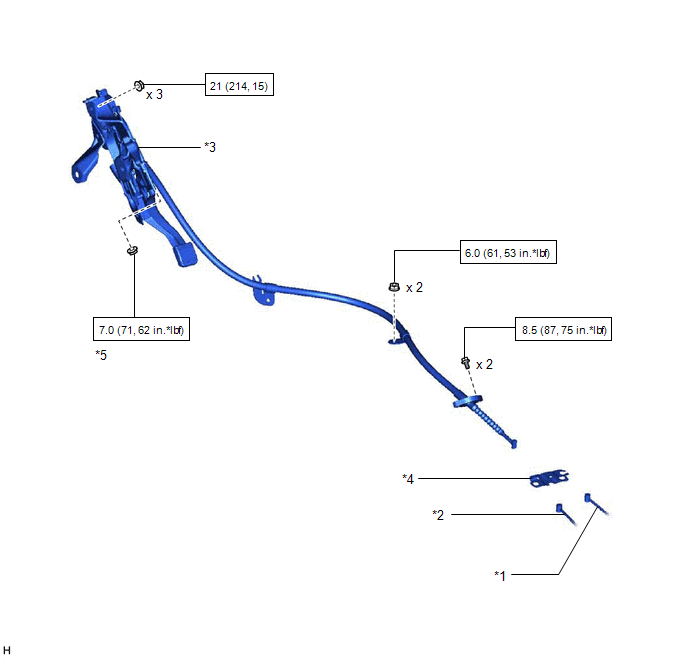

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 PARKING BRAKE CABLE ASSEMBLY	*2	NO. 3 PARKING BRAKE CABLE ASSEMBLY
*3	PARKING BRAKE CONTROL PEDAL ASSEMBLY	*4	PARKING BRAKE EQUALIZER
*5	LOCK NUT	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

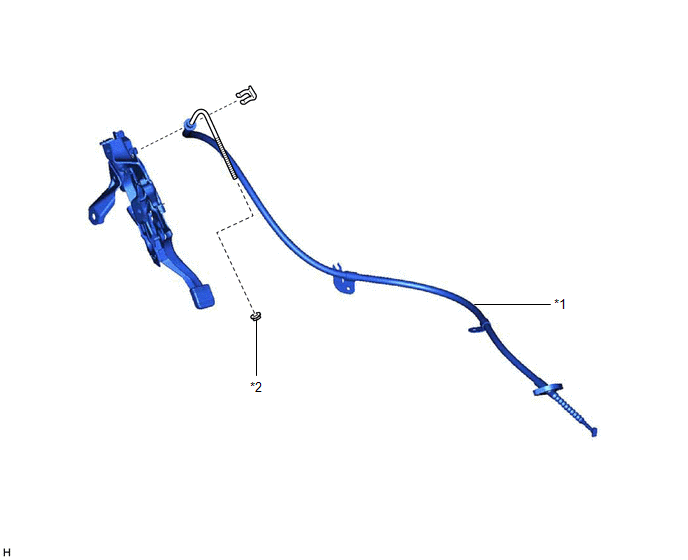

Fig 1: Parking Brake Pedal Replacement Components (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

NO. 1 PARKING BRAKE CABLE ASSEMBLY

*2

NO. 1 WIRE ADJUSTING NUT

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	PARKING BRAKE SWITCH ASSEMBLY	*2	PARKING PEDAL PAD
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-
