Removal [02/2014 - ]: Procedure

  1. REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY

    Refer to REMOVAL [02/2014 - 11/2016] , or refer to REMOVAL [11/2016 - ]

  2. REMOVE BRAKE STROKE SIMULATOR CYLINDER SUB-ASSEMBLY
    1. Disengage the clamp to separate the connector from the brake stroke simulator bracket.
      GTY452852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

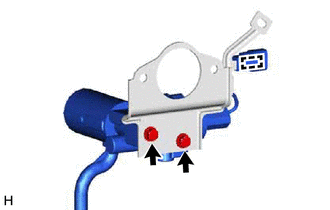

    2. Remove the 2 bolts and brake stroke simulator cylinder sub-assembly from the brake stroke simulator bracket.
