Components [02/2014 - ]: Illustration

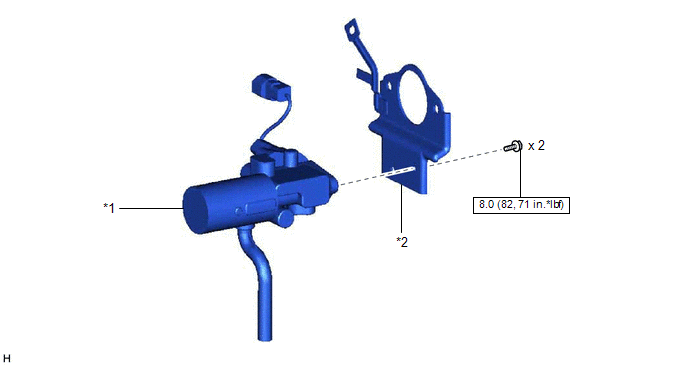

Fig 1: Brake Stroke Simulator Cylinder Replacement Components With Torque Specifications
GTY434863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE STROKE SIMULATOR CYLINDER SUB-ASSEMBLY *2 BRAKE STROKE SIMULATOR BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque - -
