Components [02/2014 - ]: Illustration

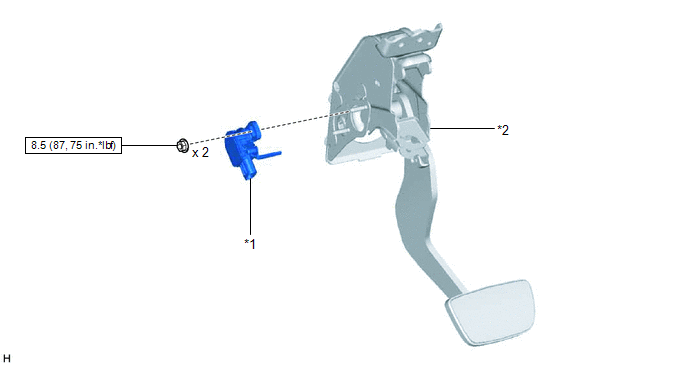

Fig 1: Brake Pedal Replacement Components With Torque Specifications (1 Of 3)
GTY453187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE PEDAL STROKE SENSOR ASSEMBLY *2 BRAKE PEDAL SUPPORT ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -

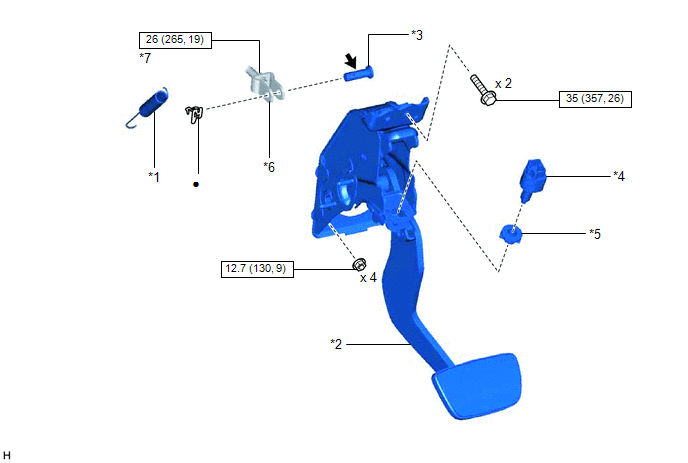

Fig 1: Brake Pedal Replacement Components With Torque Specifications (2 Of 3)
GTY426343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE PEDAL RETURN SPRING *2 BRAKE PEDAL SUPPORT ASSEMBLY
*3 PUSH ROD PIN *4 STOP LIGHT SWITCH ASSEMBLY
*5 STOP LIGHT SWITCH MOUNTING ADJUSTER *6 MASTER CYLINDER PUSH ROD CLEVIS
*7 LOCK NUT - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Lithium soap base glycol grease - -


Fig 1: Brake Pedal Replacement Components (3 Of 3)
GTY431008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BRAKE PEDAL PAD - -
