Adjustment [02/2014 - ]: Procedure
- INSPECT AND ADJUST BRAKE PEDAL HEIGHT
HINT:
Inspect and adjust the brake pedal height with the floor carpet folded back.
- Check the brake pedal height.
- Measure the shortest distance between the brake pedal pad surface and front floor footrest as shown in the illustration.
*1 Brake Pedal Pad - - *a Brake Pedal Height *b Measuring Plane of Front Floor Footrest Brake Pedal Height from Front Floor Footrest
138.3 to 148.3 mm (5.45 to 5.83 in.)
If the brake pedal height is not as specified, inspect and adjust the push rod length according to the procedure below.
- Measure the shortest distance between the brake pedal pad surface and front floor footrest as shown in the illustration.
- Adjust the push rod length.
- Remove the stop light switch assembly.

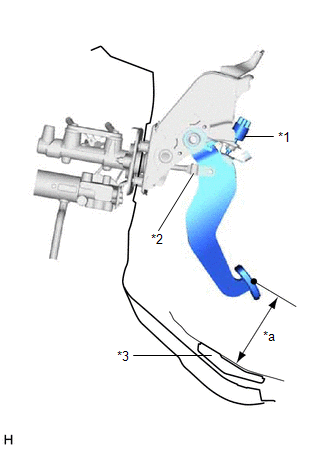

*1 Stop Light Switch Assembly *2 Lock Nut *3 Front Floor Footrest *a Brake Pedal Height Refer to REMOVAL [02/2014 - ]
- Loosen the lock nut and adjust the brake pedal height by turning the push rod to achieve the correct height.
Brake Pedal Height from Front Floor Footrest
138.3 to 148.3 mm (5.45 to 5.83 in.)
- Tighten the lock nut.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)
- Install the stop light switch assembly.
Refer to INSTALLATION [02/2014 - ]
- Remove the stop light switch assembly.
- Check the brake pedal height.
- INSPECT AND ADJUST BRAKE PEDAL STROKE SENSOR ASSEMBLY
- Inspect the brake pedal stroke sensor assembly.
- Connect the Techstream to the DLC3 with the power switch off.
- Turn the power switch on (IG).
- Turn the Techstream on and enter the following menus: Chassis / ABS/VSC/TRAC / Data List / Stroke Sensor.
Chassis > ABS/VSC/TRAC > Data List
Tester Display Stroke Sensor - Read the stroke sensor value without the brake pedal depressed.
Standard Voltage (without the brake pedal depressed)
0.8 to 1.2 V
If the stroke sensor value is not within the standard voltage, adjust the brake pedal stroke sensor assembly.
- Adjust the brake pedal stroke sensor assembly.

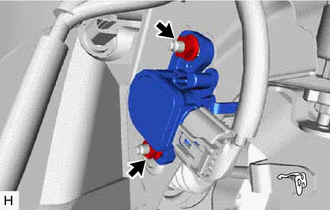

- Loosen the 2 nuts.NOTE:
Do not depress the brake pedal after turning the power switch on (IG).
- Read the stroke sensor value in the Data List, and turn the brake pedal stroke sensor assembly slowly to the right or left to adjust the output voltage so that it is within the following range.
Standard Voltage (without the brake pedal depressed)
0.8 to 1.2 V
- Tighten the 2 nuts.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
- Perform initialization and calibration of the linear solenoid valve.
Refer to INITIALIZATION [02/2014 - 11/2016] , or refer to INITIALIZATION [11/2016 - ]
- Turn the Techstream off and turn the power switch off.
- Disconnect the Techstream.
- Loosen the 2 nuts.
- Inspect the brake pedal stroke sensor assembly.
- INSPECT BRAKE PEDAL FREE PLAY
- Depress the brake pedal until a slight resistance is felt. Measure the distance as shown in the illustration.
*a Brake Pedal Free Play Brake Pedal Free Play
1.0 to 2.0 mm (0.0394 to 0.0787 in.)
If the brake pedal free play is not as specified, check the stop light switch clearance.
Refer to INSTALLATION [02/2014 - ]
If the brake pedal free play is as specified, proceed to the Inspect Brake Pedal Reserve Distance procedure.
- Depress the brake pedal until a slight resistance is felt. Measure the distance as shown in the illustration.
- INSPECT BRAKE PEDAL RESERVE DISTANCE
- Release the parking brake.
- With the power switch on (READY), depress the brake pedal and measure the brake pedal reserve distance as shown in the illustration.
*1 Brake Pedal Pad - - *a Brake Pedal Reserve Distance *b Measuring Plane of Front Floor Footrest Brake Pedal Reserve Distance from Front Floor Footrest at 490 N (50 kgf, 110.2 lbf)
More than 93 mm (3.66 in.)
If the distance is not as specified, troubleshoot the brake system.
Refer to PROBLEM SYMPTOMS TABLE [02/2014 - ]
