Reassembly [02/2014 - ]: Procedure

  1. INSTALL MASTER CYLINDER RESERVOIR GROMMET
    1. Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new master cylinder reservoir grommets.

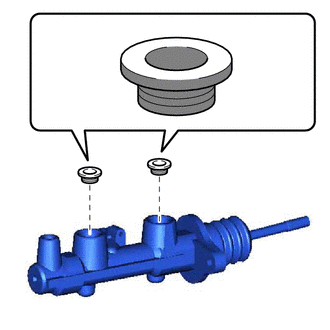

      GTY437258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Lithium Soap Base Glycol Grease
    2. Install the 2 master cylinder reservoir grommets to the brake master cylinder assembly.
  2. INSTALL BRAKE MASTER CYLINDER UNION
    1. Install the brake master cylinder union to the brake master cylinder assembly with the screw.

      Torque: 1.8 N*m (18 kgf*cm, 16 in.*lbf)

  3. INSTALL MASTER CYLINDER PUSH ROD CLEVIS
    1. Temporarily install the lock nut and master cylinder push rod clevis to the brake master cylinder assembly.
      NOTE:

      Fully tighten the lock nut when adjusting the brake pedal height.
