Disassembly [02/2014 - ]: Procedure

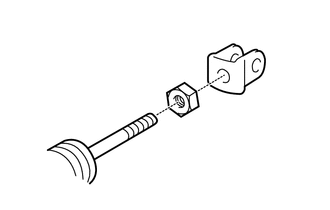

  1. REMOVE MASTER CYLINDER PUSH ROD CLEVIS
    1. Loosen the lock nut and remove the master cylinder push rod clevis and lock nut.
      GTY455011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

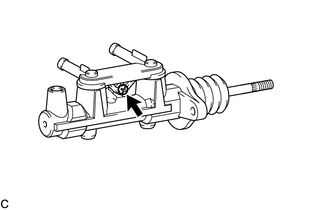

  2. REMOVE BRAKE MASTER CYLINDER UNION
    1. Remove the screw and brake master cylinder union from the brake master cylinder assembly.
      GTY444969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

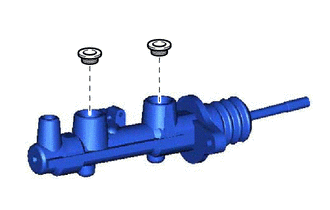

  3. REMOVE MASTER CYLINDER RESERVOIR GROMMET
    1. Remove the 2 master cylinder reservoir grommets from the brake master cylinder assembly.
      GTY445049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
