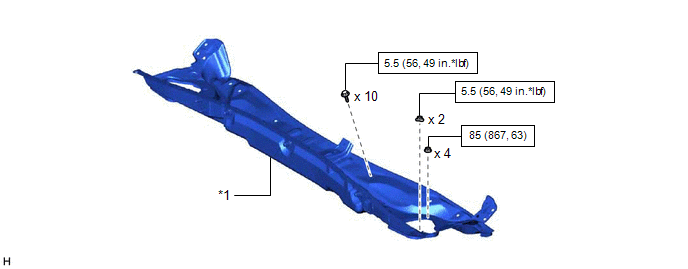

Components [11/2016 - ]: Illustration

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	OUTER COWL TOP PANEL SUB-ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

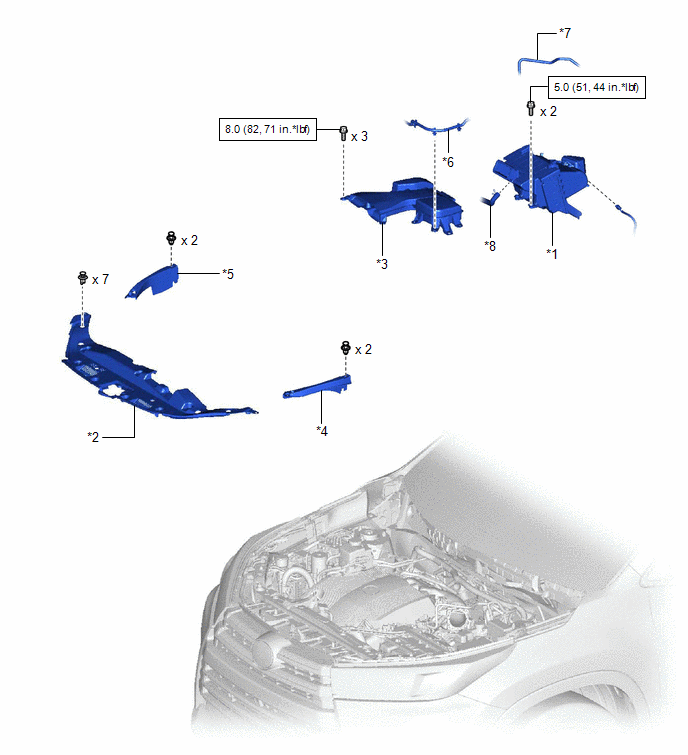

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE	*2	COOL AIR INTAKE DUCT SEAL
*3	INLET AIR CLEANER ASSEMBLY	*4	RADIATOR SIDE DEFLECTOR SEAL LH
*5	RADIATOR SIDE SEAL RH	*6	INVERTER DRAIN HOSE
*7	FUEL VAPOR FEED HOSE ASSEMBLY	*8	NO. 2 VENTILATION HOSE
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BRAKE MASTER CYLINDER GASKET	*2	BRAKE MASTER WITH STROKE SIMULATOR CYLINDER ASSEMBLY
*3	BRAKE PEDAL RETURN SPRING	*4	FRONT NO. 6 BRAKE TUBE
*5	FRONT NO. 7 BRAKE TUBE	*6	NO. 1 RESERVOIR HOSE
*7	NO. 2 RESERVOIR HOSE	*8	PUSH ROD PIN
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	Lithium soap base glycol grease	-	-

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (4 Of 5)

Callout	Description	Callout	Description
*1	BRAKE MASTER CYLINDER SUB-ASSEMBLY	*2	BRAKE STROKE SIMULATOR TUBE
*3	BRAKE STROKE SIMULATOR CYLINDER WITH BRACKET	*4	BRAKE MASTER CYLINDER BRACKET
*5	BRAKE MASTER CYLINDER GASKET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (5 Of 5)

Callout	Description	Callout	Description
*1	BRAKE MASTER CYLINDER UNION	*2	MASTER CYLINDER PUSH ROD CLEVIS
*3	MASTER CYLINDER RESERVOIR GROMMET	*4	BRAKE MASTER CYLINDER ASSEMBLY
*5	LOCK NUT	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	Lithium soap base glycol grease	-	-
