Components [02/2014 - 11/2016]: Illustration

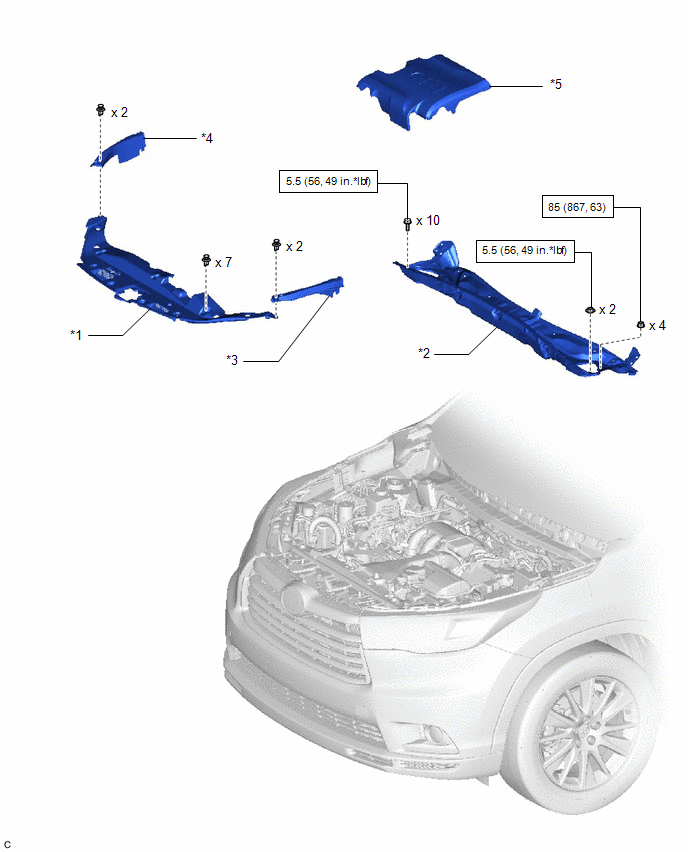

| Callout | Description | Callout | Description |
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | OUTER COWL TOP PANEL SUB-ASSEMBLY |
| *3 | RADIATOR SIDE DEFLECTOR SEAL LH | *4 | RADIATOR SIDE SEAL RH |
| *5 | V-BANK COVER SUB-ASSEMBLY | - | |
| N*m (kgf*cm, ft.*lbf): Specified torque | - |

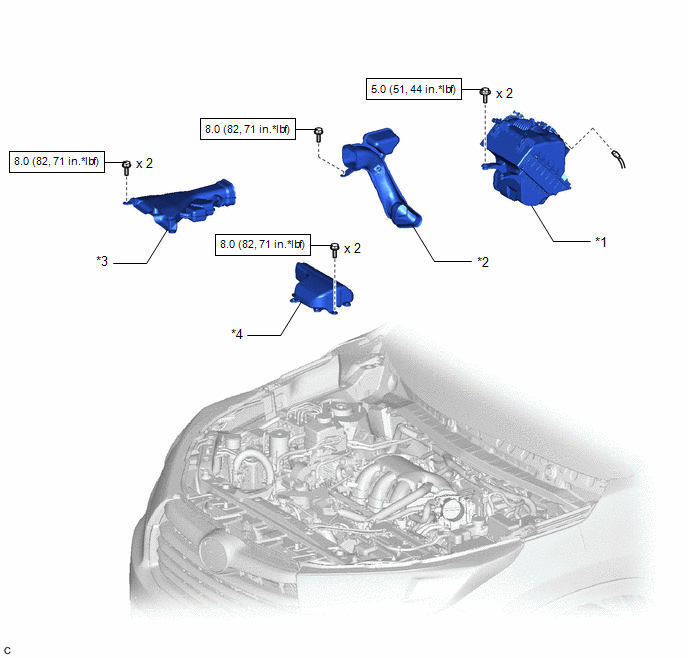

| Callout | Description | Callout | Description |
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | INLET NO. 1 AIR CLEANER |
| *3 | INLET NO. 2 AIR CLEANER | *4 | INTAKE AIR RESONATOR SUB-ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

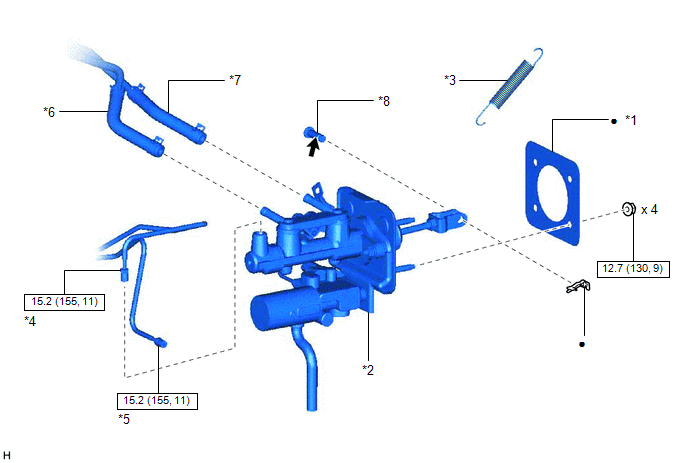

| Callout | Description | Callout | Description |
| *1 | BRAKE MASTER CYLINDER GASKET | *2 | BRAKE MASTER WITH STROKE SIMULATOR CYLINDER ASSEMBLY |
| *3 | BRAKE PEDAL RETURN SPRING | *4 | FRONT NO. 6 BRAKE TUBE |
| *5 | FRONT NO. 7 BRAKE TUBE | *6 | NO. 1 RESERVOIR HOSE |
| *7 | NO. 2 RESERVOIR HOSE | *8 | PUSH ROD PIN |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |

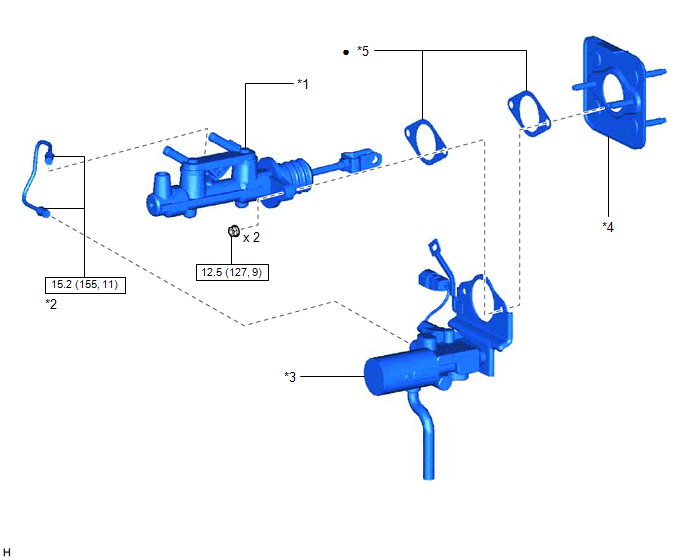

| Callout | Description | Callout | Description |
| *1 | BRAKE MASTER CYLINDER SUB-ASSEMBLY | *2 | BRAKE STROKE SIMULATOR TUBE |
| *3 | BRAKE STROKE SIMULATOR CYLINDER WITH BRACKET | *4 | BRAKE MASTER CYLINDER BRACKET |
| *5 | BRAKE MASTER CYLINDER GASKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

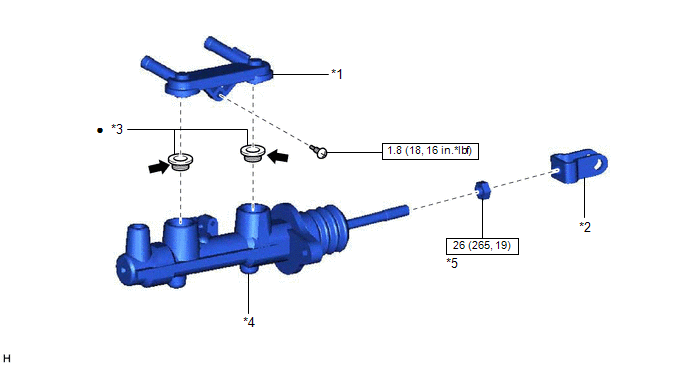

| Callout | Description | Callout | Description |
| *1 | BRAKE MASTER CYLINDER UNION | *2 | MASTER CYLINDER PUSH ROD CLEVIS |
| *3 | MASTER CYLINDER RESERVOIR GROMMET | *4 | BRAKE MASTER CYLINDER ASSEMBLY |
| *5 | LOCK NUT | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |
