On-Vehicle Inspection [02/2014 - ]: Procedure
- INSPECT AND ADJUST FLUID LEVEL IN RESERVOIR
- Inspect the brake fluid level. If the brake fluid level is lower than the MIN line, inspect for brake fluid leaks and brake pad wear. After repair or replacement, adjust the brake fluid level in the brake master cylinder reservoir assembly as specified below.

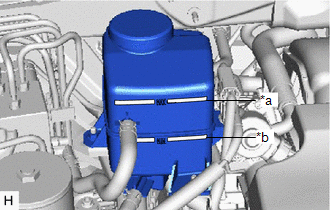

*a MAX Line *b MIN Line - Add the brake fluid to the MAX line with the power switch on (IG).
Brake Fluid
SAE J1703 or FMVSS No. 116 DOT3
NOTE:The brake fluid level must always be adjusted to the MAX line.
- Add the brake fluid to the MAX line with the power switch on (IG).
- Inspect the brake fluid level. If the brake fluid level is lower than the MIN line, inspect for brake fluid leaks and brake pad wear. After repair or replacement, adjust the brake fluid level in the brake master cylinder reservoir assembly as specified below.
