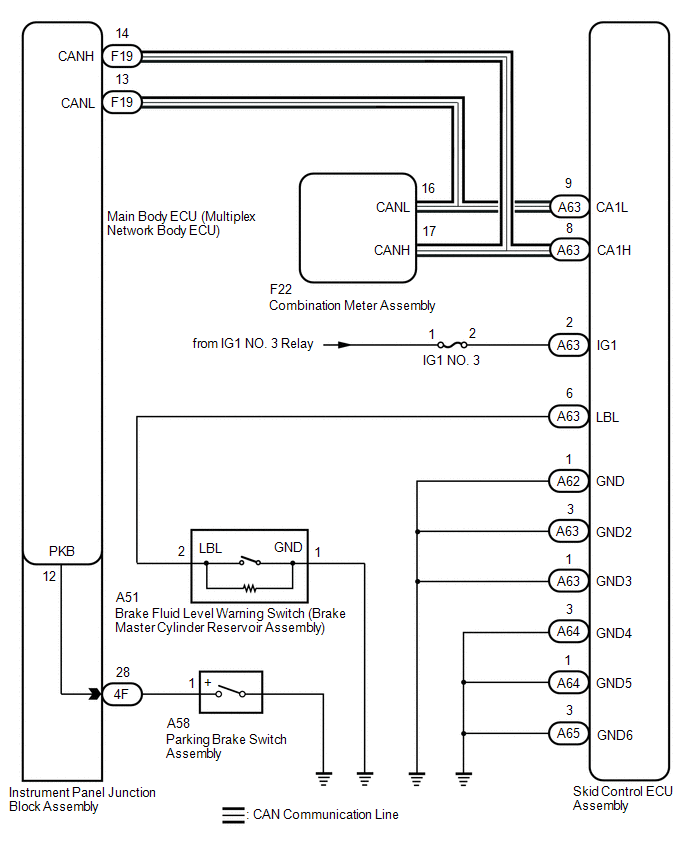

Brake Warning Light Remains ON [02/2014 - 11/2016]: Wiring Diagram

GTY452326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
