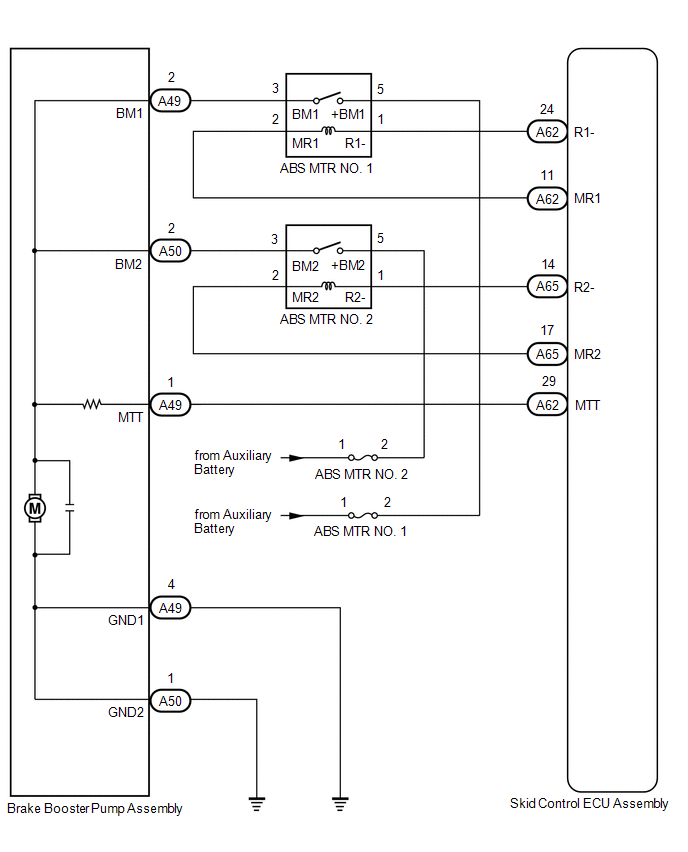

DTC C1252-52: Brake Booster Pump Motor on Time Abnormally Long; DTC C1253-53: Pump Motor Relay Malfunction [11/2016 - ]: Wiring Diagram

GTY423987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
