Inspection [02/2014 - ]: Procedure

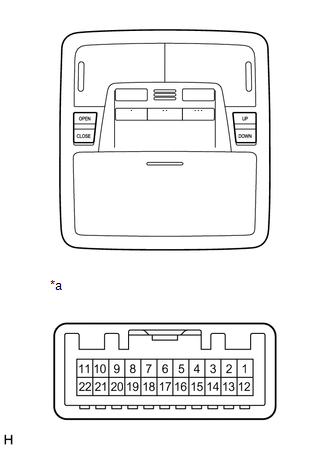

- INSPECT MAP LIGHT ASSEMBLY (for Sliding Roof)
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Map Light Assembly)Standard Resistance
Tester Connection Condition Specified Condition 6 - 1 UP switch is pressed Below 1 Ω 6 - 1 UP switch is not pressed 10 kΩ or higher 5 - 1 DOWN switch is pressed Below 1 Ω 5 - 1 DOWN switch is not pressed 10 kΩ or higher 17 - 1 OPEN switch is pressed Below 1 Ω 17 - 1 OPEN switch is not pressed 10 kΩ or higher 16 - 1 CLOSE switch is pressed Below 1 Ω 16 - 1 CLOSE switch is not pressed 10 kΩ or higher If the result is not as specified, replace the map light assembly.
- Measure the resistance according to the value(s) in the table below.

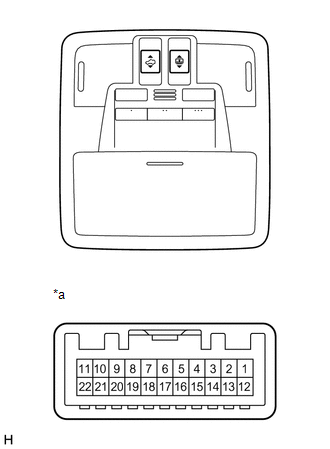

- INSPECT MAP LIGHT ASSEMBLY (for Panoramic Moon Roof)
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Map Light Assembly)Standard Resistance
Tester Connection Condition Specified Condition 6 - 1 Sliding roof switch is slide backward Below 1 Ω 6 - 1 Sliding roof switch is not slide backward 10 kΩ or higher 5 - 1 Sliding roof switch is slide forward Below 1 Ω 5 - 1 Sliding roof switch is not slide forward 10 kΩ or higher 7 - 1 Sliding roof switch is pressed Below 1 Ω 7 - 1 Sliding roof switch is not pressed 10 kΩ or higher 17 - 1 Roof sunshade switch is slide backward Below 1 Ω 17 - 1 Roof sunshade switch is not slide backward 10 kΩ or higher 16 - 1 Roof sunshade switch is slide forward Below 1 Ω 16 - 1 Roof sunshade switch is not slide forward 10 kΩ or higher If the result is not as specified, replace the map light assembly.
- Measure the resistance according to the value(s) in the table below.
