Components [02/2014 - ]: Illustration

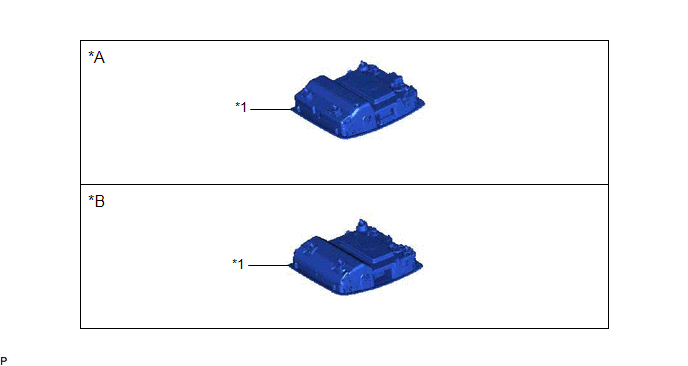

Fig 1: Sliding Roof Switch Assembly Replacement Components
GTY426739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Sliding Roof *B for Panoramic Moon Roof
*1 MAP LIGHT ASSEMBLY - -
