Disassembly [02/2014 - ]: Procedure

REMOVE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

Disengage the claw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Guide
*b	Pin

Remove the 2 bolts and sliding roof drive gear sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE SUNSHADE TRIM SUB-ASSEMBLY

Remove the 2 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the guide and remove the sliding roof piece sub-assembly LH.
HINT:

Use the same procedure for the RH side.

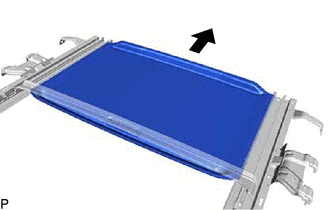

Slide and remove the sunshade trim sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

NOTE:

Do not disassemble the sliding roof drive cable sub-assembly except when replacing it.

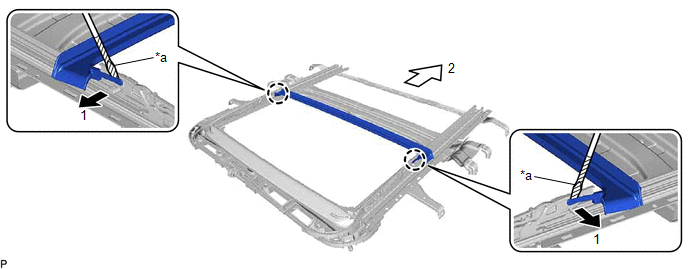

Using a screwdriver, disengage the 2 claws in the direction indicated by the arrow (1) in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

HINT:

Tape the screwdriver tip before use.

Slide the rear roof drip channel in the direction indicated by the arrow (2) in the illustration to remove it.

Hold down the roof wind deflector panel sub-assembly.

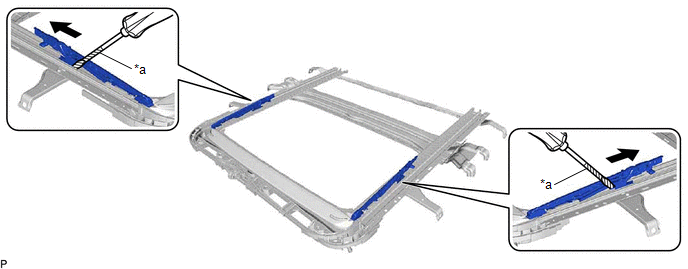

Using a screwdriver, slide the sliding roof drive cable sub-assembly as shown in the illustration to remove it.

Protective Tape

HINT:

Tape the screwdriver tip before use.
