Components [02/2014 - ]: Illustration

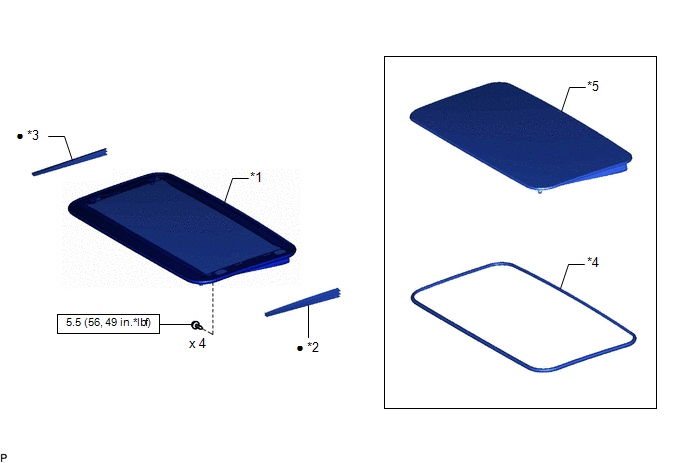

Fig 1: Sliding Roof Housing (For Sliding Roof) Replacement Components With Torque Specifications (1 Of 3)
| Callout | Description | Callout | Description |
| *1 | SLIDING ROOF GLASS SUB-ASSEMBLY | *2 | SLIDING ROOF SIDE GARNISH LH |
| *3 | SLIDING ROOF SIDE GARNISH RH | *4 | SLIDING ROOF WEATHERSTRIP |
| *5 | SLIDING ROOF PANEL SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

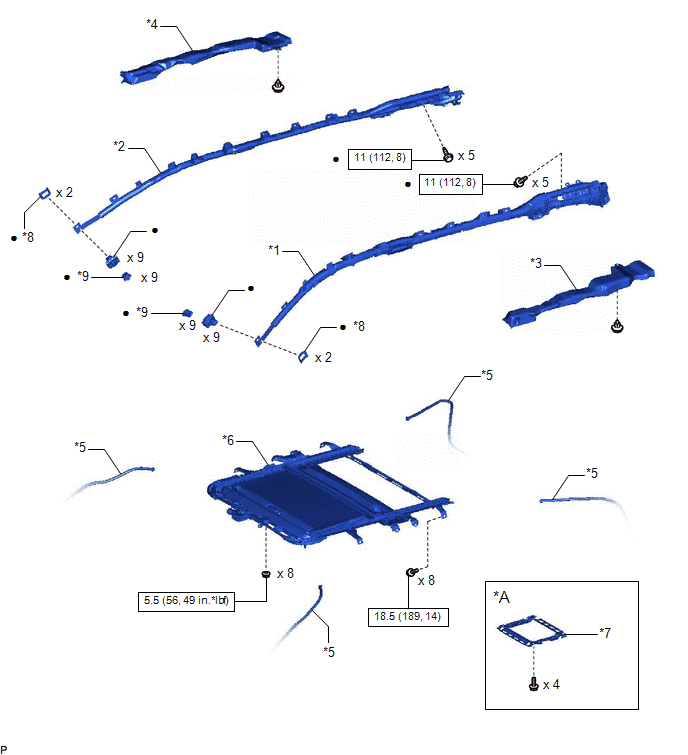

Fig 1: Sliding Roof Housing (For Sliding Roof) Replacement Components With Torque Specifications (2 Of 3)
| Callout | Description | Callout | Description |
| *A | w/ Rear Seat Entertainment System | - | - |
| *1 | CURTAIN SHIELD AIRBAG ASSEMBLY LH | *2 | CURTAIN SHIELD AIRBAG ASSEMBLY RH |
| *3 | NO. 1 ROOF SIDE AIR DUCT LH | *4 | NO. 1 ROOF SIDE AIR DUCT RH |
| *5 | SLIDING ROOF DRAIN HOSE | *6 | SLIDING ROOF HOUSING ASSEMBLY |
| *7 | TELEVISION BRACKET | *8 | SPACER |
| *9 | PIN | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

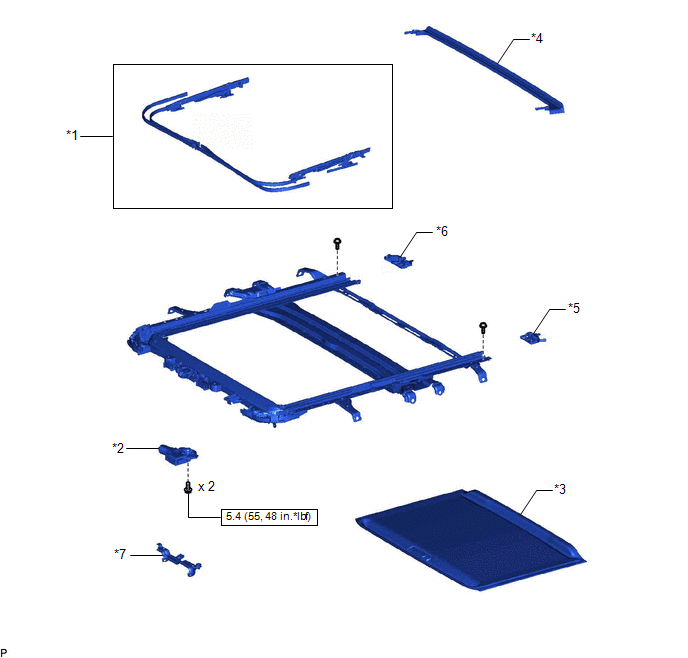

Fig 1: Sliding Roof Housing (For Sliding Roof) Replacement Components With Torque Specifications (3 Of 3)
| Callout | Description | Callout | Description |
| *1 | SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY | *2 | SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY |
| *3 | SUNSHADE TRIM SUB-ASSEMBLY | *4 | REAR ROOF DRIP CHANNEL |
| *5 | SLIDING ROOF PIECE SUB-ASSEMBLY LH | *6 | SLIDING ROOF PIECE SUB-ASSEMBLY RH |
| *7 | MAP LIGHT BRACKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
