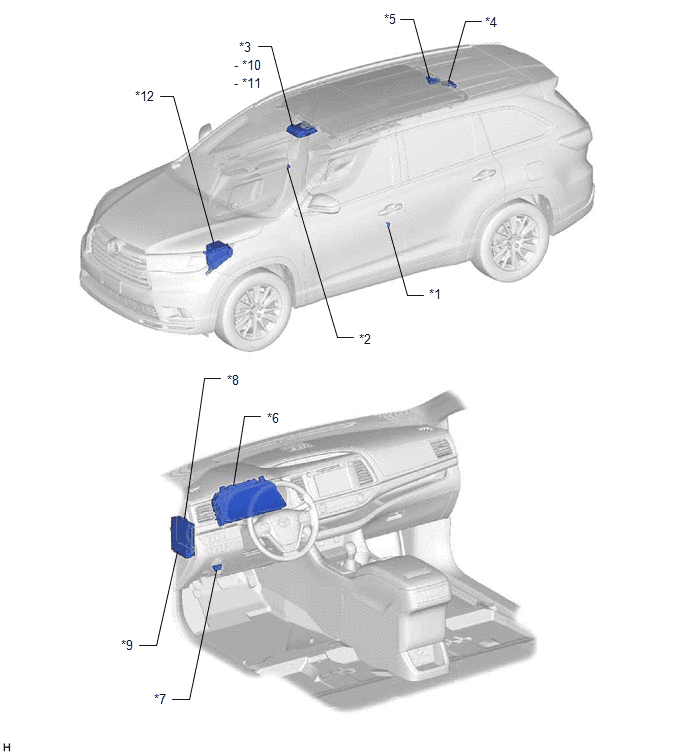

Parts Location [02/2014 - ]: Illustration
| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *3 | MAP LIGHT ASSEMBLY | *4 | SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) |
| *5 | ROOF SUNSHADE ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY) | *6 | COMBINATION METER ASSEMBLY |
| *7 | DLC3 | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - S/ROOF FUSE - ECU-IG FUSE |
*10 | SLIDING ROOF SWITCH |
| *11 | ROOF SUNSHADE SWITCH | *12 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - SHADE FUSE |
