Installation [02/2014 - 11/2016]: Procedure

  1. INSTALL FRONT SEAT ASSEMBLY
    1. Place the front seat assembly in the cabin.
      NOTE:

      Be careful not to damage the vehicle body.

    2. Connect the to the front seat airbag assembly connector under the front seat assembly.
      1. Before connecting the connector, check that the position of the housing lock is correct as shown in the illustration.
        GTY433689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Correct *b Incorrect
        *c Yellow CPA - -
      2. Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).
        NOTE:
        • When connecting any airbag connector, take care not to damage the airbag wire harness.
        • When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and upper part of the yellow CPA, as it may result in an insecure fit.
    3. Connect the front seat airbag sub-assembly RH connector under the front seat assembly.
    4. Connect each connector and engage each clamp under the front seat assembly.
    5. Temporarily install the front seat assembly with the 4 bolts.
    6. Lift up the seat track adjusting handle and move the front seat assembly to the rearmost position.
    7. Tighten the 2 bolts on the front side of the front seat assembly.

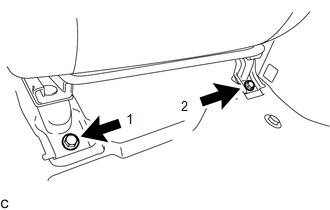

      Fig 1: Tightening Sequence Of The 2 Bolts On The Front Side Of The Front Seat Assembly
      GTY451417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 36.7 N*m (374 kgf*cm, 27 ft.*lbf)

      NOTE:

      Tighten the bolts in the order shown in the illustration.

    8. Lift up the seat track adjusting handle and move the front seat assembly to the foremost position.
    9. Tighten the 2 bolts on the rear side of the front seat assembly.
      Fig 2: Tightening Sequence Of The 2 Bolts On The Rear Side Of The Front Seat Assembly
      GTY454715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 36.7 N*m (374 kgf*cm, 27 ft.*lbf)

      NOTE:

      Tighten the bolts in the order shown in the illustration.

  2. INSPECT SEAT SLIDE ADJUSTER LOCK
    1. While performing the sliding operation of the front seat assembly, check that the left and right adjusters move together smoothly and lock simultaneously. If the seat adjusters do not lock simultaneously, loosen the front seat assembly installation bolts and adjust the adjuster position.
  3. INSTALL INNER SEAT TRACK BRACKET COVER
    1. Lift up the seat track adjusting handle and move the front seat assembly to the foremost position.
    2. Engage the 2 claws and 2 guides to install the inner seat track bracket cover.

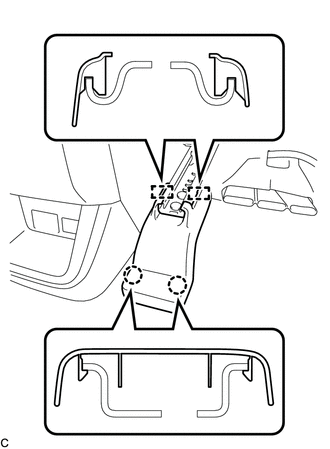

      GTY447378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL SEAT TRACK COVER
    1. Engage the 2 claws and 2 guides to install the seat track cover.

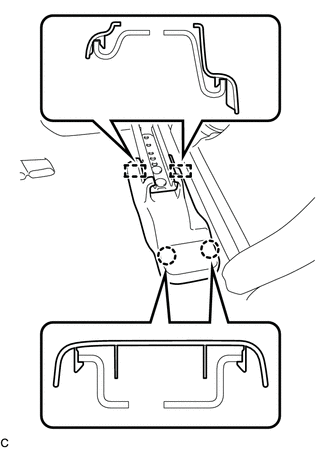

      GTY447374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT INNER SEAT TRACK BRACKET COVER
    1. Lift up the seat track adjusting handle and move the front seat assembly to the rearmost position.
    2. Engage the 2 claws and 2 guides to install the front inner seat track bracket cover.

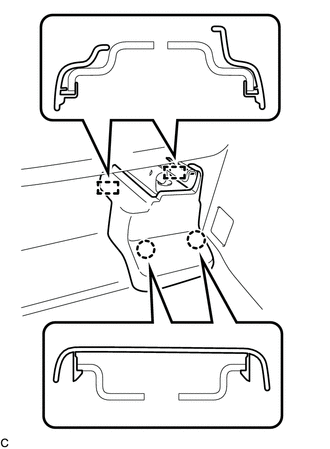

      GTY455508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER
    1. Engage the 2 claws and 2 guides to install the front outer seat track bracket cover.

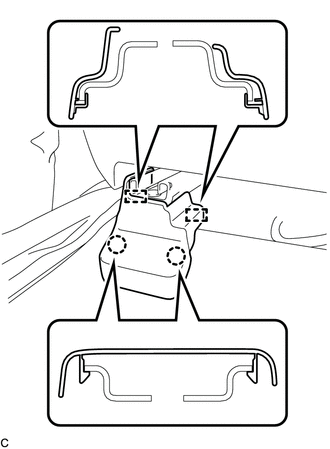

      GTY447331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FRONT SEAT HEADREST ASSEMBLY
    1. Install the front seat headrest assembly to the front seat assembly.
  8. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [02/2014 - 11/2016]

  9. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 71 , or refer to PROCEDURE - Step 72

  10. INSTALL DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 72 , or refer to PROCEDURE - Step 73

  11. CHECK SEAT HEATER (w/ Seat Heater System)

    Refer to OPERATION CHECK [02/2014 - ]

  12. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM [02/2014 - ]

  13. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK

    Refer to INITIALIZATION [02/2014 - ]
