Components [11/2016 - ]: Illustration

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (1 Of 15)
GTY438127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DECK BOARD ASSEMBLY *2 NO. 3 DECK BOARD SUB-ASSEMBLY

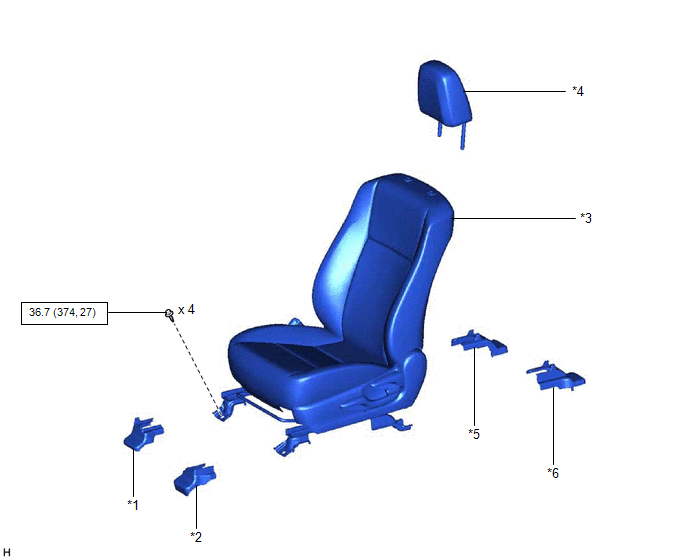

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (2 Of 15)
GTY720039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT INNER SEAT TRACK BRACKET COVER *2 FRONT OUTER SEAT TRACK BRACKET COVER
*3 FRONT SEAT ASSEMBLY *4 FRONT SEAT HEADREST ASSEMBLY
*5 INNER SEAT TRACK BRACKET COVER *6 SEAT TRACK COVER
N*m (kgf*cm, ft.*lbf): Specified torque - -


Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (3 Of 15)
GTY452035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Front Passenger Side - -
*1 OCCUPANT DETECTION ECU - -


Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (4 Of 15)
GTY441481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Driver Side *B for Front Passenger Side
*1 FRONT SEAT INNER BELT ASSEMBLY *2 FRONT SEAT BELT ANCHOR PLATE
N*m (kgf*cm, ft.*lbf): Specified torque - -

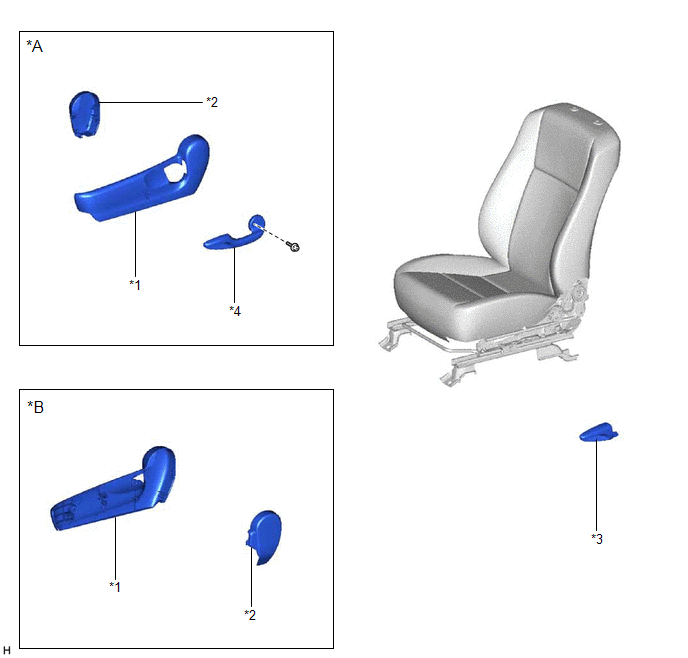

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (5 Of 15)
GTY725646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Driver Side *B for Front Passenger Side
*1 FRONT SEAT CUSHION SHIELD *2 FRONT SEAT INNER CUSHION SHIELD
*3 RECLINING ADJUSTER RELEASE HANDLE *4 VERTICAL ADJUSTING HANDLE

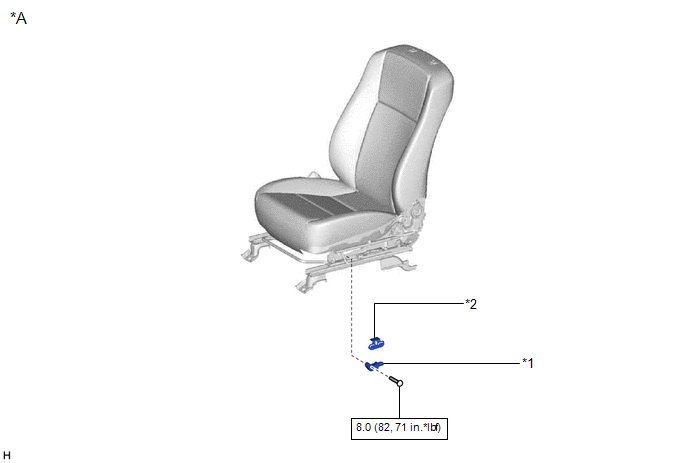

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (6 Of 15)
GTY699438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Driver Side - -
*1 SEAT POSITION AIRBAG SENSOR *2 SEAT SLIDE POSITION SENSOR PROTECTOR
N*m (kgf*cm, ft.*lbf): Specified torque - -


Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (7 Of 15)
GTY452527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 SEPARATE TYPE FRONT SEATBACK ASSEMBLY *2 SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -

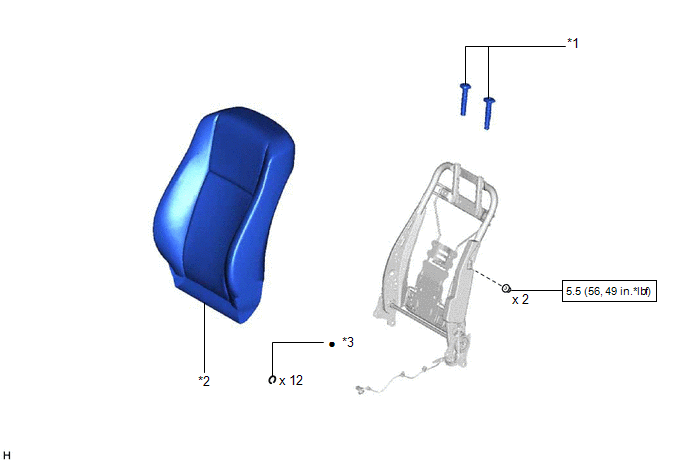

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (8 Of 15)
GTY732424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT SEAT HEADREST SUPPORT ASSEMBLY *2 SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
*3 HOG RING - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

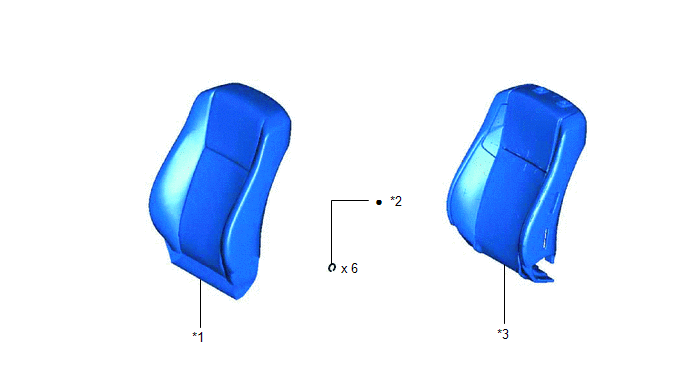

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (9 Of 15)
GTY693562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SEPARATE TYPE FRONT SEATBACK COVER *2 HOG RING
*3 SEPARATE TYPE FRONT SEATBACK PAD - -
• Non-reusable part - -


Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (10 Of 15)
GTY445191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT SEAT AIRBAG ASSEMBLY *2 SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part


Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (11 Of 15)
GTY720455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT SEATBACK EDGE PROTECTOR *2 FRONT SEATBACK HOOK
*3 FRONT SEATBACK SPRING SUB-ASSEMBLY *4 FRONT SEATBACK FRAME SUB-ASSEMBLY


Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (12 Of 15)
GTY428050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD *2 SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY

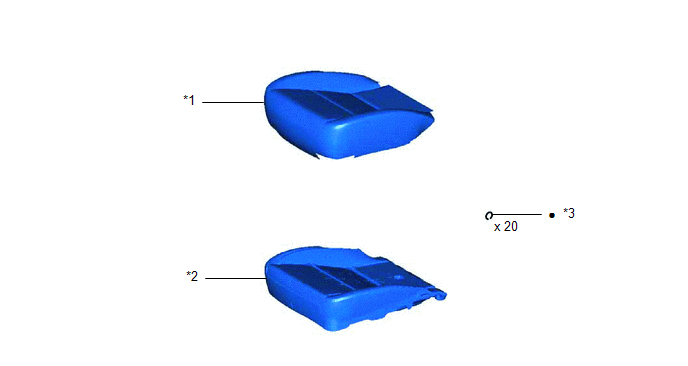

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (13 Of 15)
GTY699750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SEPARATE TYPE FRONT SEAT CUSHION COVER *2 SEPARATE TYPE FRONT SEAT CUSHION PAD
*3 HOG RING - -
• Non-reusable part - -

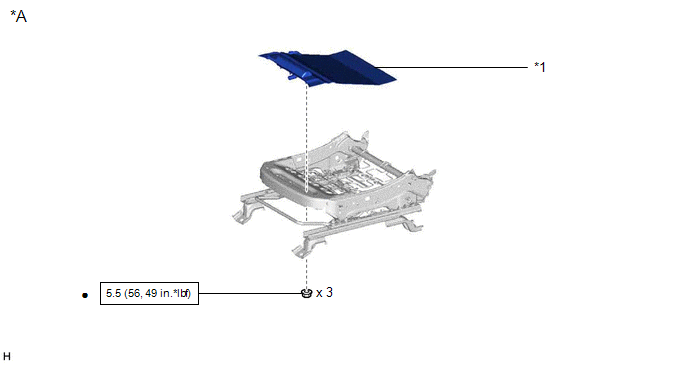

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (14 Of 15)
GTY688319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Front Passenger Side - -
*1 FRONT SEAT AIRBAG SUB-ASSEMBLY RH - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

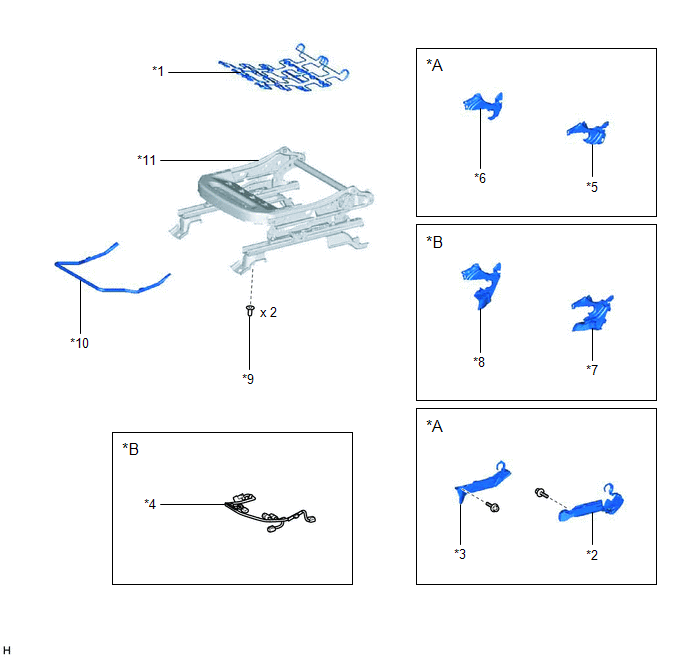

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (15 Of 15)
GTY705247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Driver Side *B for Front Passenger Side
*1 FRONT SEAT CUSHION SPRING SUB-ASSEMBLY *2 FRONT SEAT LOWER CUSHION SHIELD LH
*3 FRONT SEAT LOWER CUSHION SHIELD RH *4 FRONT SEAT WIRE
*5 LH SEAT FRONT SEAT CUSHION EDGE PROTECTOR LH *6 LH SEAT FRONT SEAT CUSHION EDGE PROTECTOR RH
*7 RH SEAT FRONT SEAT CUSHION EDGE PROTECTOR LH *8 RH SEAT FRONT SEAT CUSHION EDGE PROTECTOR RH
*9 SEAT ADJUSTER COVER CAP *10 SEAT TRACK ADJUSTING HANDLE
*11 FRONT SEAT ADJUSTER ASSEMBLY - -
