Components [02/2014 - 11/2016]: Illustration

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

DECK BOARD ASSEMBLY

*2

NO. 3 DECK BOARD SUB-ASSEMBLY

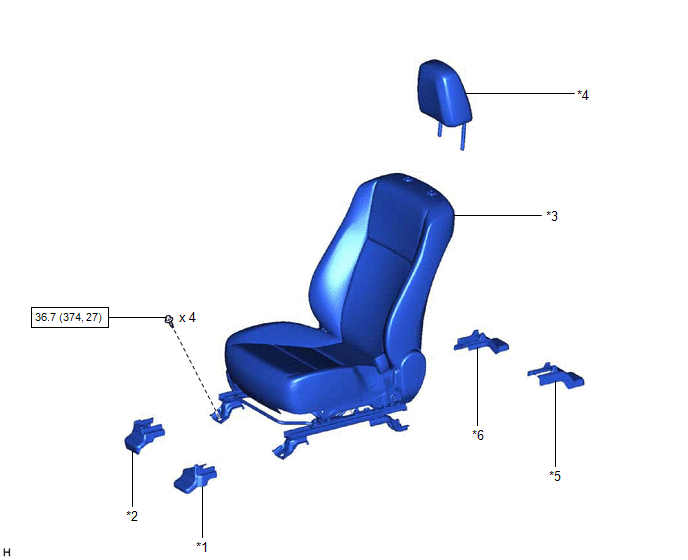

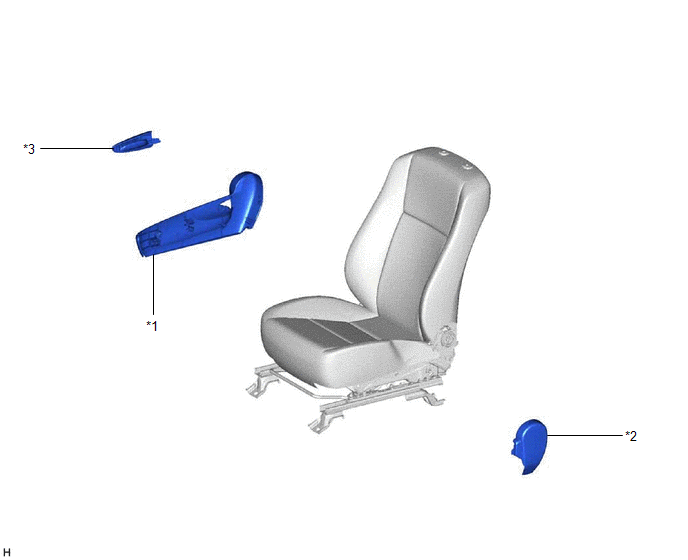

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description

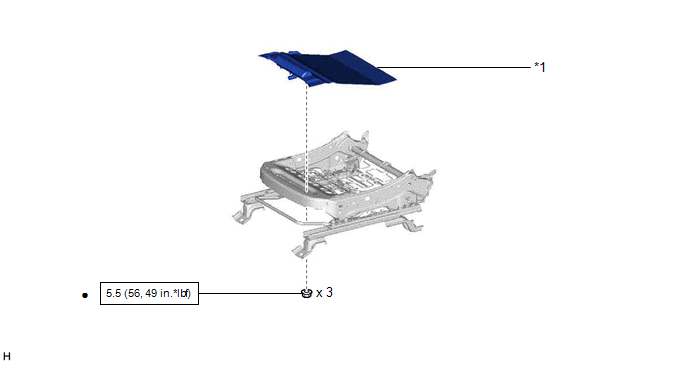

*1	FRONT INNER SEAT TRACK BRACKET COVER	*2	FRONT OUTER SEAT TRACK BRACKET COVER
*3	FRONT SEAT ASSEMBLY	*4	FRONT SEAT HEADREST ASSEMBLY
*5	INNER SEAT TRACK BRACKET COVER	*6	SEAT TRACK COVER
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

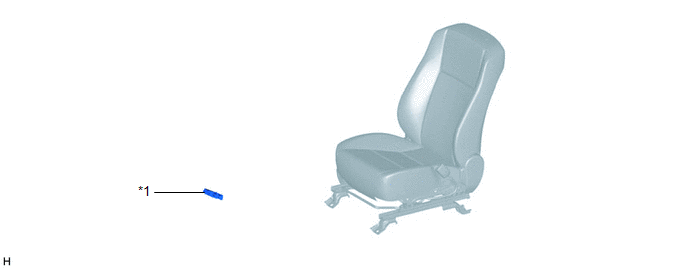

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

OCCUPANT DETECTION ECU

-

-

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

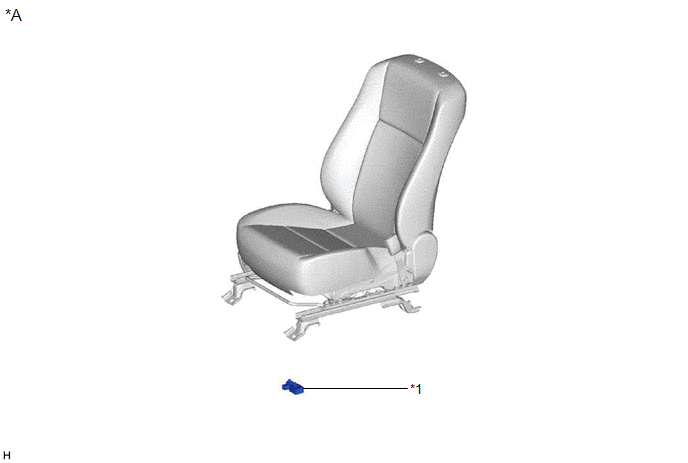

*A	w/ Seat Heater System	-	-
*1	SEAT HEATER CONTROL SUB-ASSEMBLY	-	-

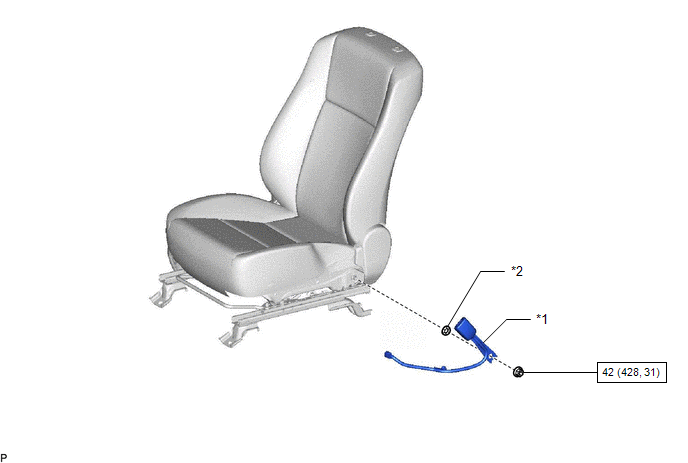

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SEAT INNER BELT ASSEMBLY RH	*2	FRONT SEAT BELT ANCHOR PLATE
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT SEAT CUSHION SHIELD	*2	FRONT SEAT INNER CUSHION SHIELD
*3	RECLINING ADJUSTER RELEASE HANDLE	-	-

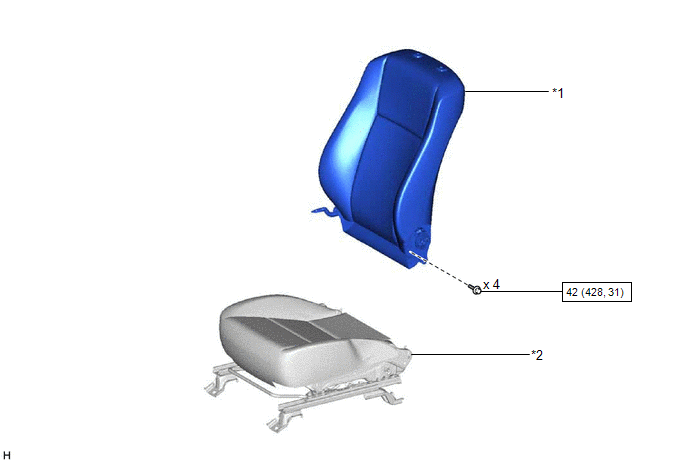

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SEAT HEADREST SUPPORT ASSEMBLY	*2	SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
*3	HOG RING	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

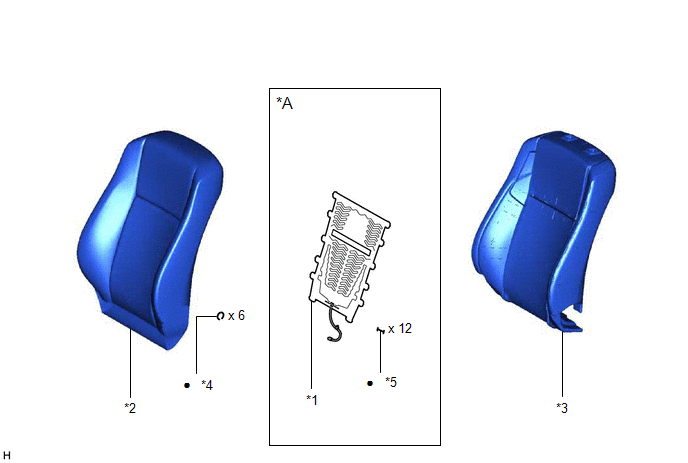

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Seat Heater System	-	-
*1	FRONT SEATBACK HEATER ASSEMBLY	*2	SEPARATE TYPE FRONT SEATBACK COVER
*3	SEPARATE TYPE FRONT SEATBACK PAD	*4	HOG RING
*5	TAG PIN	-	-
•	Non-reusable part	-	-

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SEAT AIRBAG ASSEMBLY	*2	SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (11 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

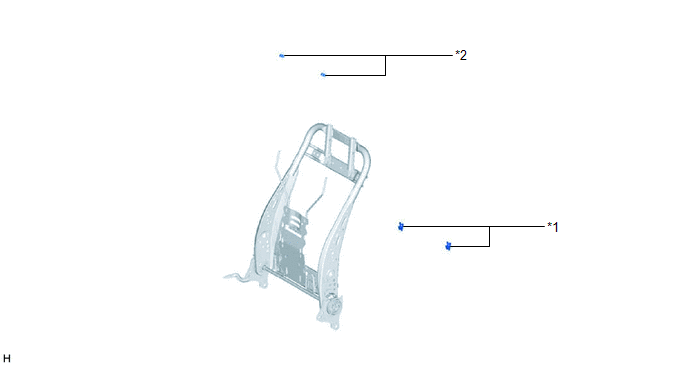

FRONT SEATBACK EDGE PROTECTOR

*2

FRONT SEATBACK HOOK

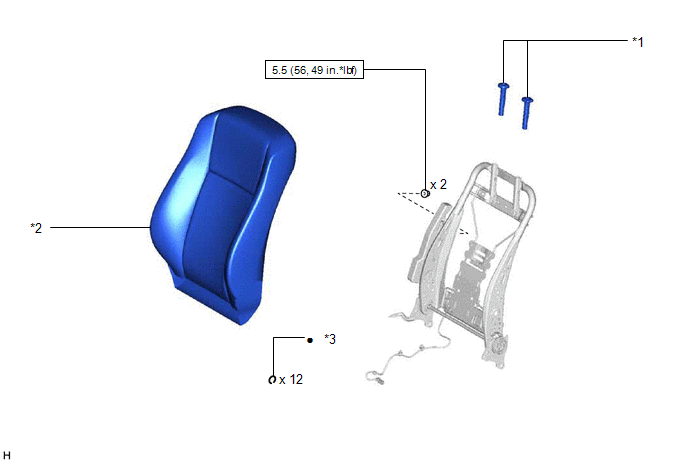

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (12 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

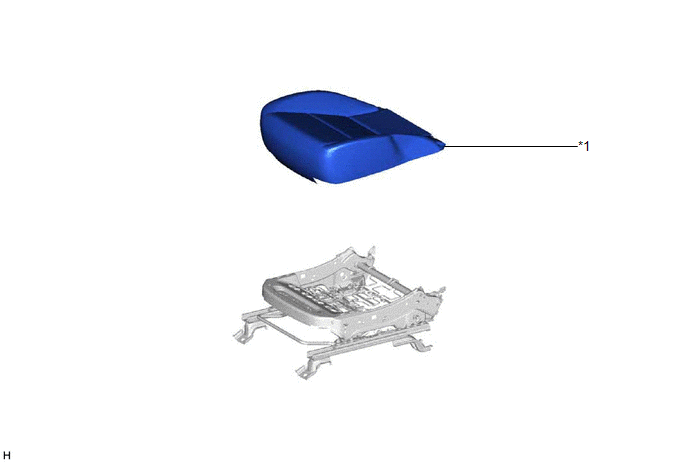

SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

-

-

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (13 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Seat Heater System	-	-

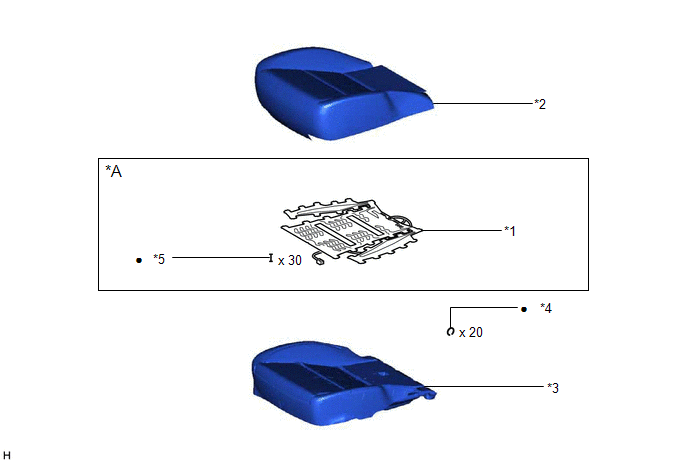

*1	FRONT SEAT CUSHION HEATER ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION COVER
*3	SEPARATE TYPE FRONT SEAT CUSHION PAD	*4	HOG RING
*5	TAG PIN	-	-
•	Non-reusable part	-	-

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (14 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description

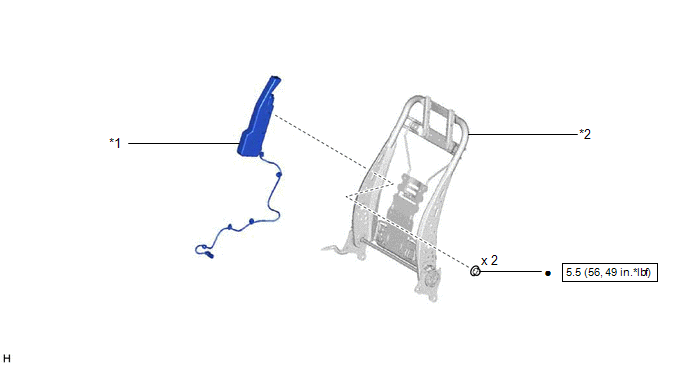

*1	FRONT SEAT AIRBAG SUB-ASSEMBLY RH	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

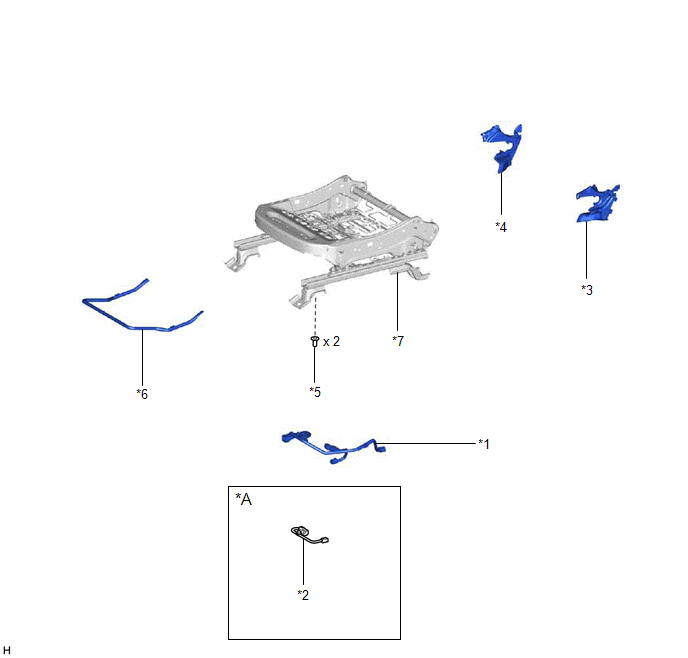

Fig 1: Front Seat Assembly (For Manual Seat) Replacement Components (15 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Seat Heater System	-	-
*1	FRONT SEAT WIRE	*2	NO. 1 SEAT WIRE
*3	RH SEAT FRONT SEAT CUSHION EDGE PROTECTOR LH	*4	RH SEAT FRONT SEAT CUSHION EDGE PROTECTOR RH
*5	SEAT ADJUSTER COVER CAP	*6	SEAT TRACK ADJUSTING HANDLE
*7	SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY	-	-
