Installation [02/2014 - ]: Procedure

  1. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY
    1. Engage the 2 clamps to install the seat heater control sub-assembly to the rear No. 1 seat assembly.
    2. Connect the 2 connectors.
    3. Using hog ring pliers, install 2 new hog rings.

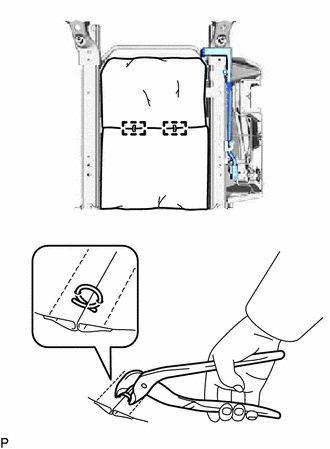

      GTY454761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the separate type rear seat cushion cover.
      • Be sure to securely install the hog rings as shown in the illustration.
  2. INSTALL REAR NO. 1 SEAT ASSEMBLY

    Refer to INSTALLATION [02/2014 - ]
