Installation [02/2014 - ]: Procedure

  1. INSTALL SEAT HEATER ASSEMBLY

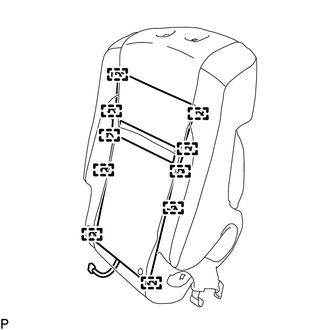

    1. Install the seat heater assembly to the separate type rear seatback cover with 10 new tag pins.
      NOTE:

      Be careful not to damage the separate type rear seatback cover.

      GTY435372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SEPARATE TYPE REAR SEATBACK COVER

    See step  14 , or see step  14

  3. INSTALL REAR SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 20 , or refer to PROCEDURE - Step 20

  4. INSTALL REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY

    See step  16 , or see step  16

  5. INSTALL NO. 2 REAR SEAT COVER BEZEL

    See step  17 , or see step  17

  6. INSTALL REAR SEATBACK LOCK STRIKER COVER

    See step  18 , or see step  18

  7. INSTALL RECLINING REMOTE CONTROL LEVER KNOB

    See step  19 , or see step  19

  8. INSTALL REAR SEATBACK BOARD CARPET ASSEMBLY

    See step  20 , or see step  20

  9. INSTALL REAR SEATBACK COVER

    See step  21 , or see step  21

  10. INSTALL SEAT ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 27 , or refer to PROCEDURE - Step 27

  11. INSTALL NO. 1 SEAT ARMREST CAP

    Refer to PROCEDURE - Step 28 , or refer to PROCEDURE - Step 28

  12. INSTALL REAR SEAT CUSHION COVER WITH PAD

    See step  23 , or see step  23

  13. CONNECT REAR SEATBACK HEATER HARNESS

    Refer to PROCEDURE - Step 34 , or refer to PROCEDURE - Step 34

  14. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY

    See step  24 , or see step  25

  15. INSTALL REAR NO. 1 SEATBACK LOCK STRIKER COVER

    See step  25 , or see step  26

  16. INSTALL RECLINING ADJUSTER RELEASE HANDLE

    See step  26 , or see step  27

  17. INSTALL REAR SEAT COVER CAP

    See step  27 , or see step  28

  18. INSTALL REAR SEAT SIDE TABLE ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 42 , or refer to PROCEDURE - Step 43

  19. INSTALL NO. 2 REAR SEAT SIDE TABLE COVER (for RH Side)

    Refer to PROCEDURE - Step 43 , or refer to PROCEDURE - Step 44

  20. INSTALL NO. 1 REAR SEAT SIDE TABLE COVER (for RH Side)

    Refer to PROCEDURE - Step 44 , or refer to PROCEDURE - Step 45

  21. INSTALL REAR NO. 1 SEAT ASSEMBLY

    Refer to INSTALLATION [02/2014 - ]
