Components [02/2014 - ]: Illustration

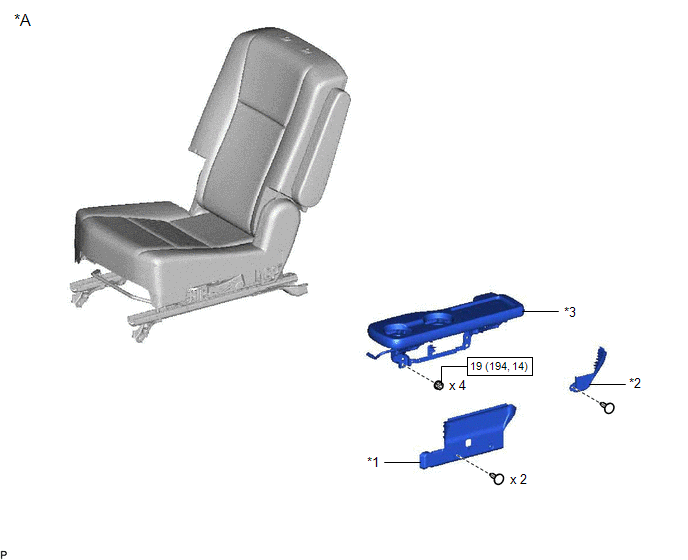

Fig 1: Rear Seatback Heater Replacement Components With Torque Specifications (1 Of 3)
GTY442663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for RH Side - -
*1 NO. 1 REAR SEAT SIDE TABLE COVER *2 NO. 2 REAR SEAT SIDE TABLE COVER
*3 REAR SEAT SIDE TABLE ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

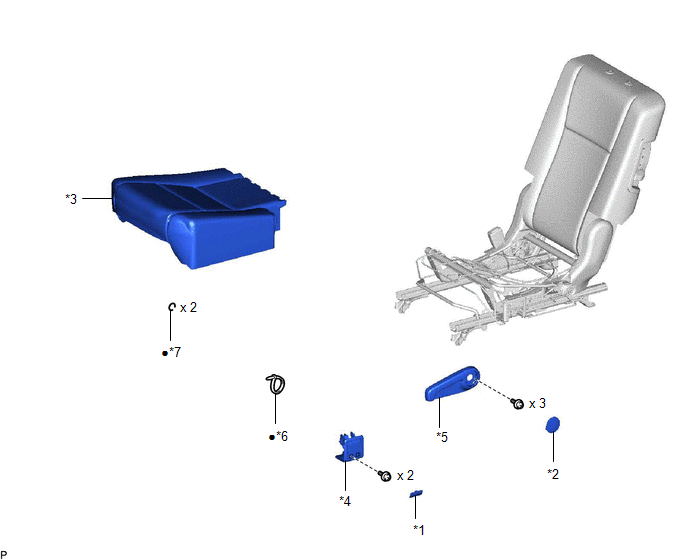

Fig 1: Rear Seatback Heater Replacement Components (2 Of 3)
GTY438380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR NO. 1 SEATBACK LOCK STRIKER COVER *2 REAR SEAT COVER CAP
*3 REAR SEAT CUSHION COVER WITH PAD *4 REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY
*5 RECLINING ADJUSTER RELEASE HANDLE *6 WIRE HARNESS CLAMP
*7 HOG RING - -
• Non-reusable part - -

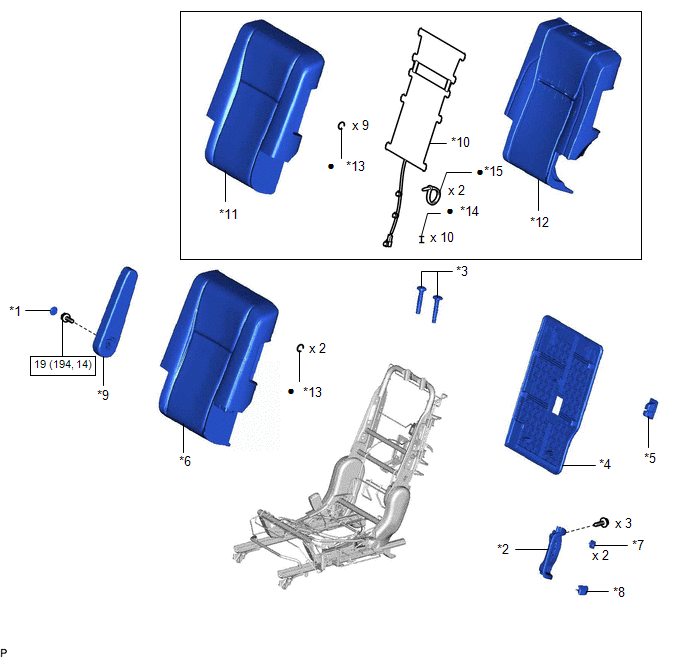

Fig 1: Rear Seatback Heater Replacement Components With Torque Specifications (3 Of 3)
GTY427008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 SEAT ARMREST CAP *2 NO. 2 REAR SEAT COVER BEZEL
*3 REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY *4 REAR SEATBACK BOARD CARPET ASSEMBLY
*5 REAR SEATBACK COVER *6 REAR SEATBACK COVER WITH PAD
*7 REAR SEATBACK LOCK STRIKER COVER *8 RECLINING REMOTE CONTROL LEVER KNOB
*9 SEAT ARMREST ASSEMBLY *10 SEAT HEATER ASSEMBLY
*11 SEPARATE TYPE REAR SEATBACK COVER *12 SEPARATE TYPE REAR SEATBACK PAD
*13 HOG RING *14 TAG PIN
*15 WIRE HARNESS CLAMP - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
