Installation [02/2014 - ]: Procedure

  1. INSTALL SEAT HEATER ASSEMBLY

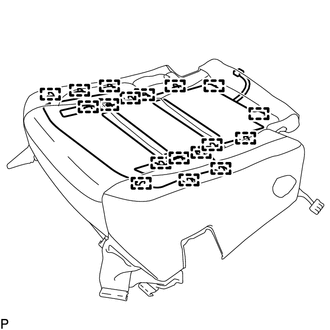

    1. Install the seat heater assembly to the separate type rear seat cushion cover with 18 new tag pins.
      NOTE:

      Be careful not to damage the separate type rear seat cushion cover.

      GTY435398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SEPARATE TYPE REAR SEAT CUSHION COVER

    See step  22 , or see step  22

  3. INSTALL REAR SEAT CUSHION COVER WITH PAD

    See step  23 , or see step  23

  4. CONNECT REAR SEAT CUSHION HEATER HARNESS

    Refer to PROCEDURE - Step 33 , or refer to PROCEDURE - Step 33

  5. CONNECT REAR SEATBACK HEATER HARNESS

    Refer to PROCEDURE - Step 34 , or refer to PROCEDURE - Step 34

  6. INSTALL REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY

    See step  24 , or see step  25

  7. INSTALL REAR NO. 1 SEATBACK LOCK STRIKER COVER

    See step  25 , or see step  26

  8. INSTALL RECLINING ADJUSTER RELEASE HANDLE

    See step  26 , or see step  27

  9. INSTALL REAR SEAT COVER CAP

    See step  27 , or see step  28

  10. INSTALL REAR SEAT SIDE TABLE ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 42 , or refer to PROCEDURE - Step 43

  11. INSTALL NO. 2 REAR SEAT SIDE TABLE COVER (for RH Side)

    Refer to PROCEDURE - Step 43 , or refer to PROCEDURE - Step 44

  12. INSTALL NO. 1 REAR SEAT SIDE TABLE COVER (for RH Side)

    Refer to PROCEDURE - Step 44 , or refer to PROCEDURE - Step 45

  13. INSTALL REAR NO. 1 SEAT ASSEMBLY

    Refer to INSTALLATION [02/2014 - ]
