Components [02/2014 - ]: Illustration

Fig 1: Rear Seat Cushion Heater Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for RH Side	-	-
*1	NO. 1 REAR SEAT SIDE TABLE COVER	*2	NO. 2 REAR SEAT SIDE TABLE COVER
*3	REAR SEAT SIDE TABLE ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

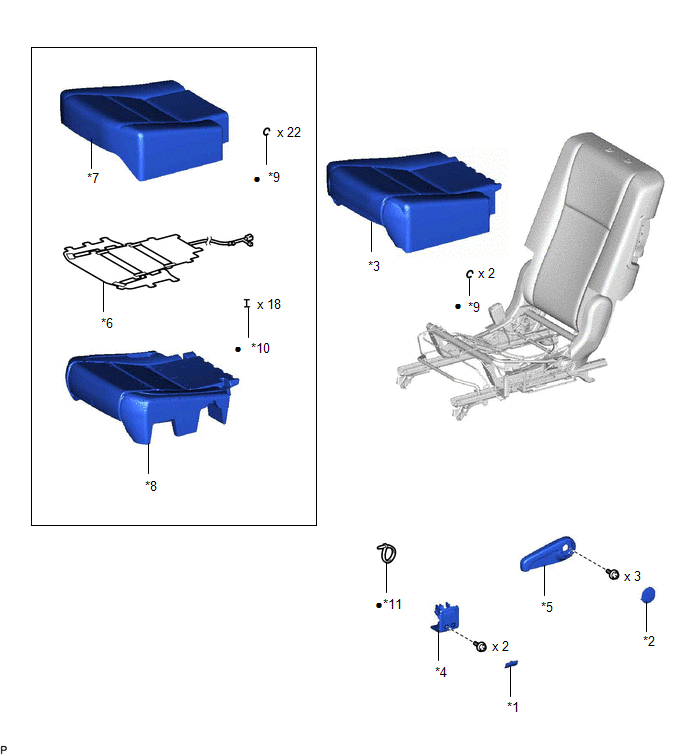

Fig 1: Rear Seat Cushion Heater Replacement Components (2 Of 2)

*1	REAR NO. 1 SEATBACK LOCK STRIKER COVER	*2	REAR SEAT COVER CAP
*3	REAR SEAT CUSHION COVER WITH PAD	*4	REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY
*5	RECLINING ADJUSTER RELEASE HANDLE	*6	SEAT HEATER ASSEMBLY
*7	SEPARATE TYPE REAR SEAT CUSHION COVER	*8	SEPARATE TYPE REAR SEAT CUSHION PAD
*9	HOG RING	*10	TAG PIN
*11	WIRE HARNESS CLAMP	-	-
•	Non-reusable part	-	-
