Components [11/2016 - ]: Illustration

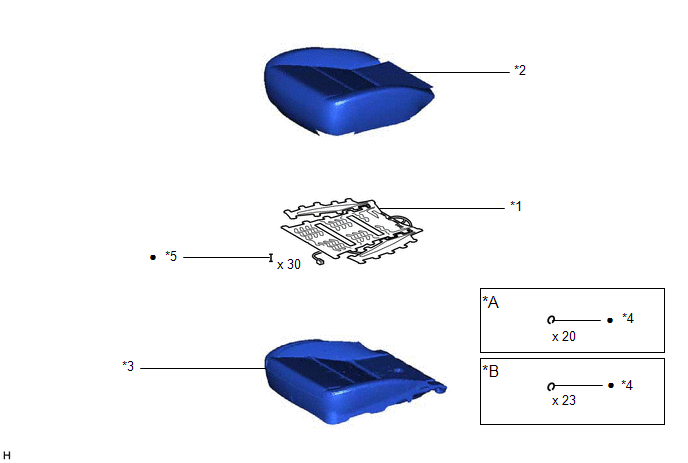

Fig 1: Front Seat Cushion Heater Replacement Components
GTY738957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Variable Seat Cushion System *B w/o Variable Seat Cushion System
*1 FRONT SEAT CUSHION HEATER ASSEMBLY *2 SEPARATE TYPE FRONT SEAT CUSHION COVER
*3 SEPARATE TYPE FRONT SEAT CUSHION PAD *4 HOG RING
*5 TAG PIN - -
• Non-reusable part - -
