Components [02/2014 - 11/2016]: Illustration

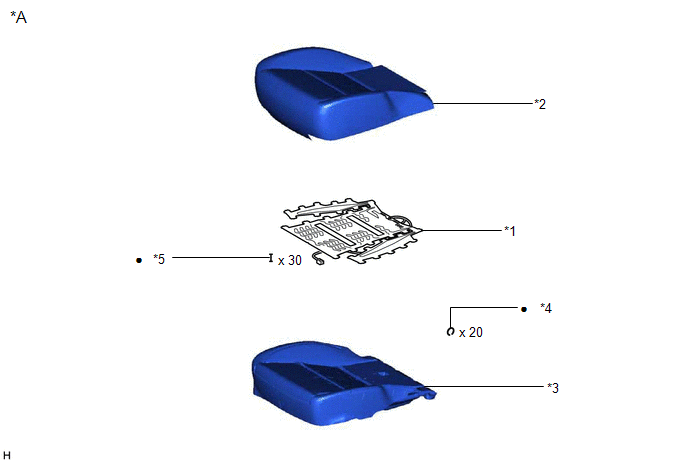

Fig 1: Front Seat Cushion Heater Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Manual Seat	-	-
*1	FRONT SEAT CUSHION HEATER ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION COVER
*3	SEPARATE TYPE FRONT SEAT CUSHION PAD	*4	HOG RING
*5	TAG PIN	-	-
•	Non-reusable part	-	-

Fig 1: Front Seat Cushion Heater Replacement Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Power Seat	*B	w/ Variable Seat Cushion System
*C	w/o Variable Seat Cushion System	-	-
*1	FRONT SEAT CUSHION HEATER ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION COVER
*3	SEPARATE TYPE FRONT SEAT CUSHION PAD	*4	HOG RING
*5	TAG PIN	-	-
•	Non-reusable part	-	-
