Components [02/2014 - 11/2015]: Illustration

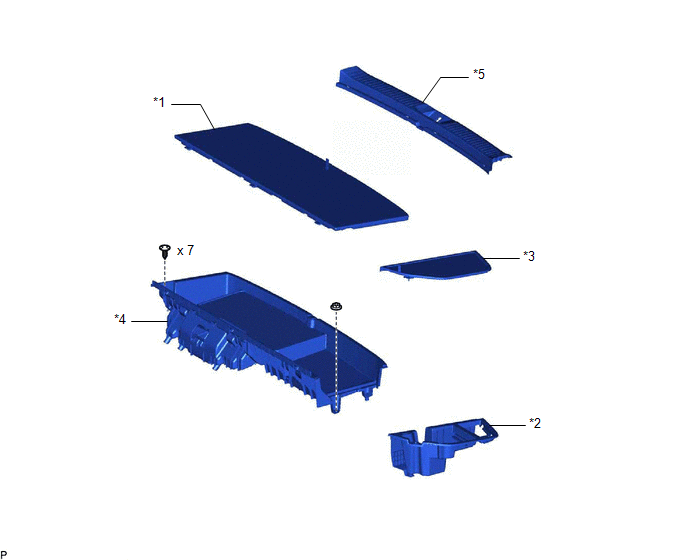

Fig 1: Roof Headlining Replacement Components (1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DECK BOARD ASSEMBLY	*2	DECK SIDE TRIM BOX LH
*3	NO. 3 DECK BOARD SUB-ASSEMBLY	*4	REAR DECK FLOOR BOX
*5	REAR FLOOR FINISH PLATE	-	-

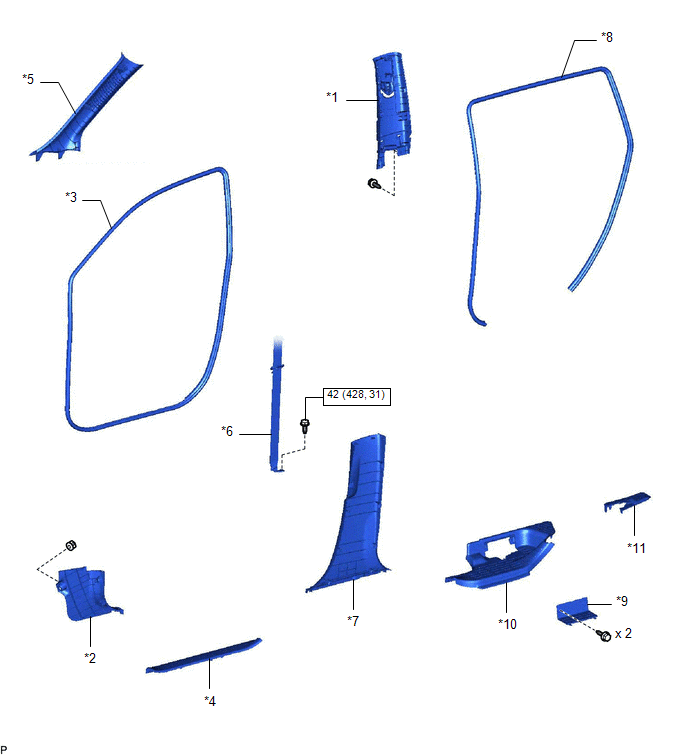

Fig 1: Roof Headlining Replacement Components With Torque Specifications (2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CENTER PILLAR GARNISH LH	*2	COWL SIDE TRIM SUB-ASSEMBLY LH
*3	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	*4	FRONT DOOR SCUFF PLATE LH
*5	FRONT PILLAR GARNISH LH	*6	FRONT SEAT OUTER BELT ASSEMBLY LH
*7	LOWER CENTER PILLAR GARNISH LH	*8	REAR DOOR OPENING TRIM WEATHERSTRIP LH
*9	REAR DOOR SCUFF PANEL LH	*10	REAR DOOR SCUFF PLATE LH
*11	REAR OUTER SEAT TRACK BRACKET COVER LH	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

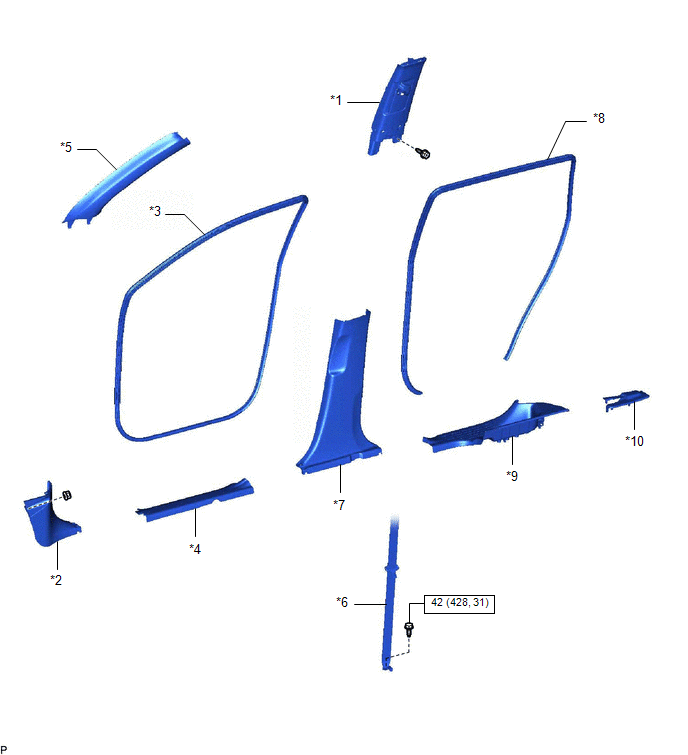

Fig 1: Roof Headlining Replacement Components With Torque Specifications (3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CENTER PILLAR GARNISH RH	*2	COWL SIDE TRIM SUB-ASSEMBLY RH
*3	FRONT DOOR OPENING TRIM WEATHERSTRIP RH	*4	FRONT DOOR SCUFF PLATE RH
*5	FRONT PILLAR GARNISH RH	*6	FRONT SEAT OUTER BELT ASSEMBLY RH
*7	LOWER CENTER PILLAR GARNISH RH	*8	REAR DOOR OPENING TRIM WEATHERSTRIP RH
*9	REAR DOOR SCUFF PLATE RH	*10	REAR OUTER SEAT TRACK BRACKET COVER RH
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

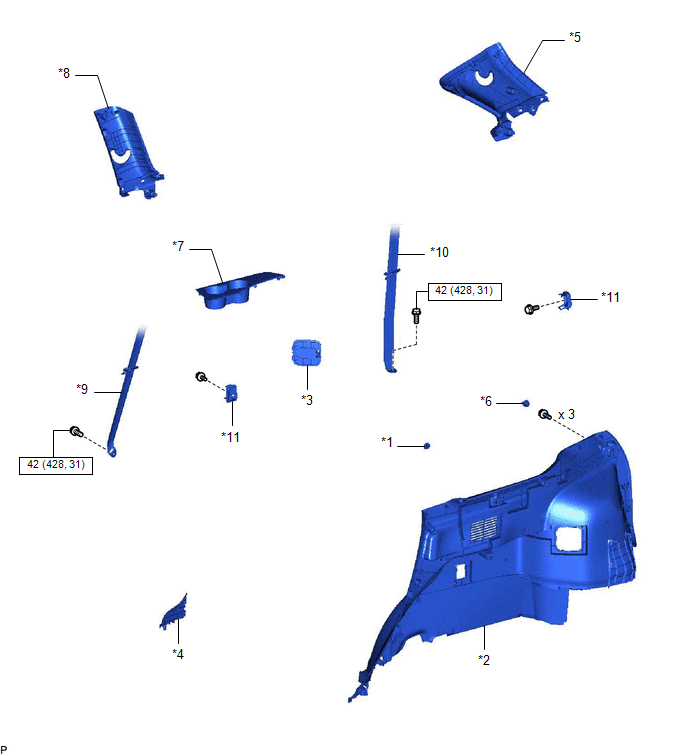

Fig 1: Roof Headlining Replacement Components With Torque Specifications (4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	DECK TRIM POCKET COVER	*2	DECK TRIM SIDE PANEL ASSEMBLY LH
*3	DECK TRIM SIDE SERVICE HOLE COVER	*4	FRONT DECK SIDE TRIM COVER LH
*5	INNER ROOF SIDE GARNISH ASSEMBLY LH	*6	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
*7	NO. 2 DECK SIDE TRIM COVER	*8	QUARTER PILLAR GARNISH LH
*9	REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH	*10	REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH
*11	ROPE HOOK	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

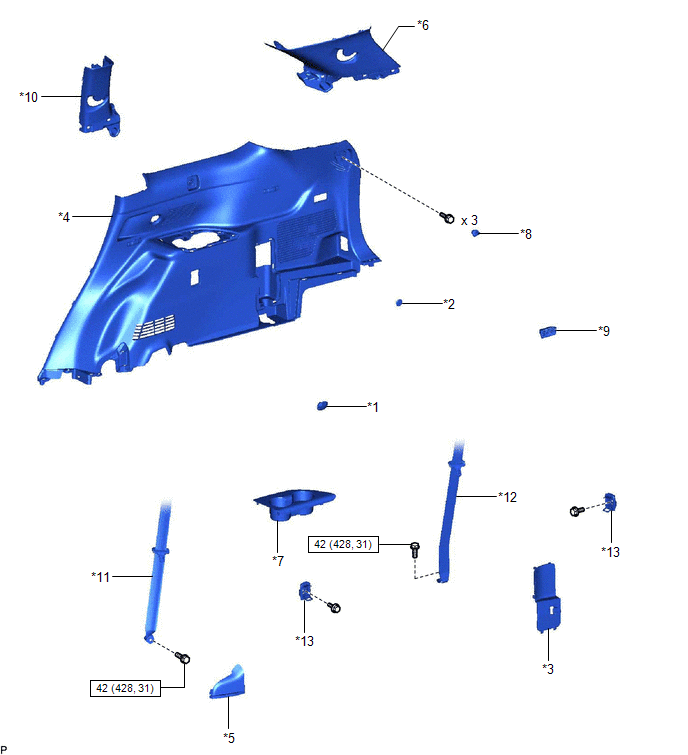

Fig 1: Roof Headlining Replacement Components With Torque Specifications (5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR	*2	DECK TRIM POCKET COVER
*3	DECK TRIM SIDE BELT HOLE COVER RH	*4	DECK TRIM SIDE PANEL ASSEMBLY RH
*5	FRONT DECK SIDE TRIM COVER RH	*6	INNER ROOF SIDE GARNISH ASSEMBLY RH
*7	NO. 1 DECK SIDE TRIM COVER	*8	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
*9	NO. 1 ROOM LIGHT ASSEMBLY	*10	QUARTER PILLAR GARNISH RH
*11	REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH	*12	REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH
*13	ROPE HOOK	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

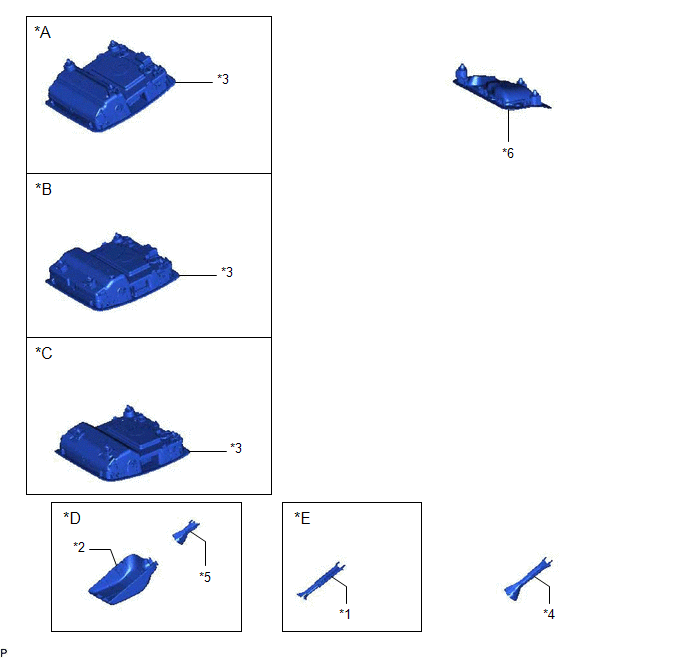

Fig 1: Roof Headlining Replacement Components (6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Normal Roof	*B	for Sliding Roof
*C	for Panoramic Moon Roof	*D	w/ Lane Departure Alert System
*E	w/ EC Mirror	-	-
*1	INNER REAR VIEW MIRROR STAY HOLDER COVER	*2	LANE DEPARTURE WARNING CAMERA COVER
*3	MAP LIGHT ASSEMBLY	*4	PROTECTOR
*5	RAIN SENSOR COVER	*6	UPPER SHOULDER BELT ANCHOR COVER

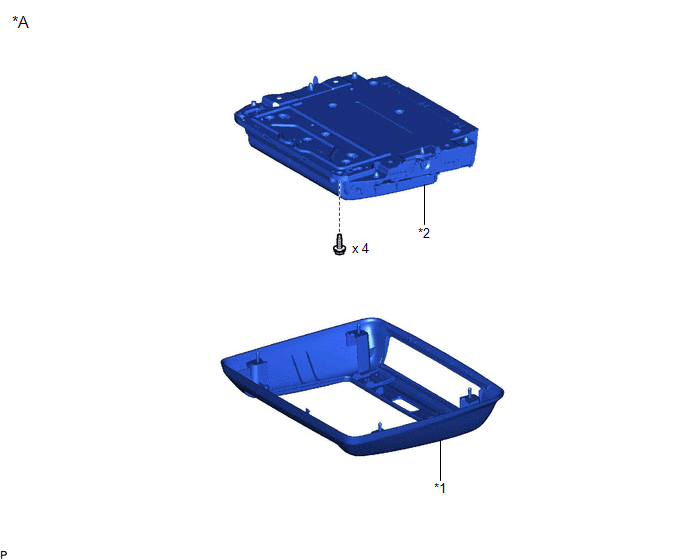

Fig 1: Roof Headlining Replacement Components (7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Rear Seat Entertainment System	-	-
*1	TELEVISION BASE	*2	TELEVISION DISPLAY ASSEMBLY

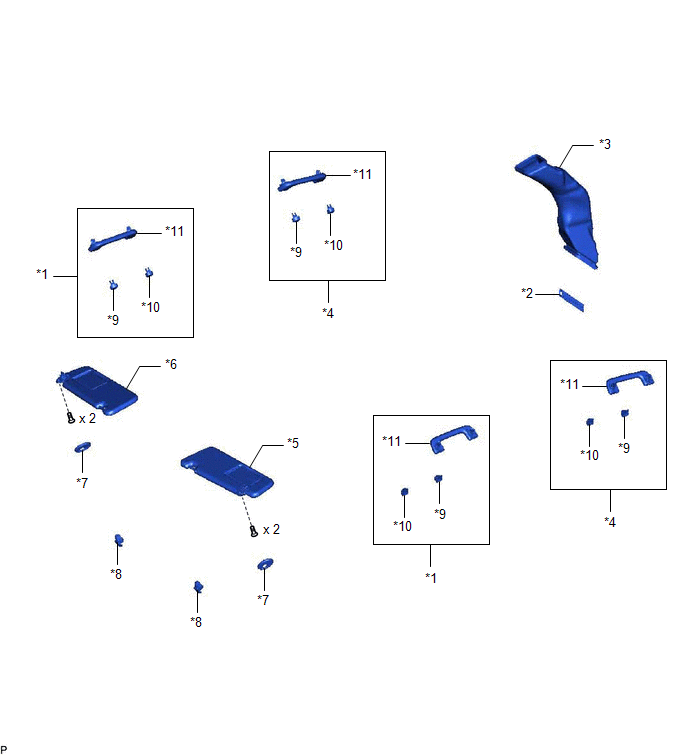

Fig 1: Roof Headlining Replacement Components (8 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ASSIST GRIP SUB-ASSEMBLY	*2	COOLER PLATE
*3	NO. 1 COOLER AIR DUCT	*4	REAR ASSIST GRIP ASSEMBLY
*5	VISOR ASSEMBLY LH	*6	VISOR ASSEMBLY RH
*7	VISOR BRACKET COVER	*8	VISOR HOLDER
*9	ASSIST GRIP COVER LH	*10	ASSIST GRIP COVER RH
*11	ASSIST GRIP	-	-

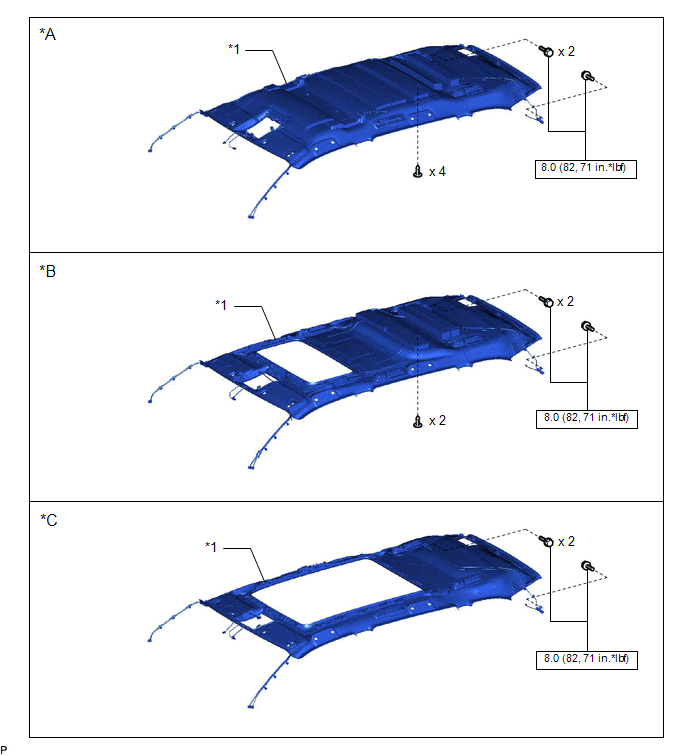

Fig 1: Roof Headlining Replacement Components With Torque Specifications (9 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Normal Roof	*B	for Sliding Roof
*C	for Panoramic Moon Roof	-	-
*1	ROOF HEADLINING ASSEMBLY	-	-
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

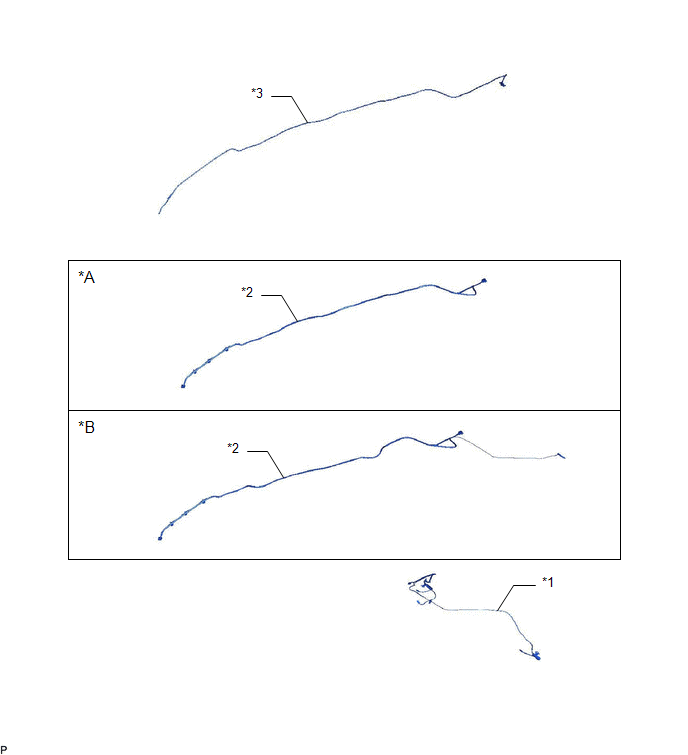

Fig 1: Roof Headlining Replacement Components (10 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Satellite Radio	*B	w/ Satellite Radio
*1	NO. 1 AMPLIFIER ANTENNA ASSEMBLY	*2	NO. 2 ANTENNA CORD SUB-ASSEMBLY
*3	REAR WASHER HOSE ASSEMBLY	-	-

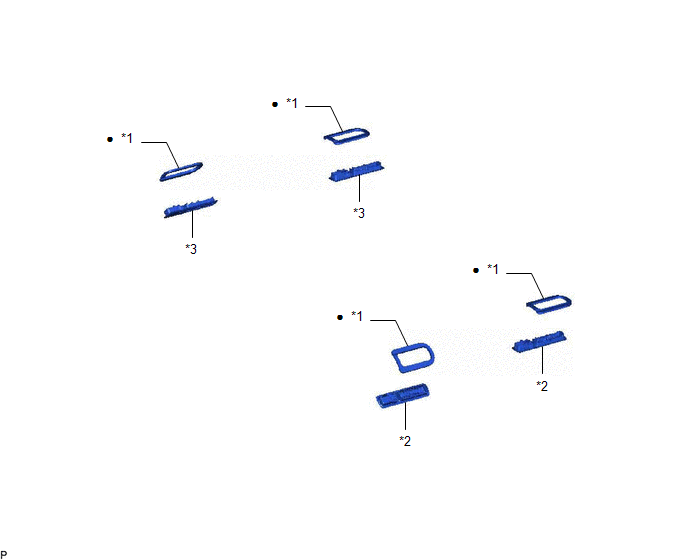

Fig 1: Roof Headlining Replacement Components (11 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR DUCT SEAL	*2	SPOT LIGHT ASSEMBLY LH
*3	SPOT LIGHT ASSEMBLY RH	-	-
•	Non-reusable part	-	-

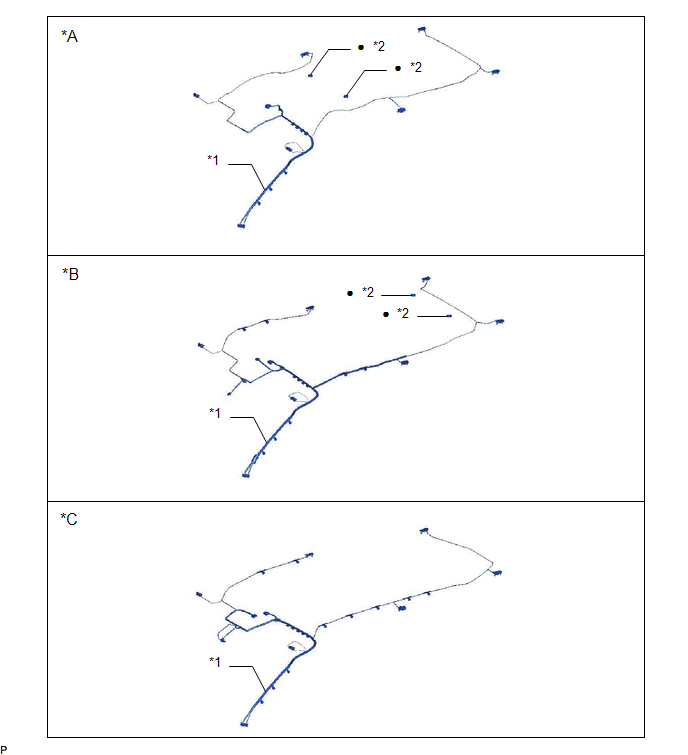

Fig 1: Roof Headlining Replacement Components (12 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Normal Roof	*B	for Sliding Roof
*C	for Panoramic Moon Roof	-	-
*1	NO. 1 ROOF WIRE	*2	ROOF HEADLINING SUPPORT PLATE
•	Non-reusable part	-	-
