Components [02/2014 - ]: Illustration

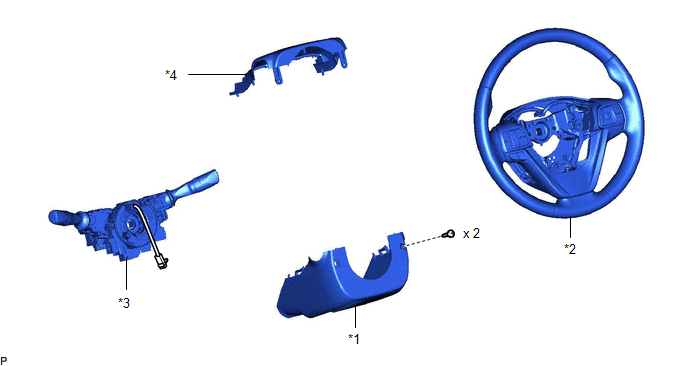

Fig 1: Instrument Panel Safety Pad Replacement Components (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LOWER STEERING COLUMN COVER	*2	STEERING WHEEL ASSEMBLY
*3	TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY	*4	UPPER STEERING COLUMN COVER

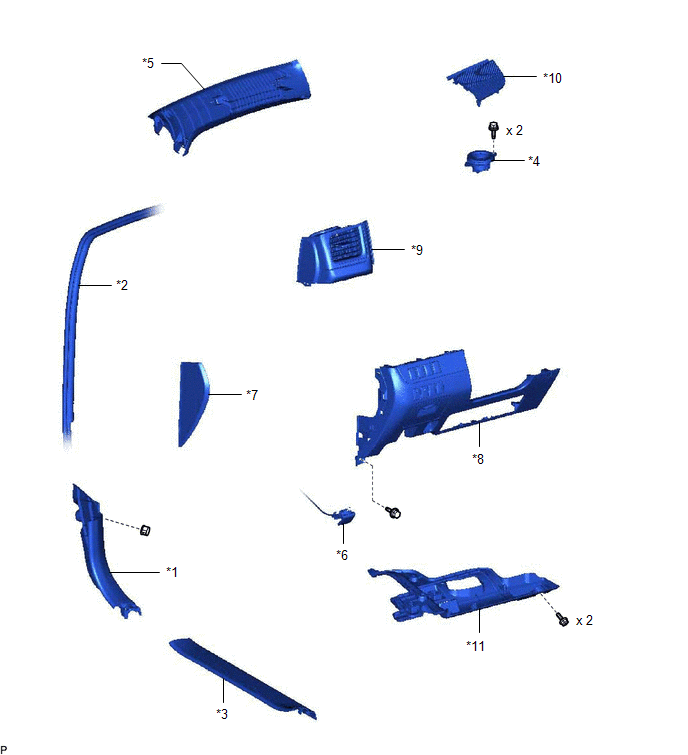

Fig 1: Instrument Panel Safety Pad Replacement Components (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COWL SIDE TRIM SUB-ASSEMBLY LH	*2	FRONT DOOR OPENING TRIM WEATHERSTRIP LH
*3	FRONT DOOR SCUFF PLATE LH	*4	FRONT NO. 2 SPEAKER ASSEMBLY
*5	FRONT PILLAR GARNISH LH	*6	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*7	INSTRUMENT PANEL FINISH PANEL END LH	*8	LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
*9	NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY	*10	NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
*11	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	-	-

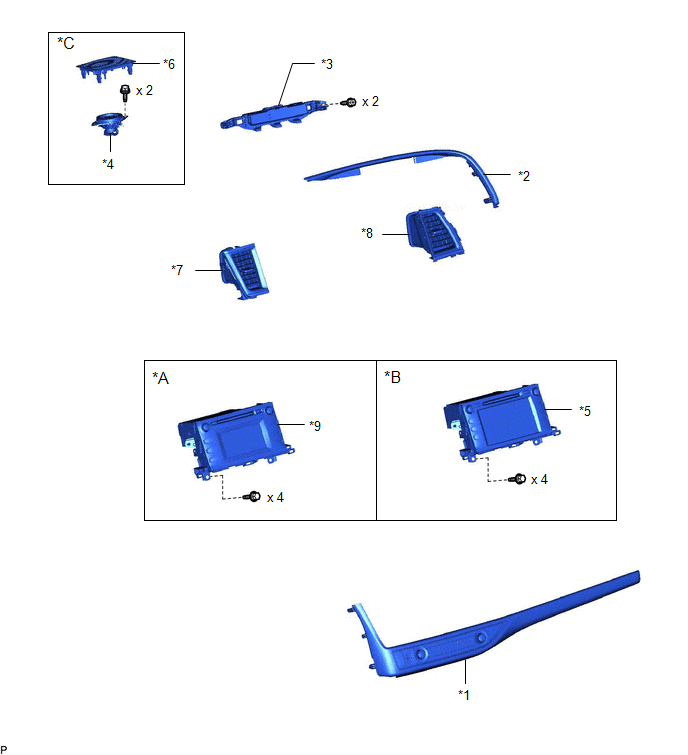

Fig 1: Instrument Panel Safety Pad Replacement Components (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Radio and Display Type	*B	for Navigation Receiver Type
*C	for 12 Speakers	-	-
*1	CENTER INSTRUMENT CLUSTER FINISH PANEL WITH AIR CONDITIONING CONTROL ASSEMBLY	*2	CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
*3	CLOCK ASSEMBLY	*4	FRONT NO. 3 SPEAKER ASSEMBLY
*5	NAVIGATION RECEIVER ASSEMBLY WITH BRACKET	*6	NO. 1 SPEAKER OPENING COVER ASSEMBLY
*7	NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY	*8	NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
*9	RADIO RECEIVER ASSEMBLY WITH BRACKET	-	-

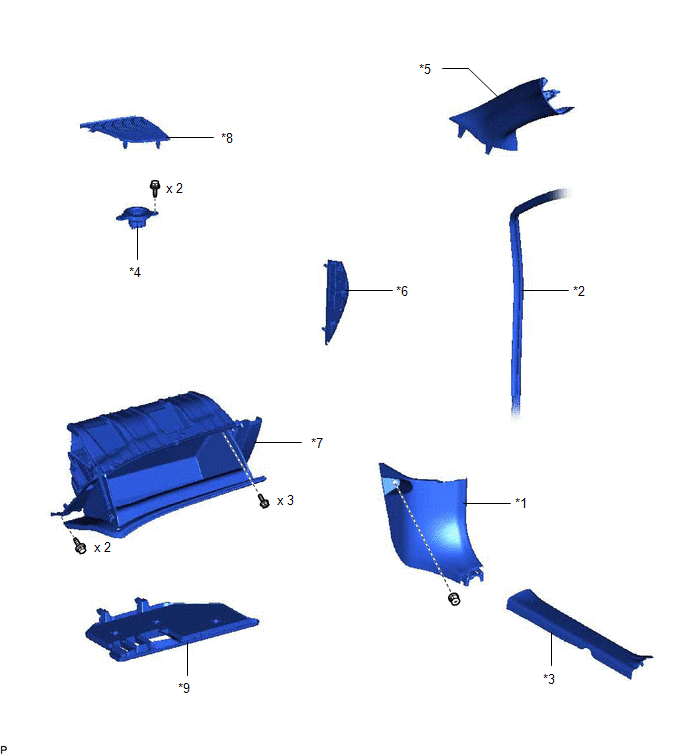

Fig 1: Instrument Panel Safety Pad Replacement Components (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COWL SIDE TRIM SUB-ASSEMBLY RH	*2	FRONT DOOR OPENING TRIM WEATHERSTRIP RH
*3	FRONT DOOR SCUFF PLATE RH	*4	FRONT NO. 2 SPEAKER ASSEMBLY
*5	FRONT PILLAR GARNISH RH	*6	INSTRUMENT PANEL FINISH PANEL END RH
*7	LOWER INSTRUMENT PANEL SUB-ASSEMBLY	*8	NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
*9	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	-	-

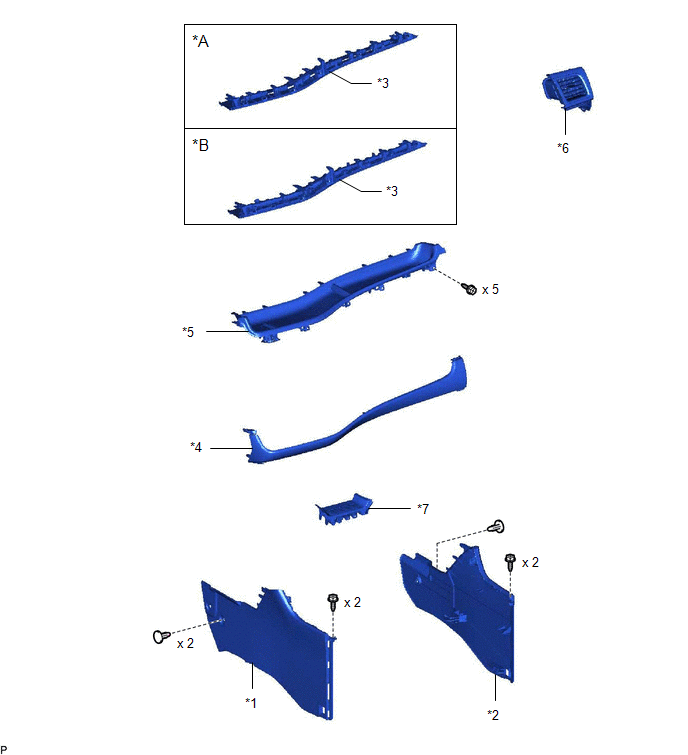

Fig 1: Instrument Panel Safety Pad Replacement Components (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Illumination	*B	w/o Illumination
*1	CONSOLE BOX INSERT	*2	FRONT NO. 2 CONSOLE BOX INSERT
*3	INSTRUMENT CLUSTER FINISH PANEL END	*4	INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
*5	INSTRUMENT PANEL FINISH PLATE	*6	NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
*7	NO. 2 SWITCH HOLE BASE	-	-

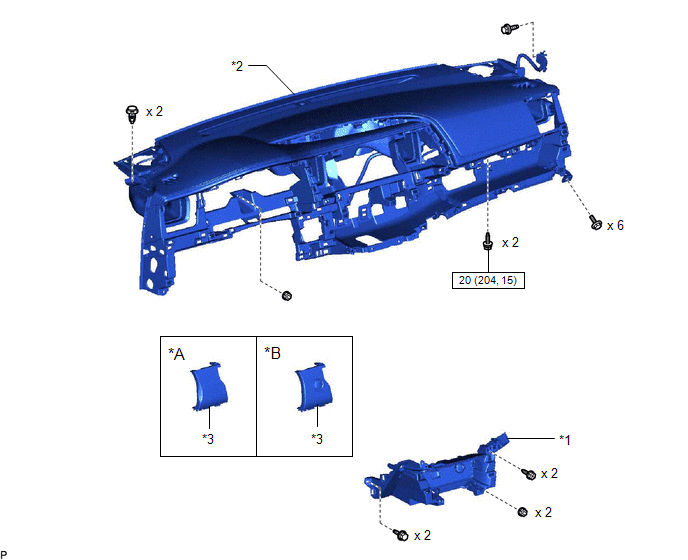

Fig 1: Instrument Panel Safety Pad Replacement Components With Torque Specifications (6 Of 8)

Callout	Description	Callout	Description
*A	w/o Smart Key System	*B	w/ Smart Key System
*1	CENTER LOWER INSTRUMENT PANEL FINISH PANEL	*2	INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
*3	NO. 1 SWITCH HOLE BASE	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

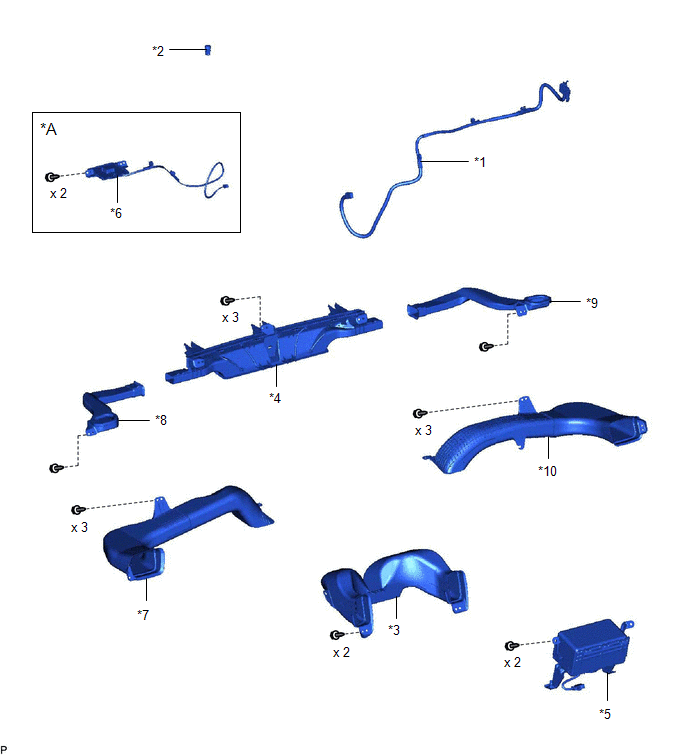

Fig 1: Instrument Panel Safety Pad Replacement Components (7 Of 8)

*A	w/ Navigation System	-	-
*1	ANTENNA CORD SUB-ASSEMBLY	*2	AUTOMATIC LIGHT CONTROL SENSOR
*3	CENTER HEATER TO REGISTER SUB DUCT	*4	DEFROSTER NOZZLE ASSEMBLY
*5	INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY	*6	NAVIGATION ANTENNA ASSEMBLY
*7	NO. 1 HEATER TO REGISTER DUCT	*8	NO. 1 SIDE DEFROSTER NOZZLE DUCT
*9	NO. 2 SIDE DEFROSTER NOZZLE DUCT	*10	NO. 4 HEATER TO REGISTER DUCT

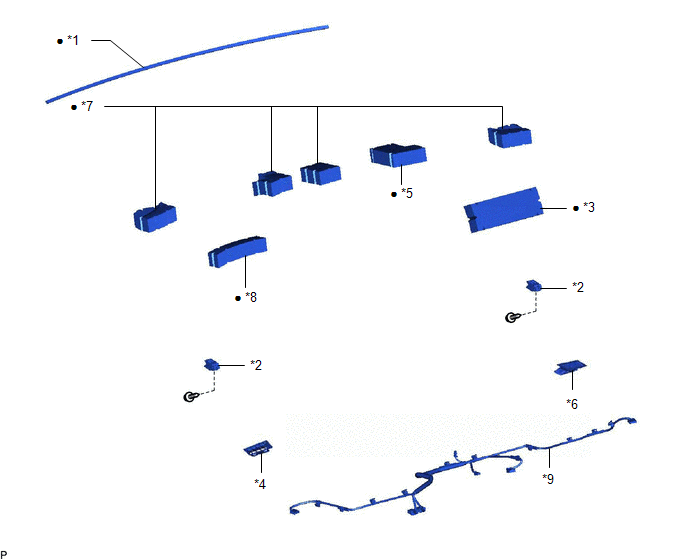

Fig 1: Instrument Panel Safety Pad Replacement Components (8 Of 8)
