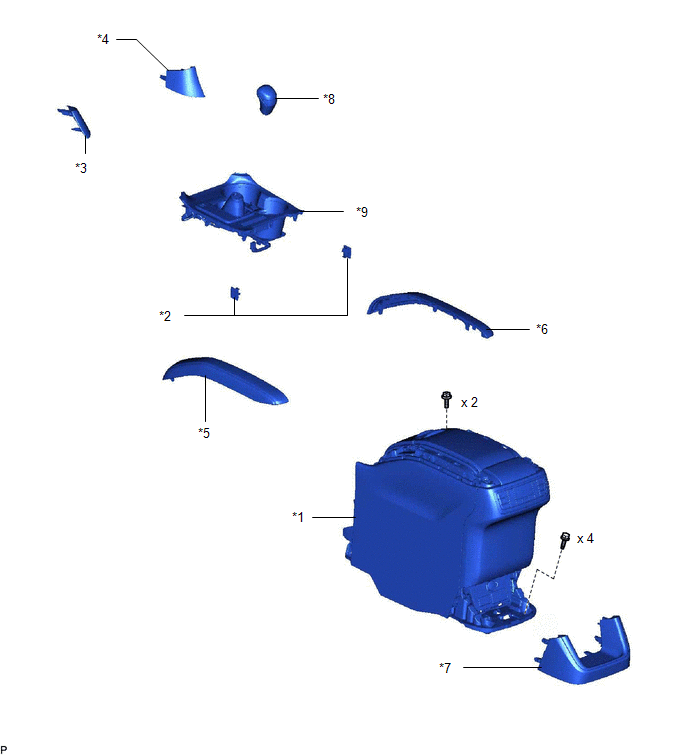

Components [02/2014 - ]: Illustration
| *1 | CONSOLE BOX ASSEMBLY | *2 | CONSOLE BOX HOLE COVER |
| *3 | FRONT PANEL GARNISH LH | *4 | FRONT PANEL GARNISH RH |
| *5 | NO. 1 CONSOLE UPPER PANEL GARNISH | *6 | NO. 2 CONSOLE UPPER PANEL GARNISH |
| *7 | REAR CONSOLE LOWER BOX | *8 | SHIFT LEVER KNOB SUB-ASSEMBLY |
| *9 | UPPER CONSOLE PANEL SUB-ASSEMBLY | - | - |

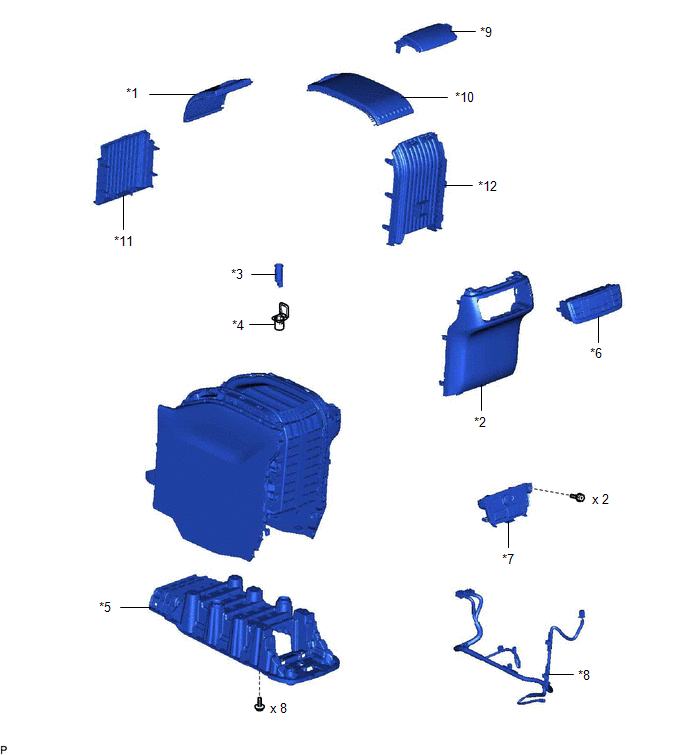

| *1 | CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY | *2 | CONSOLE REAR END PANEL SUB-ASSEMBLY |
| *3 | NO. 1 POWER OUTLET SOCKET ASSEMBLY | *4 | NO. 1 POWER OUTLET SOCKET COVER |
| *5 | NO. 1 TRASH BOX RETAINER SUPPORT | *6 | NO. 2 AIR CONDITIONING CONTROL ASSEMBLY |
| *7 | NO. 2 CONSOLE BOX HOLE COVER | *8 | REAR CONSOLE BOX WIRE |
| *9 | REAR CONSOLE COVER | *10 | UPPER CONSOLE DOOR SUB-ASSEMBLY |
| *11 | NO. 1 CONSOLE MOUNTING RETAINER | *12 | NO. 2 CONSOLE MOUNTING RETAINER |
