Removal [02/2014 - 11/2016]: Procedure

  1. REMOVE SYMBOL EMBLEM

    See step  9

  2. REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE
    1. Apply protective tape around the No. 2 luggage compartment door name plate.
      GTY443834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover, separate the double-sided tape to remove the No. 2 luggage compartment door name plate.
      NOTE:

      Be careful not to damage the vehicle body.

  3. REMOVE NO. 4 BACK DOOR NAME PLATE
    1. Apply protective tape around the No. 4 back door name plate.

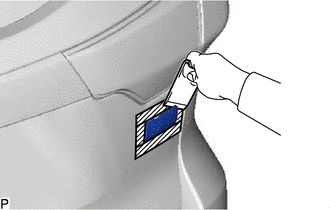

      GTY454100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover, separate the double-sided tape to remove the No. 4 back door name plate.
      NOTE:

      Be careful not to damage the vehicle body.

  4. REMOVE NO. 5 BACK DOOR NAME PLATE
    1. Apply protective tape around the No. 5 back door name plate.
      GTY426135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover, separate the double-sided tape to remove the No. 5 back door name plate.
      NOTE:

      Be careful not to damage the vehicle body.

  5. REMOVE DOOR NAME PLATE LH
    1. Apply protective tape around the door name plate LH.

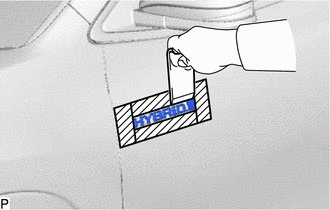

      GTY440732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover, separate the double-sided tape to remove the door name plate LH.
      NOTE:

      Be careful not to damage the vehicle body.

  6. REMOVE DOOR NAME PLATE RH
    1. Apply protective tape around the door name plate RH.

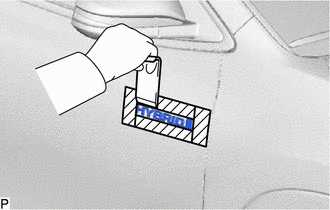

      GTY453516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover, separate the double-sided tape to remove the door name plate RH.
      NOTE:

      Be careful not to damage the vehicle body.
