Name Plate Components Overview [02/2014 - 11/2016]

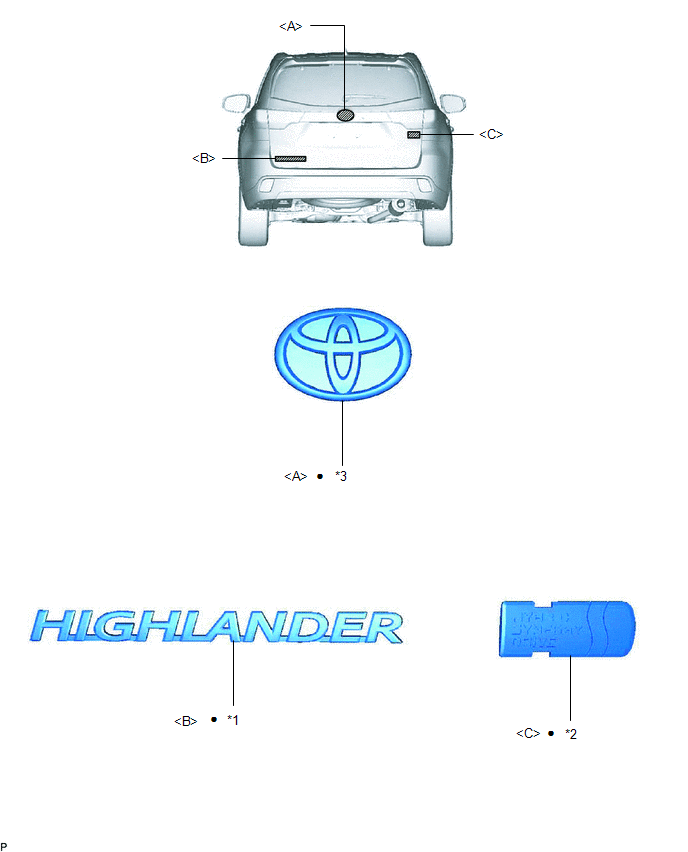

Fig 1: Name Plate Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE	*2	NO. 4 BACK DOOR NAME PLATE
*3	SYMBOL EMBLEM	-	-
•	Non-reusable part	-	-

Fig 2: Name Plate Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 5 BACK DOOR NAME PLATE	-	-
•	Non-reusable part	-	-

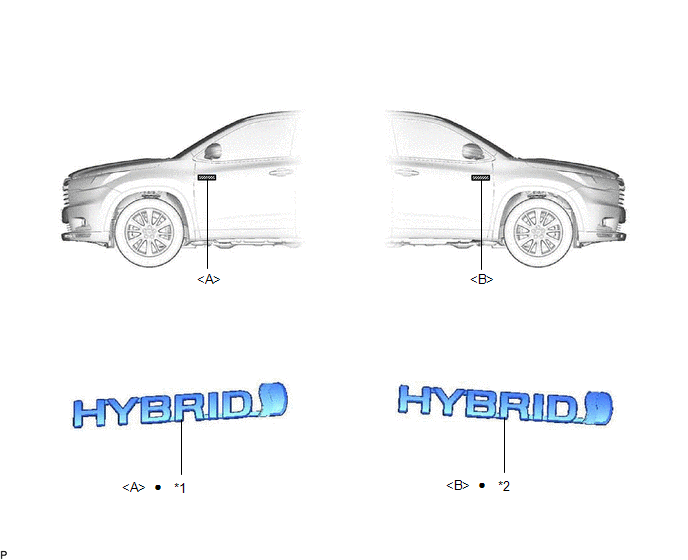

Fig 3: Name Plate Replacement Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DOOR NAME PLATE LH	*2	DOOR NAME PLATE RH
•	Non-reusable part	-	-
