Parts Location [11/2016 - ]: Illustration

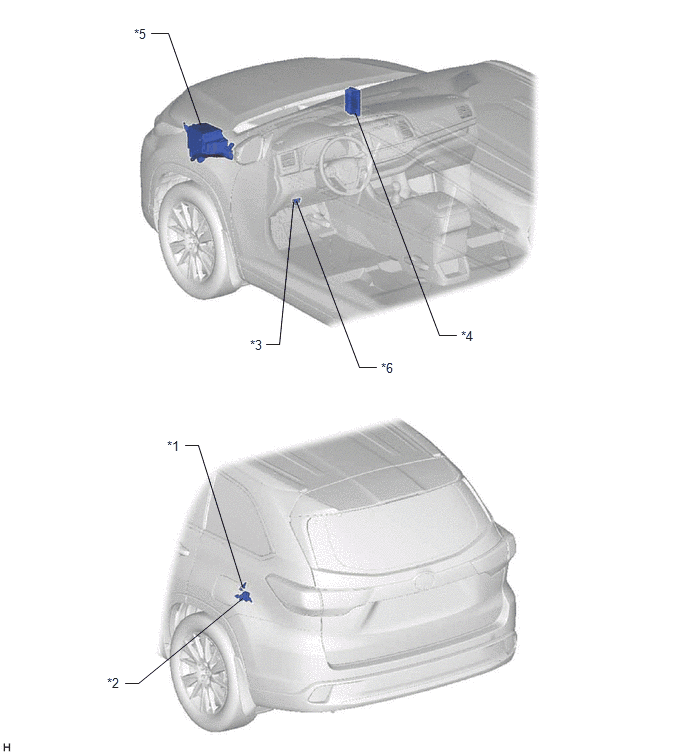

Fig 1: Fuel Lid Opener System Replacement Components (11/2016 - )

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL LID COURTESY SWITCH	*2	FUEL LID LOCK WITH MOTOR ASSEMBLY
*3	FUEL LID OPENER SWITCH	*4	ECM
*5	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - FUEL PMP FUSE - FUEL OPN FUSE - FUEL OPN RELAY	*6	DLC3
