Parts Location [02/2014 - 11/2016]: Illustration

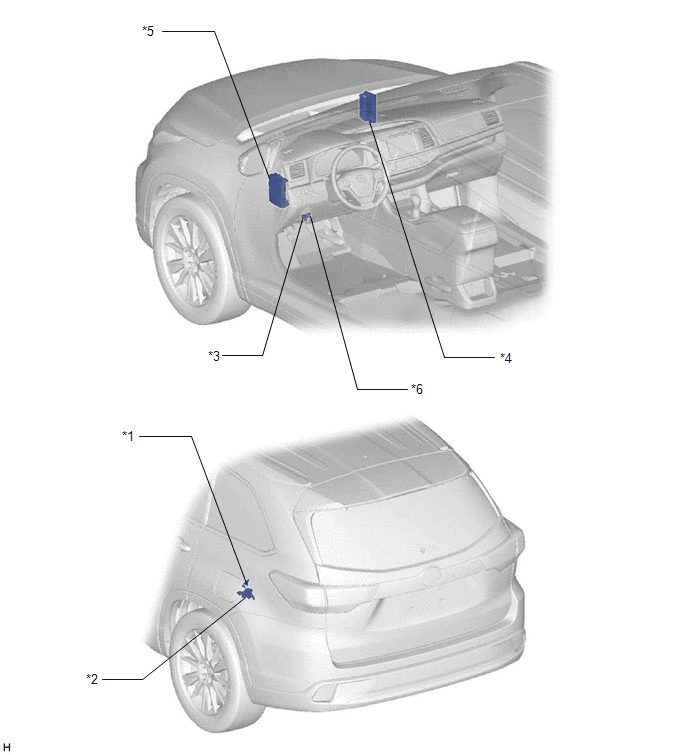

Fig 1: Fuel Lid Opener System Replacement Components (02/2014 - 11/2016)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL LID COURTESY SWITCH	*2	FUEL LID LOCK WITH MOTOR ASSEMBLY
*3	FUEL LID OPENER SWITCH	*4	ECM
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOOR BACK FUSE	*6	DLC3
