Parts Location [02/2014 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

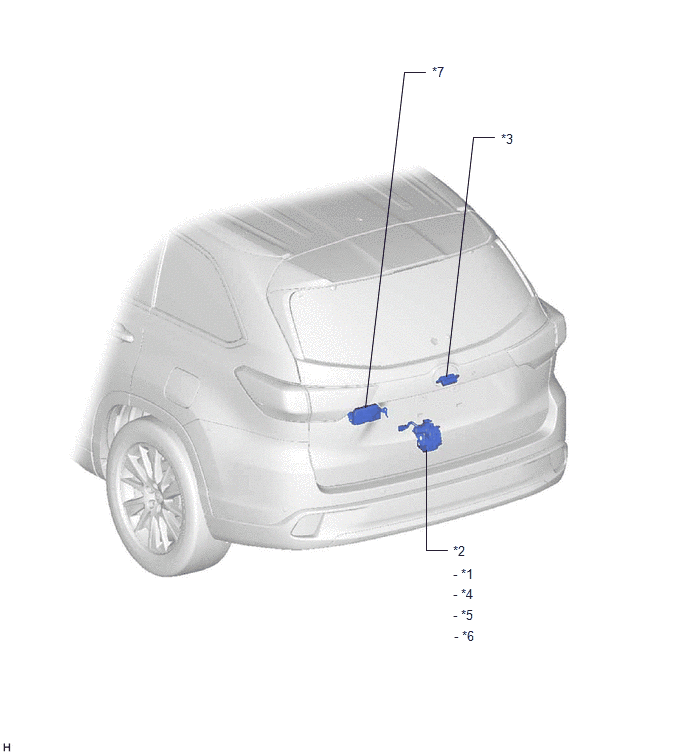

*1	BACK DOOR COURTESY SWITCH	*2	BACK DOOR LOCK ASSEMBLY
*3	BACK DOOR OPENER SWITCH ASSEMBLY	*4	BACK DOOR LOCK MOTOR
*5	LATCH SWITCH	*6	SECTOR SWITCH
*7	MULTIPLEX NETWORK DOOR ECU	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

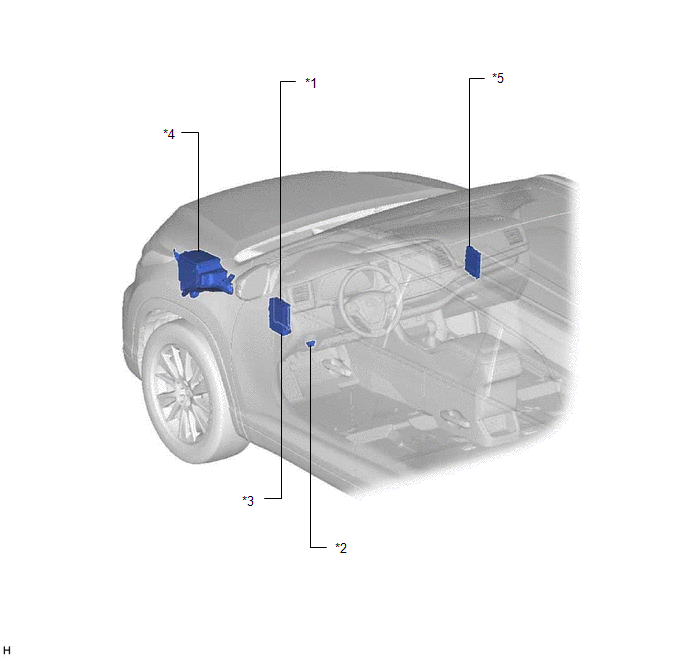

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	DLC3
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE	*4	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - MPX-B NO. 1 FUSE - PBD FUSE
*5	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	-	-
