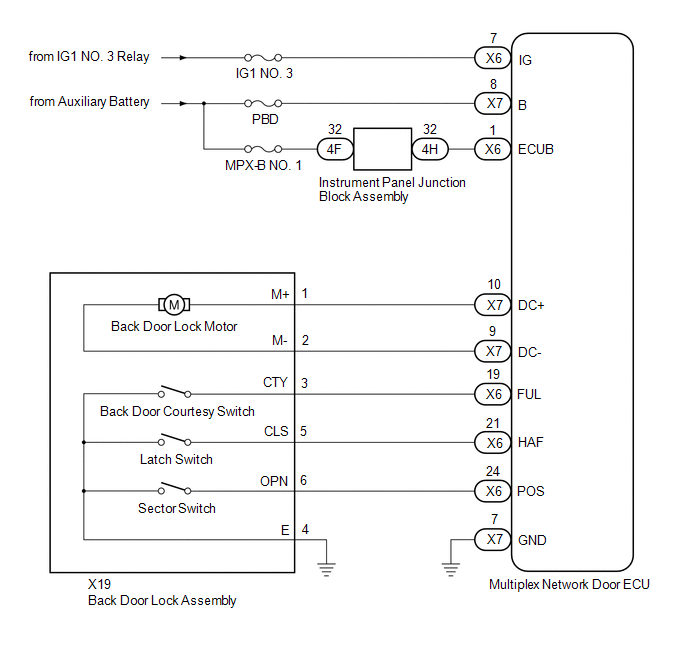

DTC B2251: Back Door Closer Switch Malfunction [02/2014 - ]: Wiring Diagram

GTY434688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
